Product Categories

AHRS stands for Attitude and Heading Reference System. It is a device that combines information from various sensors (such as accelerometers, gyroscopes, and magnetometers) to determine the orientation of an object in three-dimensional space. AHRS systems are commonly used in aviation, robotics, and other applications where precise orientation information is needed. They are particularly useful in environments where traditional methods of orientation determination, such as using a horizon or celestial objects, are not possible or practical. AHRS systems provide a stable, reliable, and accurate reference for determining the attitude and heading of an object, and can be used to control the orientation of the object or to provide feedback to the user.

AHRS480 Attitude and Heading Reference System

AHRS480 Attitude and Heading Reference System

– Attitude Angle Accuracy: Yaw: static 0.3°, dynamic 0.5°

Pitch and Roll: static 0.1°, dynamic 0.3°

– Attitude Angle Range: Yaw ±180°, Pitch ±90°, Roll ±180°

– Range: Gyro ±450°/s, Acc ±16g, Magnetic ±2.5gauss

– UART or SPI, SPI Output Rate up to 2000Hz

– Wide Working Temperature: -40°C～+85°C

– High Stability & Reliability, High Survivability

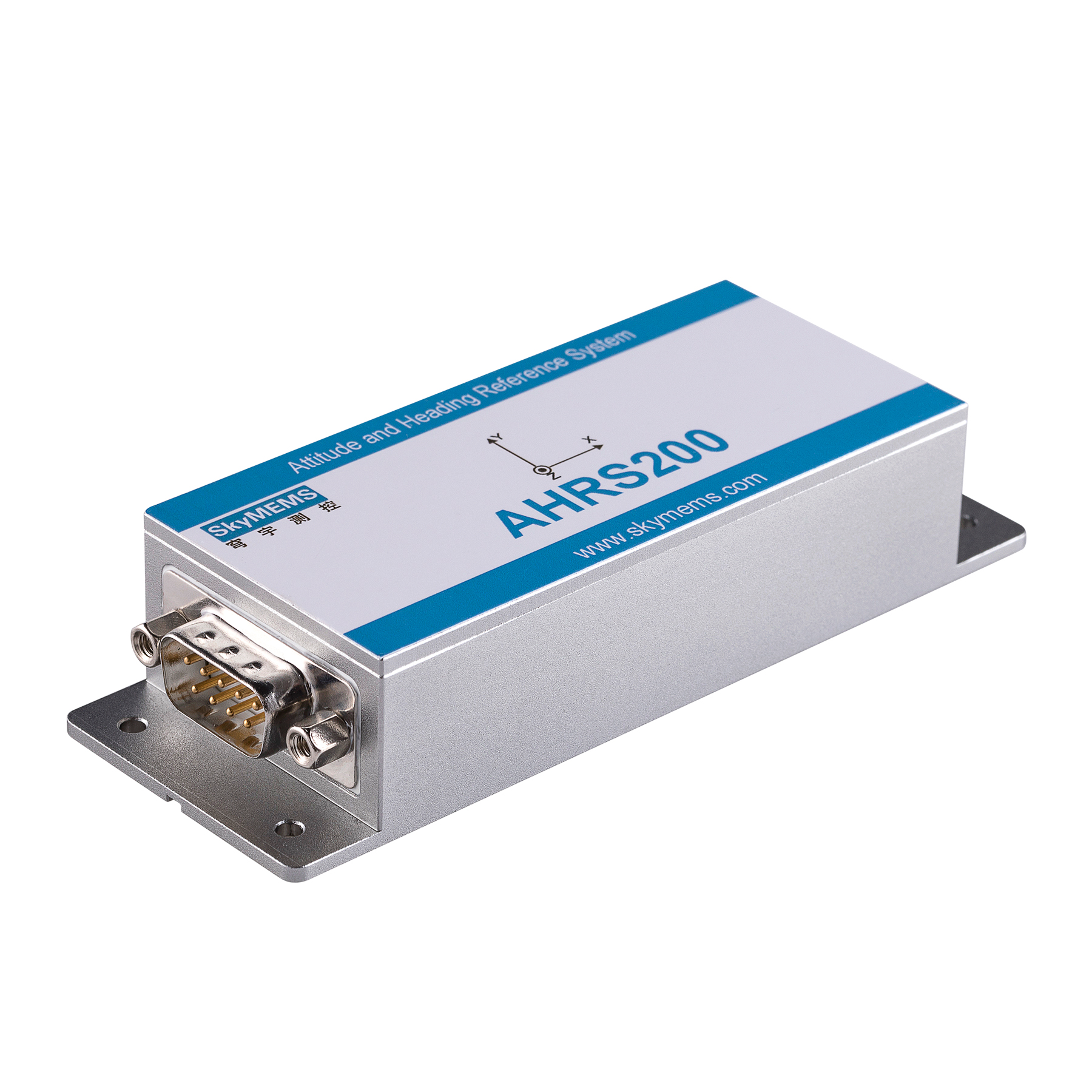

AHRS200 1

AHRS200

standalone compact, high accuracy AHRS, utilizes the MEMS-based inertial sensors, widely applied in UAV, unmanned vehicle control, ROV, etc.

Output: Pitch, Roll, Yaw, Acceleration, Angular Rate
Heading Accuracy: 0.5°
Attitude Accuracy: Static < ±0.1°, Dynamic< ±0.3°
Range: Gyro ±500°/s / ±900°/s, Acc ±10g/ ±20g/ ±40g
Wide Input Power Range: 6~15VDC
Military Level Casing, High Survivability
Compact and Lightweight: 106.7 x 38.1 x 22.3mm, 100grams
Wide Working Temperature: -40°C~+85°C

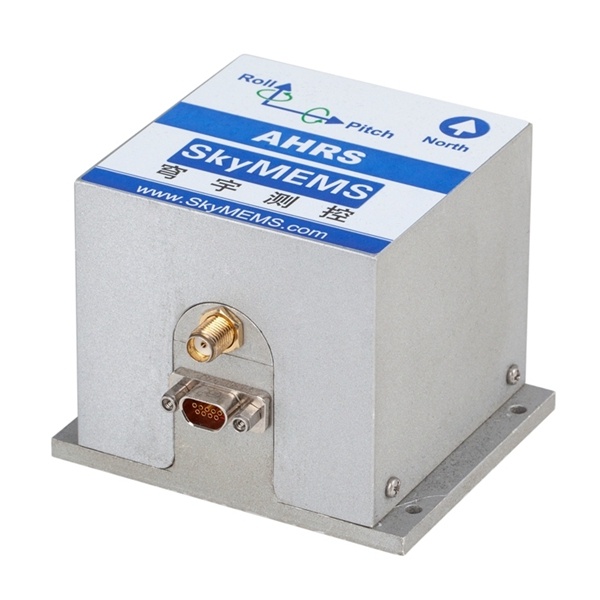

AHRS1000 Attitude and Heading Reference System

AHRS1000 Attitude and Heading Reference System

– 3-axis Attitude Angle Accuracy: 0.5° (static), 2° (dynamic)

– Attitude Angle Range: yaw ±180°, pitch ±90°, roll ±180°

– Range: Acc ±5g, Gyro ±300°/s, Magnetic ±6gauss

– Bandwidth: 200Hz, Sampling Rate: 5000 samples/s

– Data Storage Capacity: 8GB

– Wide Working Temperature: -40°C～+85°C

– High Stability & Reliability, High Survivability
