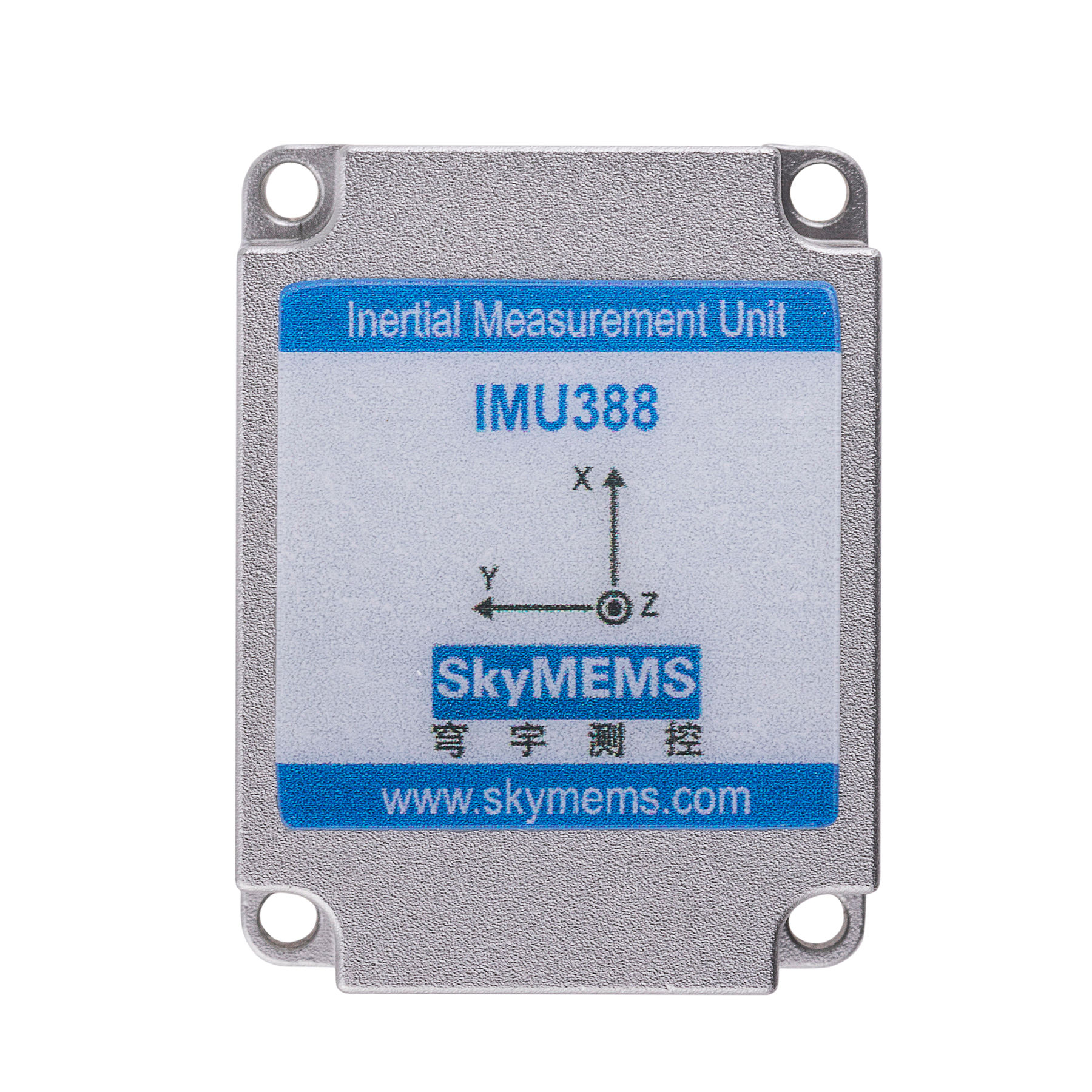

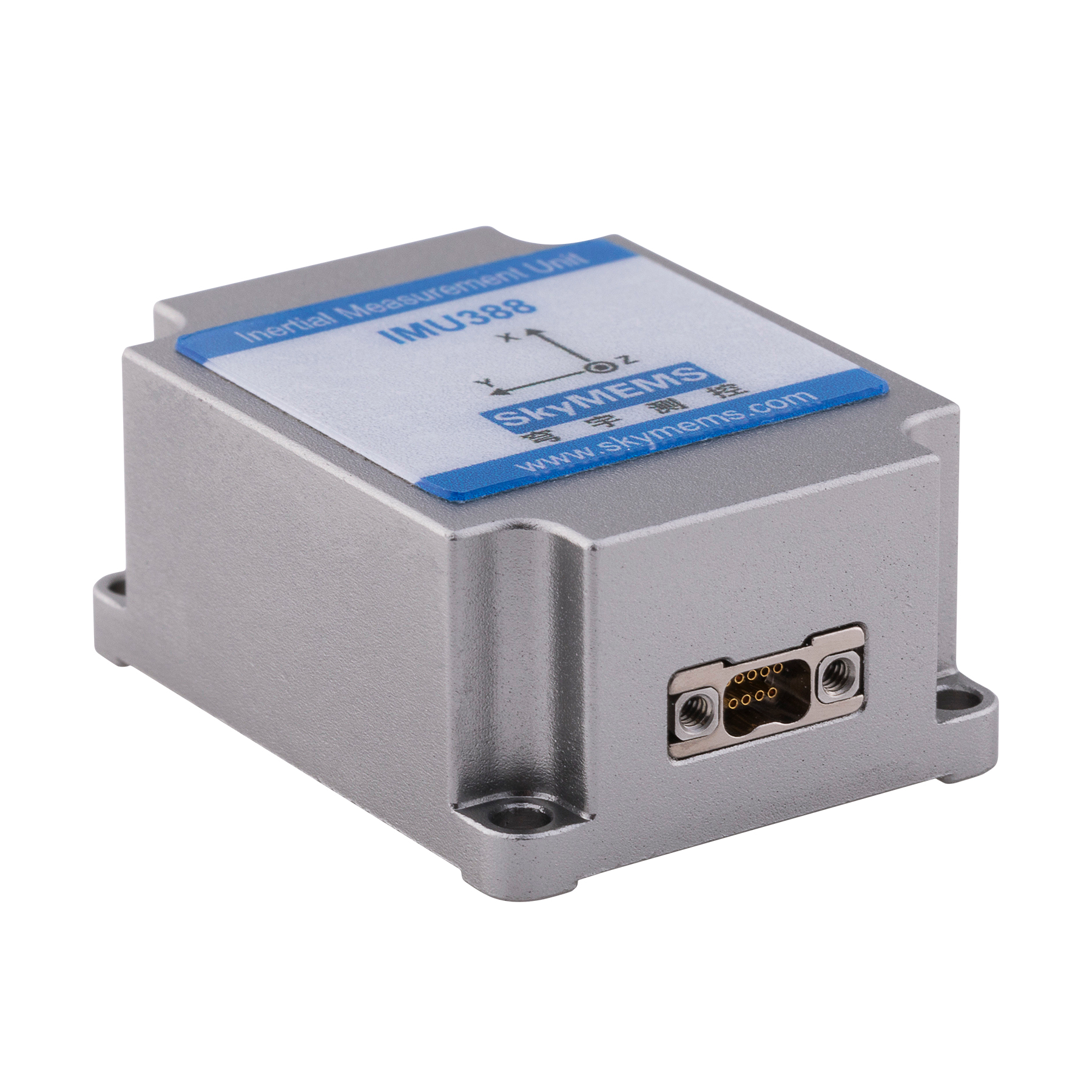

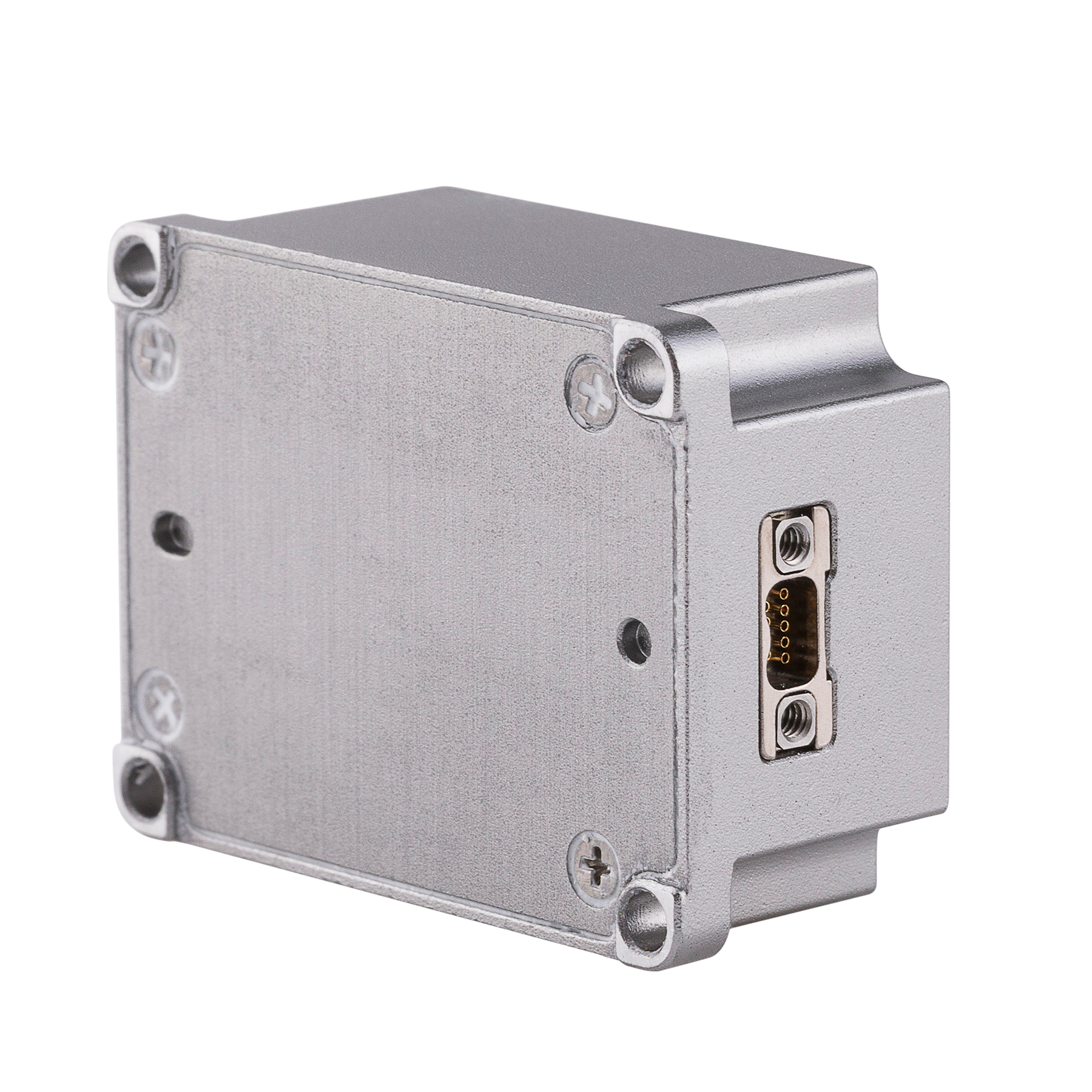

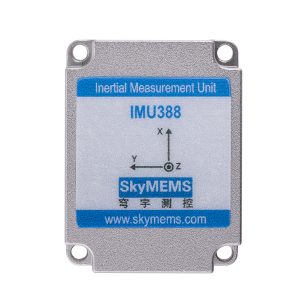

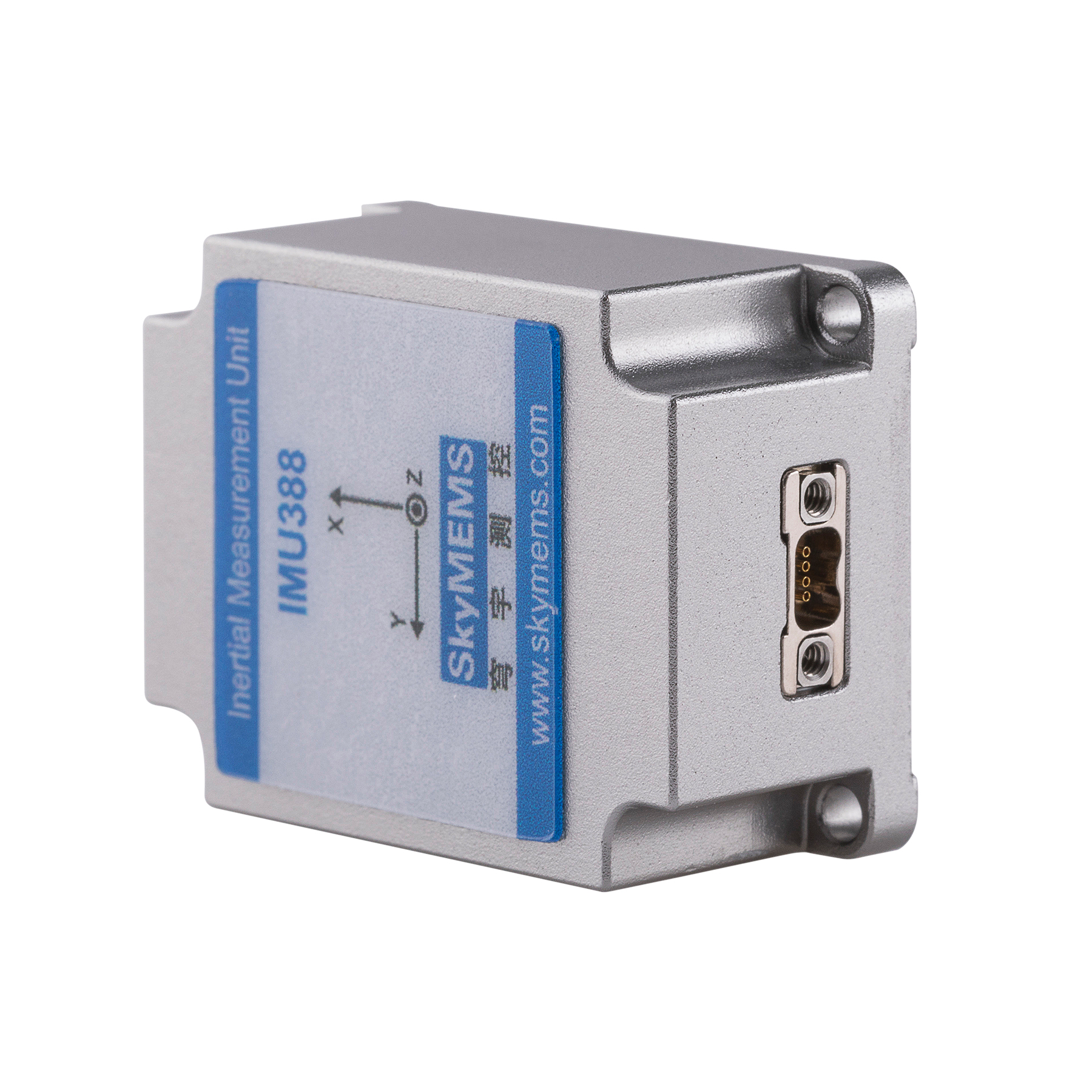

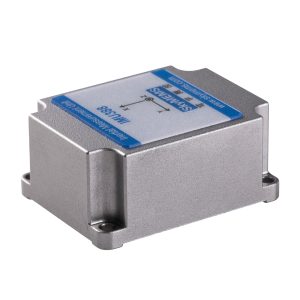

IMU388 is a high performance tactical grade MEMS Inertial Measurement Unit, which enjoys high accuracy: MEMS gyroscope is 0.6°/h bias instability (Allan) and MEMS accelerometer is 30µg bias instability (Allan), and its MEMS gyroscope range can be optional in ±250°/s~ ±4000°/s, the accelerometer range is ±40g, and it can output precise 3-axis outputs of angular rate and 3-axis acceleration data.
IMU388 adopts latest MEMS technology and advanced MEMS components, and it has been produced in bulk, which reduces the cost deeply. IMU388 can output precise measurement data in harsh environment, and it has been widely applied in unmanned aircraft, unmanned surface vessel, platform stabilization, industrial robotics, etc., and IMU388 is easily integrated into the variety of architectures that these applications present. The extremely small size, light weight, and low power make the IMU388 ideal for most applications.
Technical Specifications
Parameter
Test Condition
Min.
Typical
Max.
Unit
Gyroscopes
Range①
±500
°/s
Bias Instability
Allan variance
0.6
°/h
10s average(-40~+85°C, fixed temp.)
2
°/h
Bias Repeatability
1.8
°/h
Random Walk
0.1
°/√h
Bais
Bias change at full temp. range②
±0.04
°/s
Bias change in vibration conditions③
6
°/h
Non-linearity
100
ppm
Bandwidth
200
Hz
Accelerometers
Range①
±40
g
Bias Instability
Allan variance
50
ug
10s average(-40~+85°C, fixed temp.)
100
ug
Bias Repeatability
100
ug
Random Walk
0.01
m/s/√h
Non-linearity
100
ppm
Bandwidth
200
Hz
Interface④(RS422)
Baud Rate
115200
230400
921600
bps
Output Rate
250
500
2000
Hz
Reliability
MTBF
20000 h
Continuous Working Time
120 h
Electrical Features
Supply Voltage
3.6 ~ 36 V
Power Consumption
< 0.2W
Ripple Wave
100mV (P-P)
Environment Conditions
Operating Temperature
-40°C ~ 85°C
Storage Temperature
-55°C ~ 105°C
Vibration Resistance
20-2000Hz, 6.06g
Shock Resistance
1000g, 0.5ms
Physical Parameter
Size
33.5 × 25.5 × 15 mm
Weight
30grams
Connector
9pins J63A
Note:
①：The range of Gyroscopes and Accelerometers can be configured in our factory.
②：The bias value is calculated based on the whole temperature change period, the temperature
changing rate<=2°C/minute, temperature range:-40~+85°C;
③：(before vibration average value +after vibration average value) /2-during vibration average value,
the vibration conditions are 6.06g, 20~2000Hz
④：The baud rate and output rate can be configured in our factory.
Typical Application
– Airborne Optoelectronic Pod
– Target Drone
– Armored Personnel Carrier
– Rain-Seeding Rocket
Product Advantages
Why Selecting IMU388 Inertial Measurement Unit?
IMU388 Inertial Measurement Unit is designed and produced by SkyMEMS, it enjoys high performance and accuracy, extra large range, and high reliability with competitive price. It is a tactical inertial measurement unit sensor, which has the main following advantages:
1. Extra Large Range, High Accuracy, High Performance and Powerful Functions
IMU388 Inertial Measurement Unit is a precision 6 DoF MEMS inertial measurement unit, which enjoys excellent technical advantages:
Strict Factory Calibration, Full Temp. Compensation
High Bandwidth (Typical): 200Hz, RS422 Interface
Proven Reliability, Dependability and Ruggedness
Compact Size: 33.5×25.5×15 mm3
Working Temperature: -40~+85°C
IMU388 Inertial Measurement Unit adopts big brand components, high-class glue encapsulation, advanced production craft, and fully calibrated, which assured that our products have real actual precise and perfect performance.

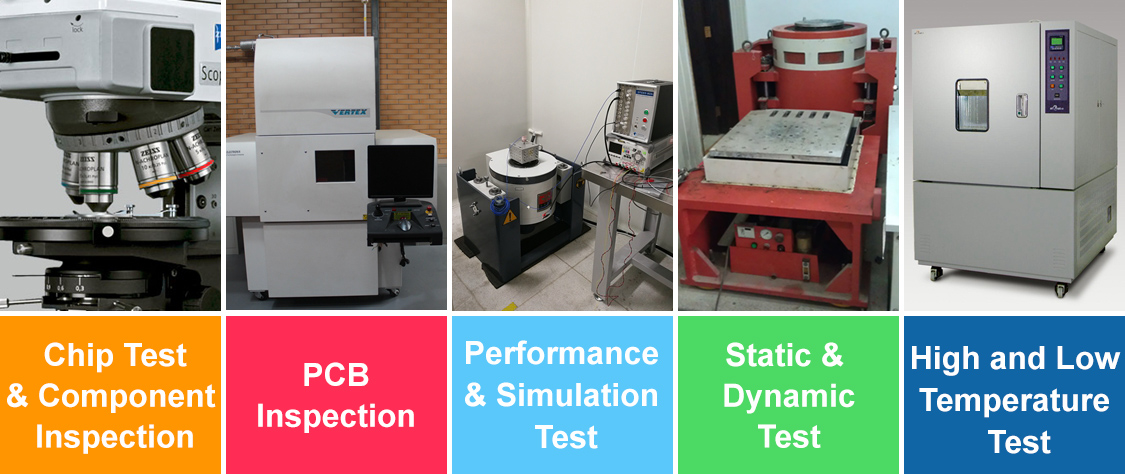

2. Aerospace Level Reliability, 12-step Strictest Quality Control
We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.
3. Competitive Price, ODM supported
With strict cost control and massive production, we can provide the most competitive cost-effective prices, and we have abundant ODM service experience for customers around the world, that is why we can build up long term win-win cooperation with our customers.
4. Successful Applications in many Fields, 200+ Customers are Using
We are continuously focusing on MEMS measurement & control technologies. IMU388 has been widely used in tactical UAS Navigation & Control, Seeker, Platform Stabilization, etc. and now more than 200 customers are using our tactical IMU around the world.
5. World-class Production Line, Fast Delivery
We have the world class production line to assure that the production procedures are scientific, precise, and normative, which also can assure our products to be fast delivered.
