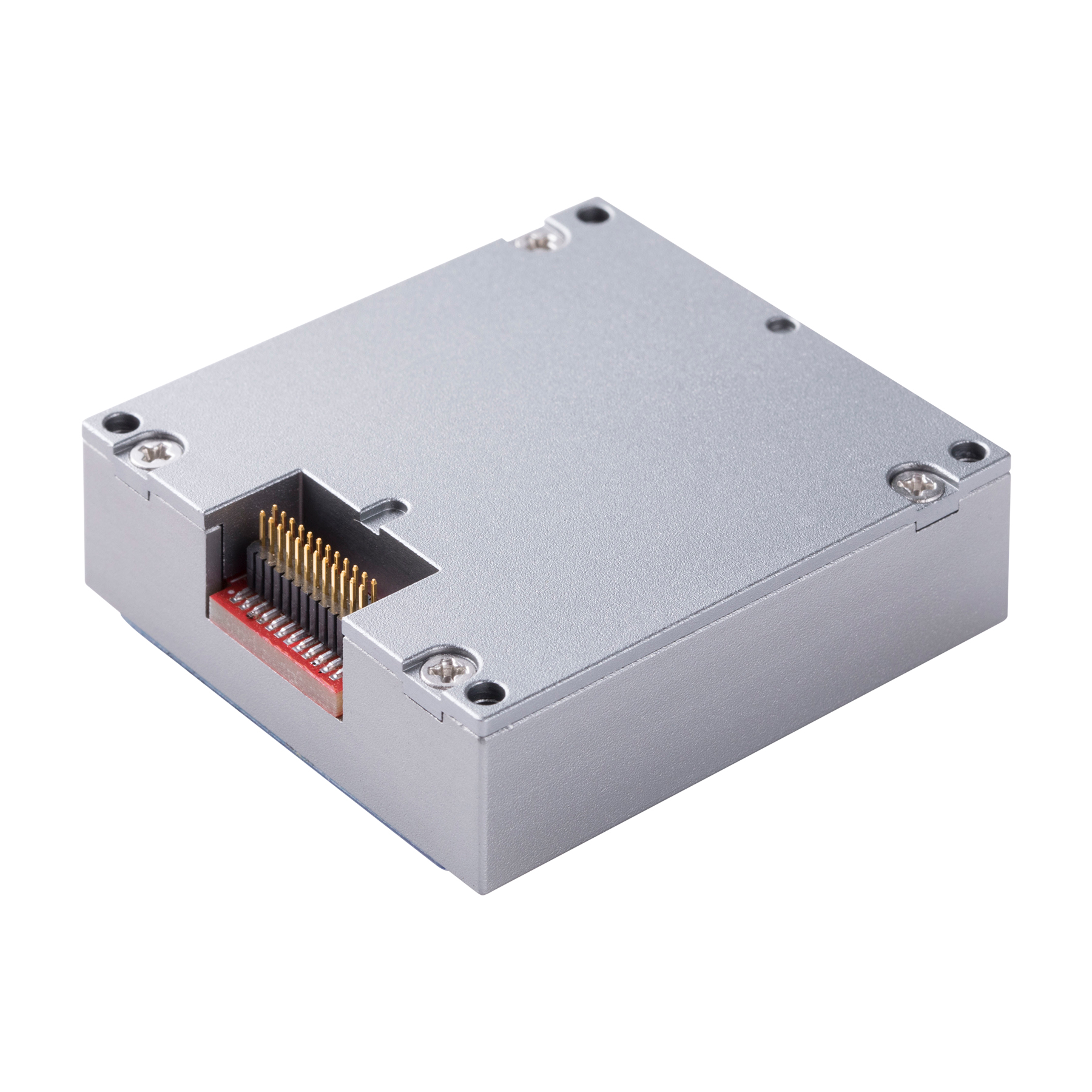

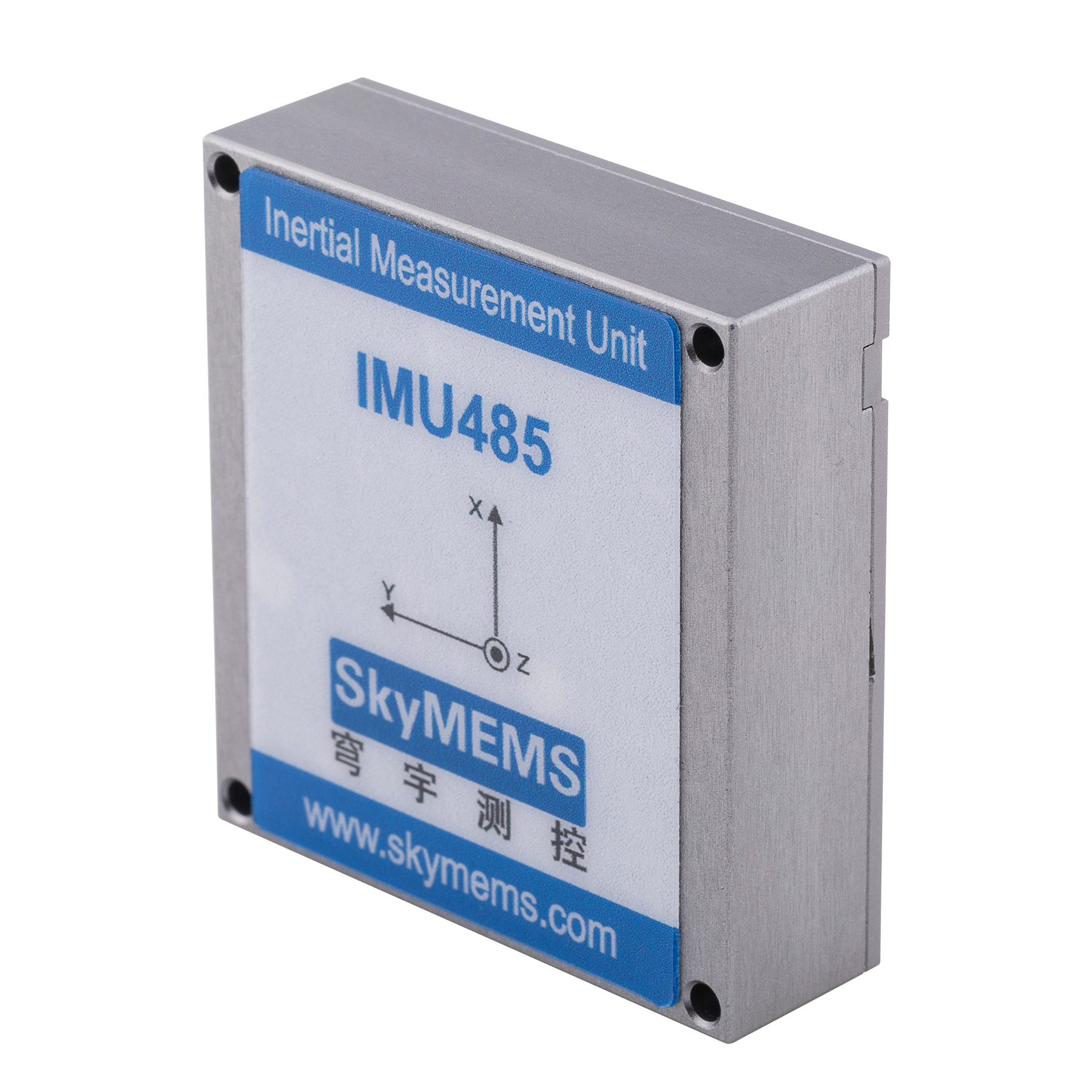

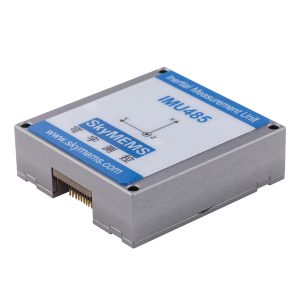

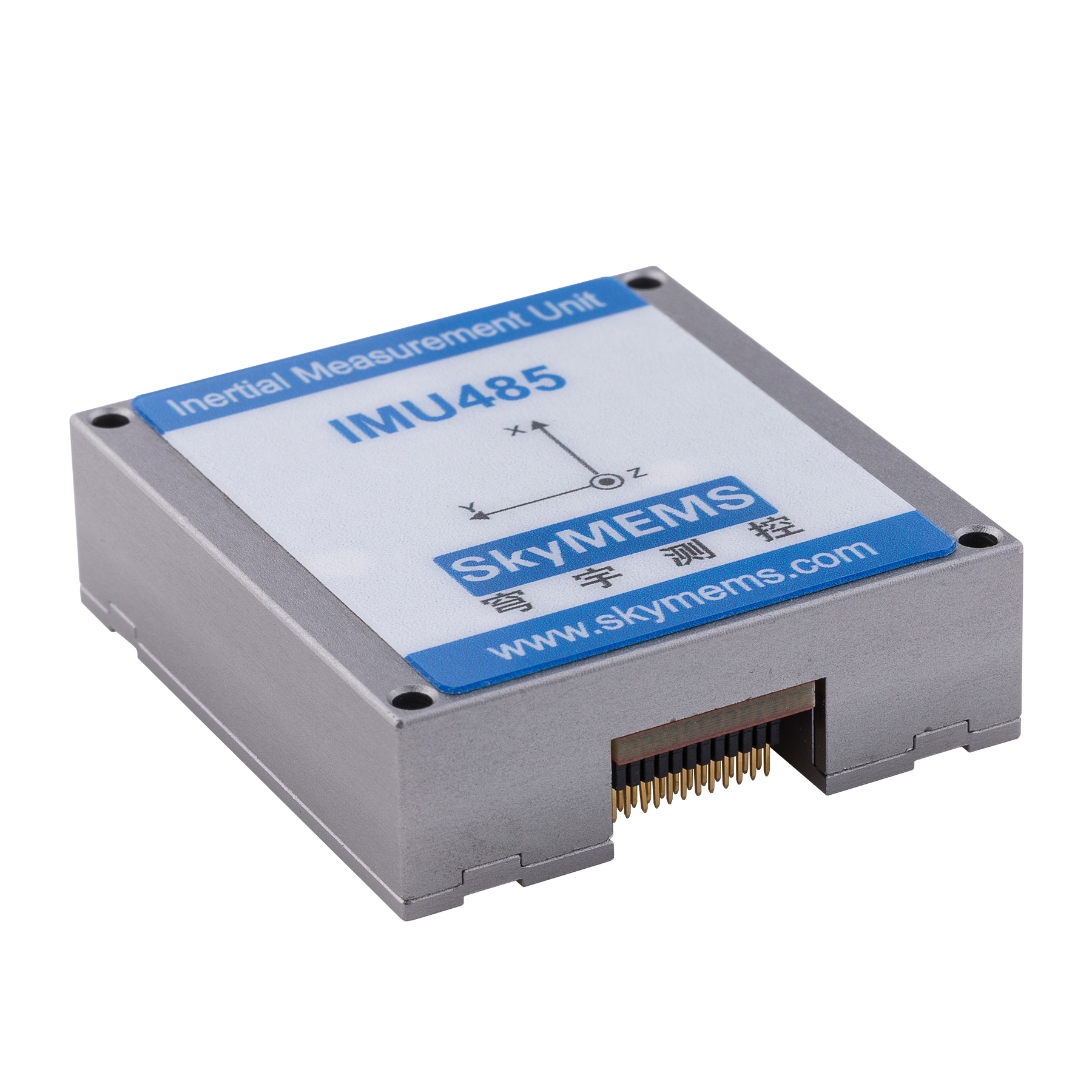

IMU485 10DoF MEMS IMU

Precision 10DoF IMU, Pin to Pin Replace ADIS16485

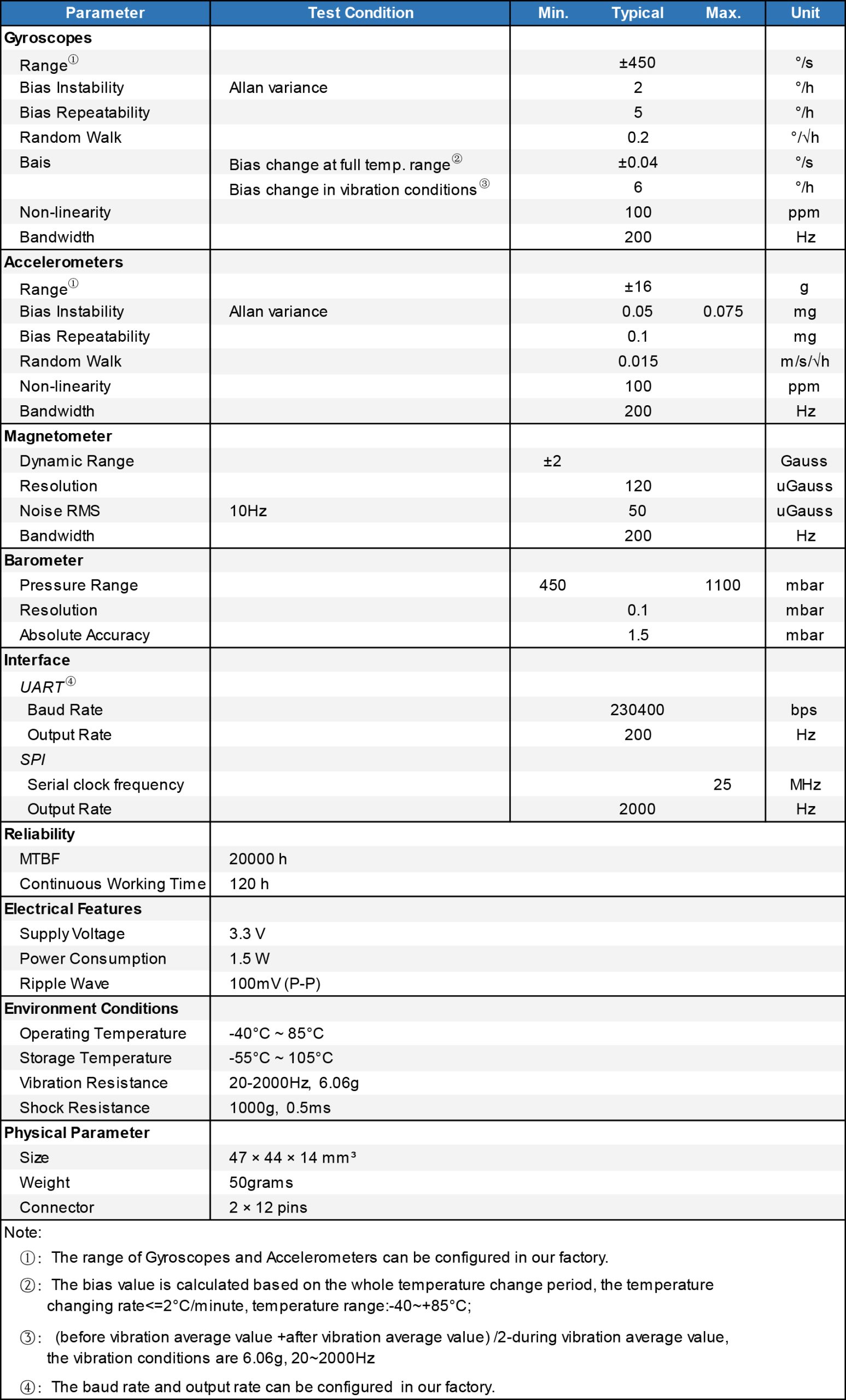

Range (Typical) : Gyro ±450°/s, Accel ±16g
Bias Instability (Allan ): Gyro: 2 °/h, Accel 35µg
Full Temperature Range Accuracy Assured
High Bandwidth(Typical) : 200Hz
UART and SPI, SPI Output Rate up to 2000Hz
Small Size & Light Weight: 47 × 44 × 14 mm, 50g
Working Temperature: -40~+85°C

Product Categories

Brief Introduction

IMU485 is a high performance MEMS Inertial Measurement Unit, which MEMS gyroscope enjoys 2°/h (Allan) bias instability and MEMS accelerometer enjoys 35µg (Allan) bias instability, and it can output precise 3 axis outputs of angular rate, 3 axis acceleration data, 3 axis magnetometer data, and barometer data, etc.

IMU485 adopts latest MEMS technology and advanced MEMS components, and IMU485 has been produced in bulk, which reduces the cost deeply. IMU485 enjoys excellent measurement performance, small size, light weight, and high reliability and robustness, it can output precise measurement data in harsh environment, and it has been widely applied in tactical unmanned aircraft, surface vehicle, platform stabilization, industrial robotics, etc.
