leading industry vertical gyro (dynamic inclinometer), widely applied in platform and vehicle leveling, excavators, mobile cranes, antenna stabilization, etc.
Precision Acceleration, Angular Rate, Temperature Output

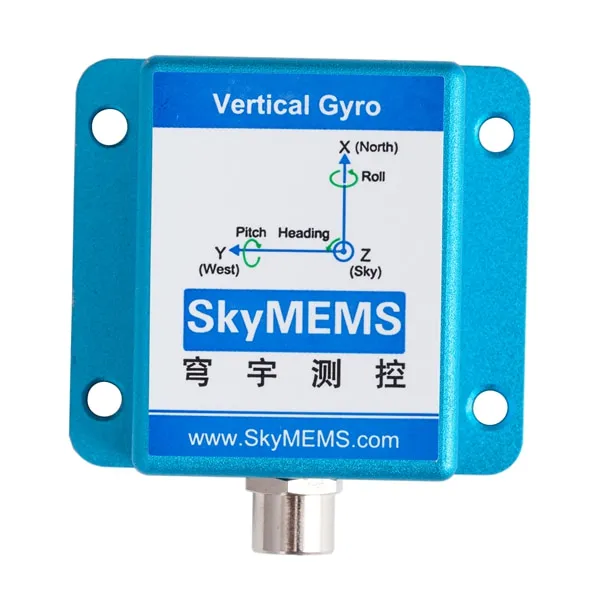

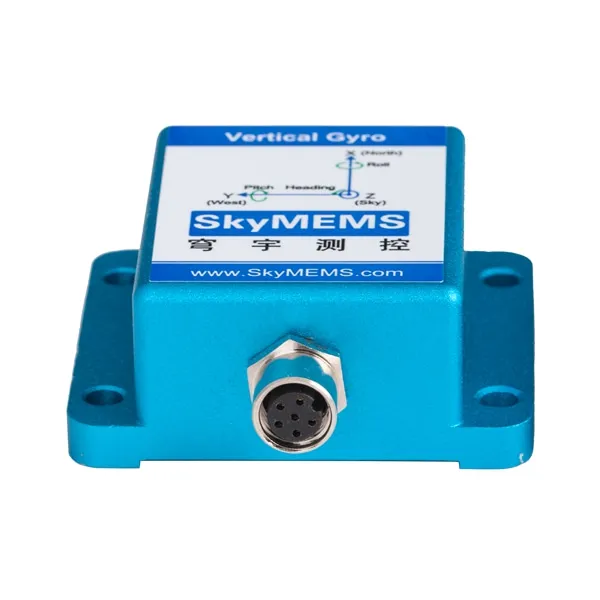

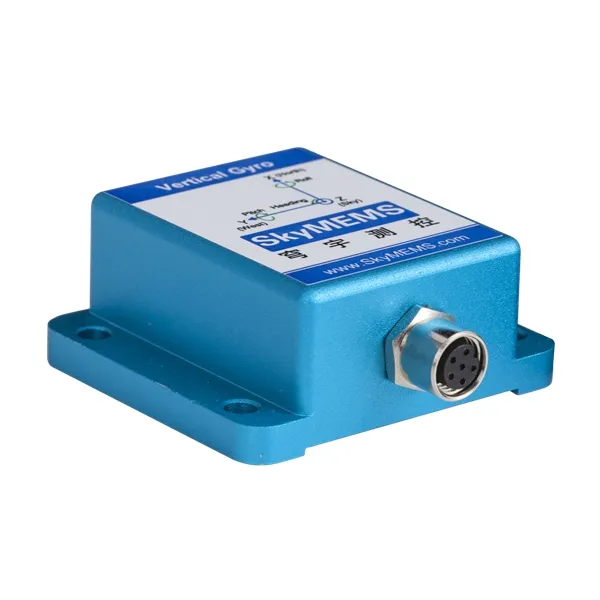

VG100 Vertical Gyro (also name as dynamic inclinometer) is a leading industry dynamic inclinometer, which is composed of 3-axis MEMS accelerometers and 3-axis MEMS gyros, and it can provide accurate tile angle measurement even in harsh operating environments of high shock, acceleration, and vibration.
VG100 Vertical Gyro provides a complete dynamic measurement solution in a miniature environmentally protected package. The VG100 offers a highly-effective solution for cost-sensitive demanding applications. It adopts advanced MEMS components, which reduces the cost deeply. The system enjoys small size and light weight, and excellent long-term performance and reliability, it has been widely applied in platform and vehicle leveling, excavators, mobile cranes, mobile antenna stabilization, mining vehicles, skid-steers, robotics control, etc.
it is diverging with time, diverging speed is 0.5°/hour
Range: Roll, Pitch
±180°(roll), ±90°(pitch)
Static Accuracy
< 0.3°
1σ
Dynamic Accuracy
< 0.5°
1σ
Resolution
0.01°
Gyro
Range: Roll, Pitch, Heading
±500°/s
default setting
±250°/s, ±1000°/s
optional
Bias Stability
6°/h
Allan Variance
36°/h
1σ, 1s smooth
Bias Repeatability
30°/h
test three times repeatedly, 1σ
Non-linearity
0.05%FS
Angle Random Walk
0.6°/√hr
Allen Variance
Bias Error Over Full Temperature Range
0.3°/s
-40~85°C
Bandwidth
12~523Hz
Sampling Rate
100~2000Hz
Range: X, Y, Z
±4g
default
±2g, ±8g, ±16g
optional
Bias Stability
0.03mg
Allan variance
0.15mg
1σ, 1s smooth
Bias Repeatability
0.35mg
test three times repeatedly, 1σ
Non-linearity
0.5%FS
Noise Density
51μg/√Hz
@10g
Bias Error Over Full Temperature
5mg
-40~+85°C
Bandwidth
5~684Hz (353Hz@Z axis)
Sample Rating
12.5~1600Hz
Environment Condition
Working Temperature
-40~+85°C
Protection Level
IP67
MTBF
≥25000hours
Power Supply
Input Voltage
9~36VDC
Power Consumption
<0.5W
Default Interface
RS232
RS485 optional
Baud rate
115200
230400, 460800, 921600 settable
Data Update Rate
100Hz
Max 200Hz (should select the corresponding baud rate)
Dimension
50mm*45mm*21mm
Weight
around 70 grams
Connector
5 pin mini aviation connector
Location Hole
4 holes
Typical Application
VG100 MEMS vertical gyro is a high performance 6 DoF MEMS-based inertial sensors, which has been widely used in the following fields:
– Platform and Vehicle Leveling
– Excavators
– Mobile Cranes
– Mobile Antenna Stabilization
– Mining vehicles
– Skid-steers
– Robotics control
VG100 MEMS vertical gyro widely used in excavators
Excavators work in a variety of harsh environments. It is important that these machines are equipped with the proper device for safe and efficient operating.
Using several vertical gyros (dynamic inclinometers) on excavators provides a range of data. This information can be used for Active Rollover Protection systems (ARP) to protect operators and prevent vehicle rollover. The data can also be used to optimize Measuring Excavation Depth, and Chassis Leveling.
VG100 vertical gyros (dynamic inclinometers) have been widely used in heavy machinery that ensure optimal operating. More than tens of thousands of SkyMEMS vertical gyros have been used in Chinese excavators.
VG100 MEMS vertical gyro widely used in mobile cranes
VG100 vertical gyro (dynamic inclinometer) outputs a clean measurement signal and can be used reliably on mobile equipment such as construction machinery, mining equipment, agricultural machinery, cranes, and anywhere else where sudden movements, shocks and vibrations are likely to be encountered.
And trucks with long boom extensions such as fire trucks or concrete pumps have to reach to high-rise buildings, often over large obstacles. SkyMEMS VG100 vertical gyro can be used to monitor the position of the boom arm or for base leveling. VG100 can provide accurate heading and attitude angles, and it can work in dynamic environment, which is widely used in mobile cranes.
VG100 MEMS vertical gyro widely used in mobile antenna stabilization
Users of geostationary satellite-based communication systems must calculate the angles needed to point their transmitting antennas toward orbiting satellites. The satellite appears to remain in one spot in the sky. Pointing a satellite antenna at a geostationary satellite is a matter of calculating the elevation and azimuth for the ground station antenna so that it points directly at the orbital location of the satellite. To realize demands on satellite automatically and quickly, the vertical gyros can be used in vehicle-mounted antenna servo system
SkyMEMS VG100 vertical gyro can sense both direction and pitch and roll at high accuracy in dynamic environment, and it has low power consumption, and can work in harsh environment. VG100 vertical gyro has been widely used in mobile antenna pointing.
Product Advantages
Why Selecting VG100 vertical gyroscope in your application?
VG100 MEMS vertical gyro is designed and produced by SkyMEMS, it enjoys high performance and accuracy, and high reliability with competitive price.It is a popular vertical gyroscope in the market, which has the main following advantages:
High Accuracy, High Performance and Powerful Functions
VG100 MEMS vertical gyro is a precision 6 DoF MEMS Vertical Gyro, it enjoys excellent technical advantages:
– Precision Acceleration, Angular Rate, Temperature Output
– Compact and Lightweight: 50 x 45 x 21mm, 70grams
– Wide Working Temperature: -40°C~+85°C
VG100 MEMS vertical gyro adopts original big brand components, high-class glue encapsulation, advanced production craft, and fully calibrated, which assured that our products have real actual precise and perfect performance.
Aerospace Level Reliability, 12-step Strictest Quality Control
We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.
Competitive Price, ODM supported
With strict cost control and massive production, we can provide the most competitive cost-effective prices, and we have abundant ODM service experience for customers around the world, that is why we can build up long term win-win cooperation with our customers.
Successful Applications in Tens of Fields, 1000+ Customers are Using
We are continuously focusing on MEMS measurement & control technologies, and have developed the most advanced Vertical Gyro VG100. and VG100 vertical gyroscope has been widely used in platform and vehicle leveling, excavators, mobile cranes, mobile antenna stabilization, mining vehicles, skid-steers, robotics control, etc., and now more than 1000 customers are using our vertical gyro around the world.
World-class Production Line, Fast Delivery
We have the world class production line to assure that the production procedures are scientific, precise, and normative, which also can assure our products to be fast delivered.
Service with Heart, Professional Technical Support
We have the professional technical support engineer team, which can provide 24-hour technical support and excellent after-sale service.
Serving customers with heart is the principle of SkyMEMS, Customer demand is the fundamental driving force of our development.
We treat our customers with heart, customers’ satisfaction is the direction and target of SkyMEMS. Through continuously technology innovation and service upgrading, we will realize win-win cooperation with customers.
FAQ
Q: What is the difference between the static inclinometers and dynamic inclinometers?
A: The static inclinometers are equipped with a 2D MEMS accelerometer serving as a sensor cell. This type of inclinometer allows high precision to be achieved in a static system, or when the machine only performs slow movements.
And the dynamic inclinometers (also called as vertical gyros) are equipped with a 3D MEMS accelerometer and a 3D MEMS gyroscope. An intelligent algorithm combines the signals from the accelerometer and the gyroscope to eliminate the effect of accelerations (e.g. due to rapid movement of equipment), vibrations and shocks.
VG100 vertical gyros belong to dynamic inclinometers, which can provide high accuracy tilt angle in harsh operating environments of high shock, acceleration, and vibration.
Q: What is Vertical Reference Gyro?
A: Vertical Gyroscope provides 3-axis angular rate, 3-axis acceleration and attitude output, it is used to stabilize or control ships and submersibles, to instrument automobiles, to stabilize antennas and many other applications. This vertical reference is especially suited for applications where there is limited bank and elevation such as ships, underwater vehicles, land vehicles, and camera stabilization. This is because the vertical reference uses a linear coordinate system.
Q: How about the delivery time?
A: for our standard model, if we have them in stock, only need 2~3days to re-test before shipping, if it is out of stock, then need around 2 weeks to arrange the production and tests. For the ODM electronic product, if needing to modify the structure, it will need around 3~4 weeks to arrange the production and tests.
