In an increasingly dynamic and risk-prone world, the need for reliable and accurate vibration monitoring has become more urgent than ever. Whether for earthquake early warning, structural safety assessment, or high-precision motion detection, the ability to sense weak vibrations with high fidelity is a technological imperative. At the heart of these systems lies a compact yet powerful device—the seismic accelerometer.
Seismic accelerometers—particularly those developed using MEMS (Micro-Electro-Mechanical Systems) technology—are examined in depth, including their working principles, performance metrics, application areas, selection strategies, and future advancements. This guide serves as a valuable reference for system designers, researchers, and engineers focused on precision monitoring and vibration detection.

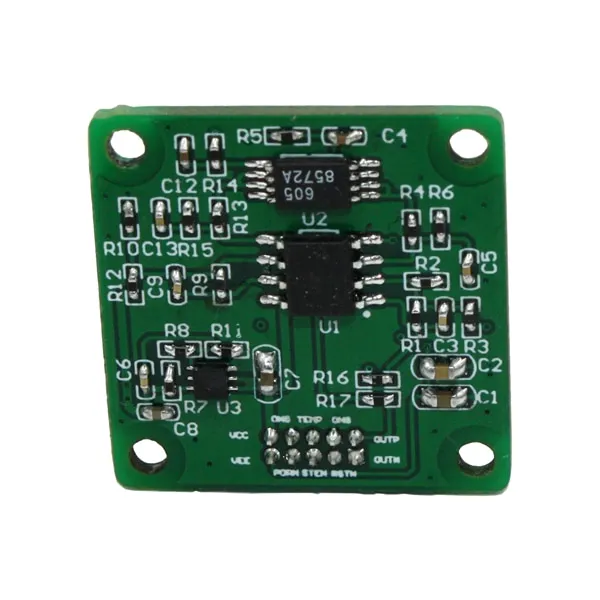

What Is a Seismic Accelerometer?
A seismic accelerometer is a highly sensitive device designed to measure acceleration changes—particularly those caused by seismic activity or very weak vibrations. Built using advanced MEMS microfabrication technology, it typically consists of components such as a proof mass, suspension beams, capacitive or piezoresistive sensing elements, and signal processing circuits.
When the sensor experiences motion due to ground vibration or structural movement, the proof mass shifts slightly, leading to measurable changes in capacitance or resistance. These changes are then converted into electrical signals that represent the amplitude and frequency of the vibration or seismic event.
Compared to conventional mechanical vibration sensors, MEMS-based seismic accelerometers offer several advantages:
-
Miniature Size: Easy to integrate into embedded systems.
-
High Sensitivity: Capable of detecting extremely small movements.
-
Fast Response: Ideal for detecting short, sharp vibration events.
-
Low Cost: Suitable for widespread deployment in sensor networks.
-
Low Power Consumption: Enables long-term monitoring in remote or inaccessible areas.
How Do Seismic Accelerometers Work?
Among various sensor types, MEMS capacitive accelerometers are the most widely used seismic accelerometers due to their sensitivity and integration capabilities. The core structure features a differential capacitor formed by fixed and movable electrodes. The movable electrode is linked to the proof mass, suspended on microbeams.
The sensing mechanism follows these steps:
-
Inertial Displacement: Ground motion or structure vibration causes the proof mass to move relative to the base.
-
Capacitance Variation: This motion alters the spacing between the capacitor plates, changing the capacitance.
-
Signal Generation: The resulting change in capacitance is converted into a voltage signal by a charge amplifier.
-
Digital Processing: The analog signal is digitized using an ADC and further processed using filters and algorithms.
To ensure long-term stability, seismic accelerometers are usually encapsulated in vacuum-sealed cavities to reduce air damping and improve their Q-factor. Temperature compensation circuits are often integrated to minimize the impact of environmental temperature fluctuations.
Key Performance Metrics of Seismic Accelerometers
When evaluating or selecting a seismic accelerometer, several critical specifications must be considered to ensure optimal performance:
1. Sensitivity
Expressed in mV/g or LSB/g, sensitivity describes how much the output changes per unit of acceleration. A high-sensitivity seismic accelerometer is essential for detecting micro-vibrations and early earthquake tremors.
2. Noise Density
This metric, typically expressed in µg/√Hz, represents the sensor’s inherent noise level. Lower noise density equates to better resolution of weak seismic signals.
3. Frequency Bandwidth
Bandwidth defines the sensor’s effective frequency response range. In seismic accelerometer applications, a bandwidth covering 1–500 Hz is usually sufficient to capture most earthquake and structural vibration frequencies.
4. Bias Stability
Bias drift refers to the long-term stability of the zero point. Low bias instability is crucial for long-term unattended deployments.
5. Axis Alignment and Consistency
For triaxial sensors, consistent response across all three axes ensures accurate vector measurement of motion.
6. Thermal Stability
Since many seismic accelerometer installations are exposed to environmental extremes, thermal stability ensures reliable performance under varying conditions.
Where Are Seismic Accelerometers Used?
Seismic accelerometers serve as indispensable tools across various industries and safety-critical systems. Their precise sensing abilities enable early warnings and deep insights into physical system behavior.
1. Earthquake Early Warning Systems
High-resolution seismic accelerometers are deployed in seismic zones to detect initial P-waves, the earliest signs of an earthquake. By triggering automatic alerts within seconds, these sensors can save lives and minimize damage.
2. Structural Health Monitoring (SHM)
Deployed on bridges, tunnels, skyscrapers, and dams, seismic accelerometers monitor structural vibrations and resonant frequencies to assess integrity and predict potential failures.
3. High-Speed Rail and Urban Transit
In railway systems, these sensors detect abnormal vibration patterns caused by track defects, wheel misalignments, or vehicle fatigue. Integrating seismic accelerometers improves both safety and passenger comfort.
4. Elevators and Hoisting Systems
By monitoring operational vibration levels in motors and pulley systems, seismic accelerometers help predict equipment wear and potential mechanical issues.
5. Wind Turbines
Mounted inside wind turbine towers, seismic accelerometers track structural resonance and fatigue due to wind loading, supporting predictive maintenance and increasing operational uptime.
6. Aerospace and Inertial Navigation
In satellites and aircraft, seismic accelerometers—often combined with gyroscopes—enable precise motion detection and orientation control in three-dimensional space.
How to Select the Right Seismic Accelerometer
Choosing the right seismic accelerometer involves balancing sensitivity, bandwidth, noise level, and mechanical packaging with the demands of your specific application. Below is a reference guide:
| Application | Recommended Sensitivity | Frequency Bandwidth | Key Considerations |
|---|---|---|---|
| Earthquake Monitoring | ≥ 500 mV/g | ≥ 500 Hz | Prioritize low noise and high sensitivity |
| Structural Health | 100–200 mV/g | 100–1000 Hz | Focus on accuracy and thermal stability |
| Railway Monitoring | 50–100 mV/g | ≥ 1 kHz | Emphasize dynamic range and durability |
| Elevator Safety Systems | ≤ 50 mV/g | 200–800 Hz | Look for ease of integration |
In addition to performance metrics, consider:
-
Output Type: Analog, Digital, I²C, or SPI
-
Packaging: Hermetic ceramic, stainless steel, or epoxy
-
Power Supply: 1.8–5V typical operating range
-
Environmental Ratings: IP67 or higher for harsh conditions
What’s the Future of Seismic Accelerometer Technology?
The future of seismic accelerometer development is shaped by interdisciplinary advances in microfabrication, AI, wireless communication, and materials science.
1. Ultra-High Sensitivity
New MEMS structures and advanced electronics like sigma-delta converters enable detection of acceleration levels as low as nanogravity (ng), pushing the boundaries of micro-motion sensing.
2. Extended Bandwidth Sensors
Hybrid designs combining capacitive and piezoresistive elements are being developed to allow broadband operation from near-DC up to tens of kHz.
3. Sensor Fusion and Edge Intelligence
Modern seismic accelerometers often include temperature, pressure, and gyroscope modules. Embedded AI algorithms allow real-time vibration analysis at the edge, reducing data transmission loads.
4. Wireless Monitoring Networks
With the adoption of LoRa, NB-IoT, and ZigBee, seismic accelerometers can now be deployed in distributed, scalable networks with remote access and automated alerts.
5. Energy Harvesting and Battery-Free Operation
Incorporating piezoelectric or thermoelectric materials, some seismic accelerometers can generate their power from environmental vibrations, enabling maintenance-free installations.
Frequently Asked Questions
Q1: What is the smallest vibration a seismic accelerometer can detect?
A: High-end MEMS seismic accelerometers can detect acceleration changes in the range of a few nanogravity units. For instance, Analog Devices’ ADXL1005 features a noise density of 25 µg/√Hz.
Q2: How do I know if a sensor is suitable for seismic monitoring?
A: Look for noise density below 50 µg/√Hz, sensitivity above 500 mV/g, and a bandwidth that covers the 1–500 Hz seismic frequency range.
Q3: What’s the difference between MEMS and traditional piezoelectric seismic accelerometers?
A: MEMS sensors are smaller, more affordable, and digitally compatible. Piezoelectric types offer better performance under extreme vibration but are bulkier and more expensive.
Q4: Can seismic accelerometers be embedded in concrete?
A: Yes, as long as they are housed in corrosion-resistant, waterproof enclosures and supported with proper wiring and insulation.
Q5: Does sensor orientation affect measurement?
A: Absolutely. Proper alignment of each axis is critical to ensure the accuracy of seismic and structural readings.
Q6: Can seismic accelerometers transmit data wirelessly?
A: Yes. Many modern designs support wireless transmission via cellular or mesh protocols and can be integrated into remote monitoring platforms.
Q7: How can I reduce noise in a high-interference environment?
A: Use shielded cables, differential measurement designs, and digital filtering techniques to eliminate electromagnetic and mechanical noise.
Q8: Can seismic accelerometers operate in harsh outdoor environments?
A: Yes, many are designed with rugged enclosures, wide operating temperature ranges, and IP-rated protection to withstand harsh conditions.
The seismic accelerometer has transformed how we monitor, understand, and respond to vibrational events—whether in geophysics, civil engineering, or aerospace navigation. Thanks to MEMS technology, these sensors are now more accessible, accurate, and scalable than ever before.
As AI, 5G, and new materials converge, seismic accelerometers will become more intelligent, adaptive, and autonomous. For engineers, scientists, and solution providers, mastering this technology and integrating it wisely will be key to building more resilient, safer, and smarter infrastructures.
