Starts from the Best Quality

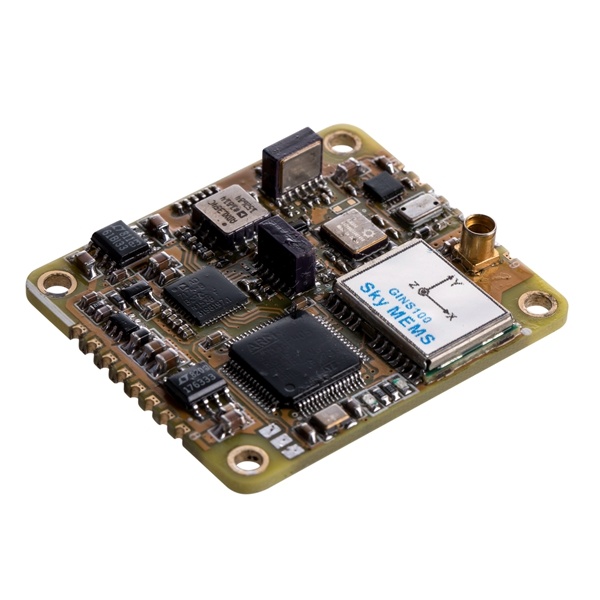

– Low Cost MEMS Inertial System with GPS/BD2 Dual-mode Satellite Navigation System

– High Accuracy:

Heading: 0.5° (rms), Attitude: 0.5° (rms)

Velocity <0.15m/s, Position < 5m (rms)

– Multiple Interface: RS422 / RS232 / TTL

– High Reliability, Strong Vibration Proof

– Small Size: 43 × 37× 15mm, 20grams (without casing)

– Wide Operating Temperature: -40°C～+70°C

– High Stability, High Reliability, High Accuracy

– High Survivability, Fully Calibrated INS

– Provide Accurately Real-time 3D Position, Speed, Acceleration, Attitude Angle, Angular Rate, etc.

– Position Accuracy (Pure Inertial Navigation):100m (100s)

– Attitude Angle Error: 2°

– Overload Resistance:10000g, IP67 Protection

– Wide Temperature: -40°C~+85°C

– Real-time Measure Accurately the Attitude Angle,Position, Speed, Acceleration and Angular Rate

for High Speed Self-spinning Flying Body

– Angular Range: ±150°/s, ±400°/s (optional)

– Acceleration Range：±10g, ±100g (optional)

– Attitude Angle Error: 2°, Anti-rotation: 30r/s

– High Stability, High Reliability, High Survivability in Harsh Environment

– Overload Resistance: 10000g

standalone compact, high accuracy AHRS, utilizes the MEMS-based inertial sensors, widely applied in UAV, unmanned vehicle control, ROV, etc.

• Output: Pitch, Roll, Yaw, Acceleration, Angular Rate
• Heading Accuracy: 0.5°
• Attitude Accuracy: Static < ±0.1°, Dynamic< ±0.3°
• Range: Gyro ±500°/s / ±900°/s, Acc ±10g/ ±20g/ ±40g
• Wide Input Power Range: 6~15VDC
• Military Level Casing, High Survivability
• Compact and Lightweight: 106.7 x 38.1 x 22.3mm, 100grams
• Wide Working Temperature: -40°C~+85°C

– 3-axis Attitude Angle Accuracy: 0.5° (static), 2° (dynamic)

– Attitude Angle Range: yaw ±180°, pitch ±90°, roll ±180°

– Range: Acc ±5g, Gyro ±300°/s, Magnetic ±6gauss

– Bandwidth: 200Hz, Sampling Rate: 5000 samples/s

– Data Storage Capacity: 8GB

– Wide Working Temperature: -40°C～+85°C

– High Stability & Reliability, High Survivability

– Excellent Shock and Vibration Resistance

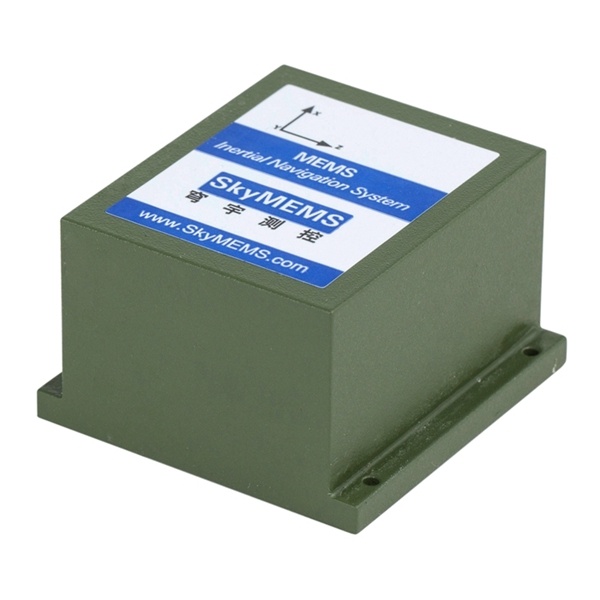

– Attitude Accuracy: Static < 0.2°, Dynamic< 1° (hovering)

– Range: Gyro ±300°/s, Acc ±5g or ±10g, (ODM supported)

– Wide Input Power Range: 9~36VDC

– Military Level Casing, High Survivability

– Competitive Price, Light Weight

– Compact and Lightweight: 71.5 x 71.5 x 53.5mm

– Wide Working Temperature: -40°C~+70°C

– High Stability, High Reliability, High Accuracy

– High Survivability in Harsh Environment, Fully Calibrated

– Range: Acc ±10g, Gyro ±400°/s, Magnetic ±6gauss

– Bias stability: Gyro 80°/h, Acc 0.005g

– Overload Resistance:10000g, IP67 Protection

– Wide Temperature: -40°C～+85°C,

– Small Size: 45*40*40mm

•  High Precision Military 6 DoF Mini IMU
•  3 Angular Rates and 3 Linear Acceleration as well as Rotation Rate Outputs
•  Data Output Rate: 100Hz
•  Range: Gyro (X axis) ±20000°/s, Accel ±100g
•  High Overload Resistance: 3000g
•  Compact and Light weight D40*25mm, <90grams
• – Small Size: D40*25mm

– Precision 6 DoF MEMS Inertial Measurement Unit

– Compatible with ADIS16488A interface and protocol

– Dynamic Range: gyro ±450°/s,  acc ±16g (ODM supported)

– Acc Bias Instability: 0.03mg, Gyro Bias Instability: 3°/h (Allen)

– Ability to Access with GNSS, Aerospcace Level Reliability

– Full Temperature Range Calibration and Compensation

– Compact size: 47*44*15mm

– High Precision 6 DoF MEMS Vertical Gyro

– Output: Pitch, Roll, Yaw, Acceleration, Angular Speed

– Attitude Accuracy: Static < ±0.1°, Dynamic< ±0.3°

– Range: Gyro ±500°/s, Acc ±10g, (ODM supported)

– Wide Input Power Range: 5~24VDC

– Military Level Casing, High Survivability

– Compact and Lightweight: 50 x 45 x 21mm, 70grams

– Wide Working Temperature: -40°C~+85°C
