Starts from the Best Quality

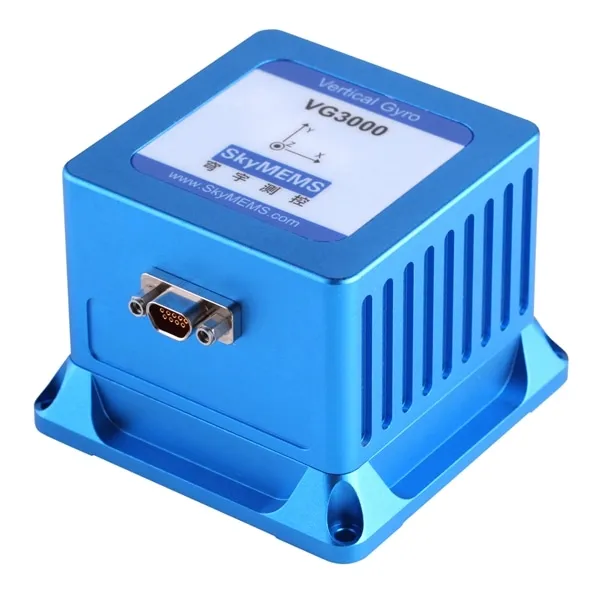

vertical gyro system VG3000 1

VG3000 Vertical Gyroscope System

high shock resistant vertical gyroscope, specially designed for industrial oil powered unmanned aircraft, helicopter, high speed target drone, etc.

  • Excellent Shock and Vibration Resistance
  • Attitude Accuracy: Static < 0.2°, Dynamic< 1° (hovering)
  • Range: Gyro ±300°/s or ±800°/s , Acc ±5g or ±10g, (ODM supported)
  • Wide Input Power Range: 9~36VDC
  • Military Level Casing, High Survivability
  • Compact and Lightweight: 71.5 x 71.5 x 53.5mm
  • Wide Working Temperature: -40°C~+70°C

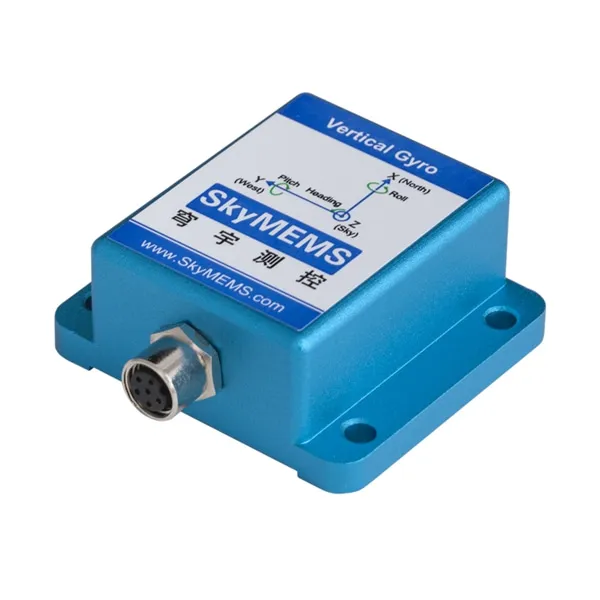

vertical gyroscope VG200 1

VG200

VG200 Vertical Gyroscope

– Output: Pitch, Roll, Yaw, Acceleration, Angular Rate

– Heading: Diverging 0.2°/hour

– Attitude Accuracy: Static < ±0.1°, Dynamic< ±0.3°

– Range: Gyro ±500°/s / ±900°/s, Acc ±10g/ ±20g/ ±40g

– Wide Input Power Range: 5V or 9~36VDC

– Military Level Casing, High Survivability

– Compact and Lightweight: 50 x 45 x 21mm, 70grams

– Wide Working Temperature: -40°C~+85°C

vertical gyro VG100 1

VG100

leading industry vertical gyro (dynamic inclinometer), widely applied in platform and vehicle leveling, excavators, mobile cranes, antenna stabilization, etc.

  • Precision Acceleration, Angular Rate, Temperature Output
  • Heading: Diverging 0.5°/hour
  • Attitude Accuracy: Static < 0.3°, Dynamic< 0.5° (1σ)
  • Range: Acc ±2/±4/±8/±16g, Gyro ±250/±500/ ±1000°/s
  • Wide Input Power Range: 9~36VDC
  • Military Level Casing, High Survivability
  • Compact and Lightweight: 50 x 45 x 21mm, 70grams
  • Wide Working Temperature: -40°C~+85°C
Vertical-Gyroscope-VG3000-1

VG3000 Vertical Gyro

– Excellent Shock and Vibration Resistance

– Attitude Accuracy: Static < 0.2°, Dynamic< 1° (hovering)

– Range: Gyro ±300°/s, Acc ±5g or ±10g, (ODM supported)

– Wide Input Power Range: 9~36VDC

– Military Level Casing, High Survivability

– Competitive Price, Light Weight

– Compact and Lightweight: 71.5 x 71.5 x 53.5mm

– Wide Working Temperature: -40°C~+70°C

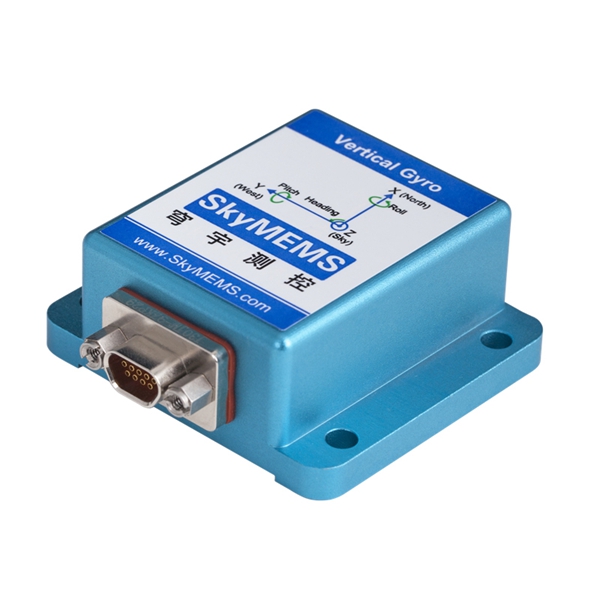

VG1000-1

VG2000 Vertical Gyro

– High Precision 6 DoF MEMS Vertical Gyro

– Output: Pitch, Roll, Yaw, Acceleration, Angular Speed

– Attitude Accuracy: Static < ±0.1°, Dynamic< ±0.3°

– Range: Gyro ±500°/s, Acc ±10g, (ODM supported)

– Wide Input Power Range: 5~24VDC

– Military Level Casing, High Survivability

– Compact and Lightweight: 50 x 45 x 21mm, 70grams

– Wide Working Temperature: -40°C~+85°C

VG1000-1

VG1000 Vertical Gyro

– Precision 6 DoF MEMS Vertical Gyro

– Heading: Diverging 0.1°/hour

– Attitude Accuracy: Static < 0.2°(1σ), Dynamic< 0.5°

– Range: Acc ±2g, Gyro ±300°/s,(ODM supported)

– Wide Input Power Range: 5~18VDC

– Military Level Casing, High Survivability

– Compact and Lightweight: 50 x 45 x 21mm, 70grams

– Wide Working Temperature: -40°C~+85°C
