mems gyroscope sensor

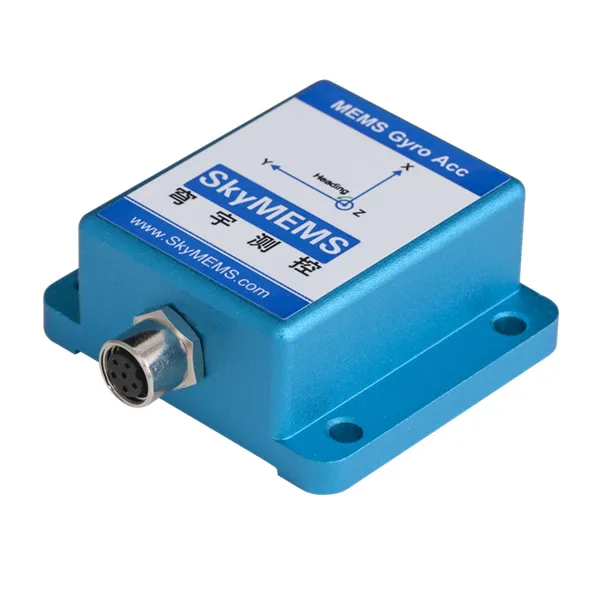

MGA1000 MEMS based Gyroscope

Single axis mems based gyroscope, with triaxial accelerometer, widely applied in AGV, robotics control, industrial control, etc.

  • Heading Divergence Rate: 0.5°/hour
  • Horizontal Azimuth, Acceleration, Angular Rate Output
  • Range: Acc ±2g (±6g optional), Gyro ±300°/s
  • Interface: RS232 (default), RS485, CAN (Optional)
  • Wide Input Power Range: 5~24VDC
  • High Survivability in Harsh Environment, IP66
  • Compact and Lightweight – 50 x 45 x 21mm, 70grams
  • Wide Working Temperature: -40°C~+85°C
MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer

MGA2000 Single Axis MEMS Gyro with Triaxial Accelerometer

– Cost Effective Z Axis MEMS Gyro with Temp. Output

– Heading: Diverging 0.1°/hour

– Range: Gyro ±300°/s, (ODM Supported)

– Fully Calibrated and Error Compensation

– Wide Input Power Range: 5~18VDC

– Compact and Light Weight: 50*45*21mm, 70grams

– High Survivability in Harsh Environment, IP67

– Wide Working Temperature: -40°C~+85°C

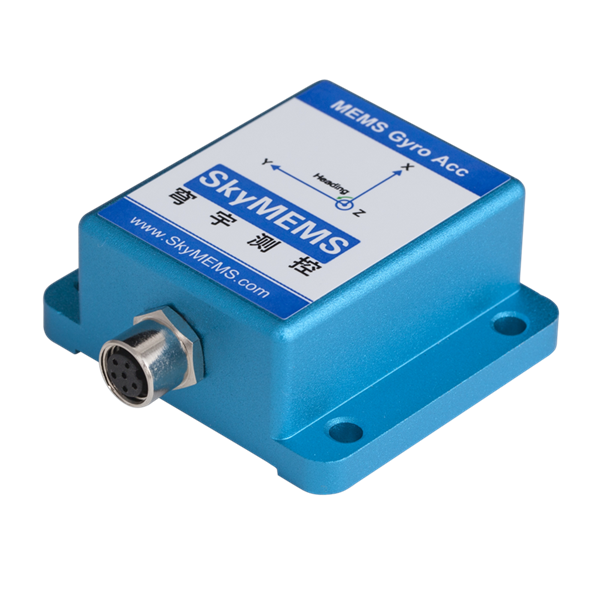

MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer

MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer

– Cost Effective Z Axis MEMS Gyro with 3 Accelerometers

– Heading: Diverging 0.5°/hour

– Range: Acc ±2g, Gyro ±300°/s,(ODM Supported)

– Wide Input Power Range: 5~24VDC

– Fully Calibrated and Error Compensation

– High Survivability in Harsh Environment, IP67

– Compact and Lightweight: 50 x 45 x 21mm, 70grams

– Wide Working Temperature: -40°C~+85°C

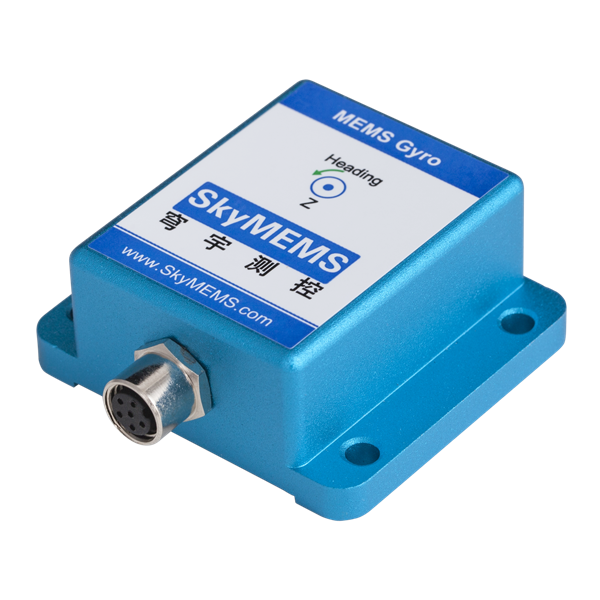

MGS1000 Single Axis MEMS Gyro

MGS1000 Single Axis MEMS Gyro

– Cost Effective Z Axis MEMS Gyro with Temp. Output

– Heading: Diverging 0.1°/hour

– Range: Gyro ±300°/s, (ODM Supported)

– Fully Calibrated and Error Compensation

– Wide Input Power Range: 5~18VDC

– Compact and Light Weight: 50*45*21mm, 70grams

– High Survivability in Harsh Environment, IP67

– Wide Working Temperature: -40°C~+85°C
