Starts from the Best Quality

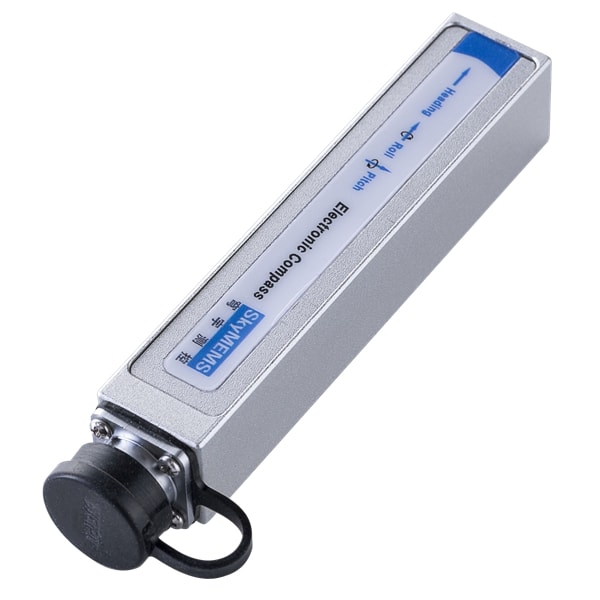

high-performance, tilt-compensated electronic compass, widely used in antenna positioning, buoy, robotics and antenna servo system, etc.

• Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)
• Tilt Accuracy: ±0.1° (25°C, Full Range)
• Hard/Soft Magnetic Compensation, Tilt Compensation
• Support User Calibration, IP67 Protection
• Wider Input Voltage: 5~24VDC
• Interface: RS232 (default) or RS485
• Wide Working Temperature: -40~+85ºC
• Small Size: L113*20*20mm

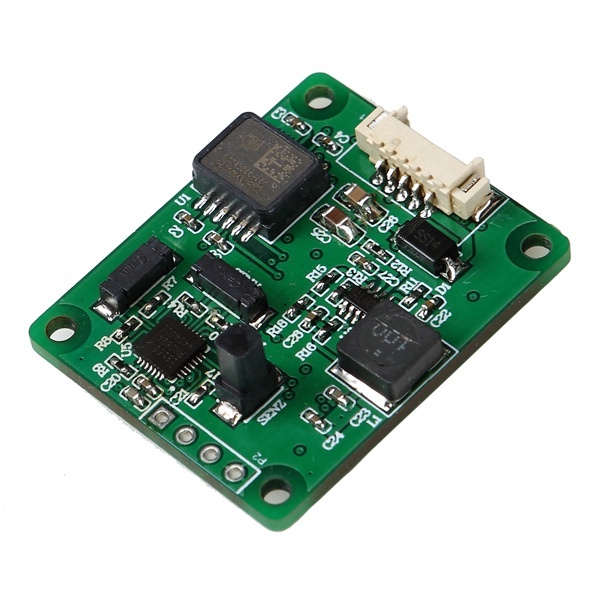

Hot selling electronic compass sensor, high reliability, 0.3°RMS heading accuracy, widely used in laser rangefinders, antenna positioning, buoy, etc.

• Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)
• Pitch and Roll Accuracy: ±0.1° (25°C, Full Range)
• Hard/Soft Magnetic Compensation, Tilt Compensation
• Support User Calibration
• Wide Power Supply: 5~24V±0.3VDC
• Interface: RS232 (default), or RS485 / LV-TTL (optional)
• Wide Working Temperature: -40~+85°C
• Small Size: 33*27*10mm

ECB200 Electronic Compass Sensor

– Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)

– Pitch and Roll Accuracy: ±0.1° (25°C, Full Range)

– 3D Angle (Heading, Pitch, Roll) Output

– Hard/Soft Magnetic Compensation, Tilt Compensation

– Support User Calibration

– Power Supply: 3.3±0.3VDC, Interface: LV-TTL

– Widely Working Temperature: -40~+85°C

– Small Size: 22*18*10mm

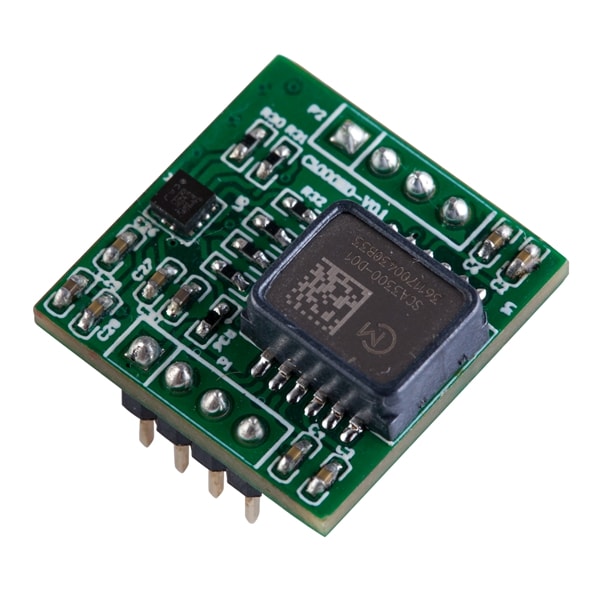

the smallest China ECB100 3 Axis Compass from manufacturer, provides accurate heading and tilt readings, easy to be integrated, widely used in antenna pointing, buoy, laser rangefinders, etc.

• Smallest Size: 16.5*16.5*6.5mm
• 3D Angle (Heading, Pitch, Roll) Output
• Heading Accuracy: 0.8° RMS (25°C, Tilt Angle<30°)
• Pitch and Roll Accuracy: ±0.1° (25°C, Full Range)
• Hard/Soft Magnetic Compensation, Tilt Compensation
• Support User Calibration
• Power Supply: 3.3±0.3VDC, Interface: LV-TTL
• Widely Working Temperature: -40~+85°C

• 3D Angle Output (Heading, Pitch, Roll)
• Hard/Soft Magnetic Compensation, Tilt Compensation
• Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)
• Pitch and Roll Accuracy:±0.1° (25°C, Full Range)
• Wider Input Voltage: 5~24VDC (up to 36VDC)
• Interface: RS232 (default) or RS485

• 3D Angle Output (Heading, Pitch, Roll)
• Hard/Soft Magnetic Compensation, Tilt Compensation
• Heading Accuracy: ±2° RMS (25°C, Any Tilt Angle)
• Pitch and Roll Accuracy: ±0.1° (25°C, Full Range)
• Wider Input Voltage: 5~24VDC (up to 36VDC)
• Wide Working Temperature: -40~+85°C

High accuracy accurate digital compass, RS232, RS485 or LV-TTL interface, widely used in laser rangefinders, antenna positioning, buoy, etc.

• 3D Angle (Yaw, Pitch, Roll) Output, Support Local Second Calibration
• Hard/Soft Magnetic Compensation, Tilt Compensation
• Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)
• Pitch and Roll Accuracy: ±0.1° (25°C, Full Range)
• Power Supply: 5~24V±0.3VDC, Compact Size: 33*27*10mm
• Widely Working Temperature: -40~+85°C

• 3D Angle (Heading, Pitch, Roll) Output, Support Local Second Calibration
• Hard/Soft Magnetic Compensation, Tilt Compensation
• Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°),
• Pitch and Roll Accuracy: ±0.1° (25°C, Full Range)
• Power Supply: 3.3±0.3VDC, Interface: LV-TTL
• Widely Working Temperature: -40~+85°C, Small Size: 22*18*10mm

• 3D Angle (Heading, Pitch, Roll) Output, Support Local Second Calibration
• Hard/Soft Magnetic Compensation, Tilt Compensation
• Heading Accuracy: 0.8° RMS (25°C, Tilt Angle<30°),
• Pitch and Roll Accuracy: ±0.1° (25°C, Full Range)
• Power Supply: 3.3±0.3VDC, Interface: LV-TTL
• Widely Working Temperature: -40~+85°C, Small Size: 16.5*16.5*6.5mm
