Starts from the Best Quality

MEMS Capacitive Accelerometer MAS3012 1

MAS3012

Single/Dual/Triaxial MEMS Capacitive Accelerometer Sensor, ultra-low noise: 1ug, dynamic range: 110dB, widely used in vibration monitoring, etc.

  • Closed Loop Structure MEMS Capacitive Accelerometer
  • Range: ±2g, ±5g, ±10g, ±30g, Excellent Bias Stability
  • Dynamic Range: ≥110dB,
  • Bandwidth: MAS3012-2 ≥1KHz (Typical Value, -3dB)
  • Low Noise: MAS3012-2≤1.0μgrms/√Hz
  • Non-linearity: 0.1%FS (Full Range)
  • Extremely Reliable in Harsh Environment
  • Wide Operating Temperature Range: -40~+85ºC
analog mems accelerometer MAS1000H

MAS1000H Analog Mems Accelerometer

high performance single/dual/triaxial analog mems accelerometer, low noise, dynamic range: 110dB, suitable for seismic monitor, vibration monitoring, etc.

  • Single/Triaxial MEMS Capacitive Accelerometer
  • Range:±2g/±3g, Excellent Bias Stability
  • Output: Differential Output / Single-Ended Output
  • Dynamic Range: ≥110dB, Bandwidth (-3dB): 200Hz
  • Low Noise: ≤2.5μgrms/√Hz
  • Non-linearity: 0.1%FS (Full Range)
  • Extremely Reliable in Harsh Environment
  • Wide Operating Temperature Range: -40~+85°C

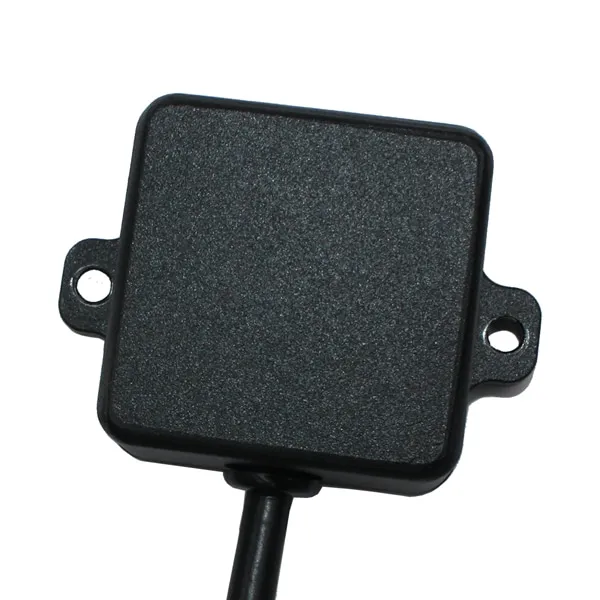

Low Cost 3 Axis Digital MEMS Accelerometers DMA08 1

DMA08

Low cost 3 axis digital MEMS accelerometers with ±8g range, widely used in motor monitor and vibration monitoring.

  • Low Cost 3 Axis Digital MEMS Accelerometers
  • Range: ±8g, Bias Stability: < 5mg, Resolution: 0.5mg
  • Multiple Interfaces: RS232 or RS485 Modbus
  • Non-linearity: ≤ 0.2%FS
  • Up to 200Hz Data Refreshing Rate (can support 1kHz)
  • Wider Input Voltage: 5~30VDC
  • High Reliability in Harsh Environment
  • Wide Operating Temperature Range: -40~+85ºC

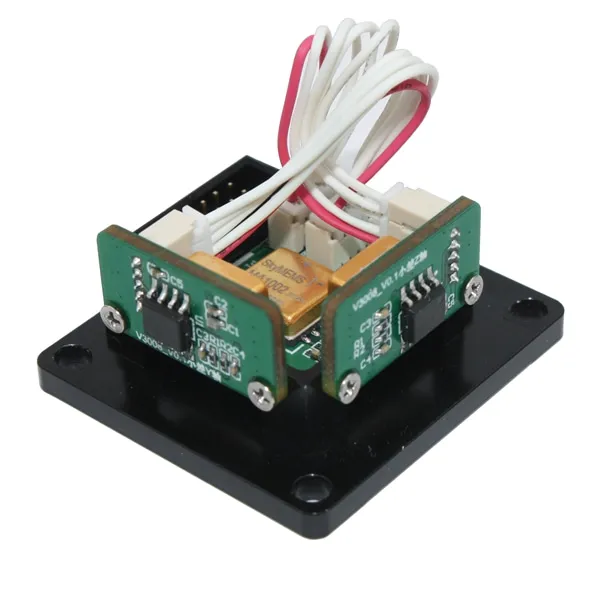

Triaxial MEMS Capacitive Accelerometer MAS3008 1

MAS3008

Tri-axial MEMS accelerometer sensor, high performance, it is an ideal option for seismic monitor, vibration monitoring, high speed train/metro train, etc.

  • Triaxial MEMS Capacitive Accelerometer
  • Range:±2g, Excellent Bias Stability
  • Dynamic Range: ≥110dB, Bandwidth (-3dB): 200Hz
  • Low Noise: ≤2.5μgrms/√Hz
  • Non-linearity: 0.1%FS (Full Range)
  • Output Mode: Differential Output
  • Wide Operating Temperature Range: -40~+85°C
  • Size: 38.5*35.5*21mm

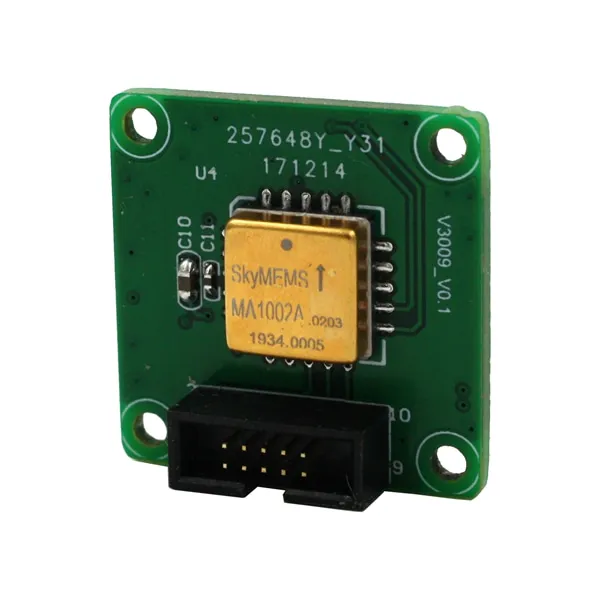

accelerometer module

MAS3009 seismic accelerometer

Single axis MEMS seismic accelerometer, low Noise: ≤1.5μgrms/√Hz, dynamic range: 110dB, widely used in machine health monitoring, etc.

  • Single Axis MEMS Capacitive Accelerometer
  • Range: ±2g/±3g, Excellent Bias Stability
  • Dynamic Range: ≥110dB, Bandwidth (-3dB): 1000Hz
  • Low Noise: ≤1.5μgrms/√Hz
  • Non-linearity: 0.1%FS (Full Range)
  • Extremely Reliable in Harsh Environment
  • Wide Operating Temperature Range: -40~+85°C
  • Size: 19.8*19.8mm

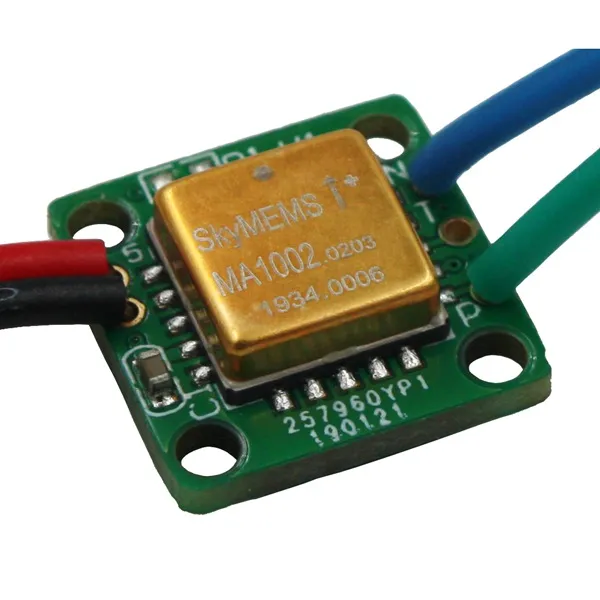

seismic accelerometer sensor

MAS3015

Single axis MEMS accelerometer sensor, specially designed for seismic monitor and vibration monitoring.

  • Close-loop Structure MEMS Capacitive Accelerometer
  • Range:±2g/±3g/±5g/±30g, Excellent Bias Stability
  • Input Voltage: MAS3015A: 7~36V, MAS3015B: 4.75~5.25V
  • Output: Differential Output / Single-Ended Output
  • Wide Operating Temperature Range: -40~+125°C
  • Small Size: 15*15mm
  • Close-loop Structure MEMS Capacitive Accelerometer
  • Range:±2g/±3g/±5g/±30g, Excellent Bias Stability
  • Input Voltage: MAS3015A: 7~36V, MAS3015B: 4.75~5.25V
  • Output: Differential Output / Single-Ended Output
  • With Temperature Sensor
  • Wide Operating Temperature Range: -40~+125°C
  • Small Size: 15*15mm

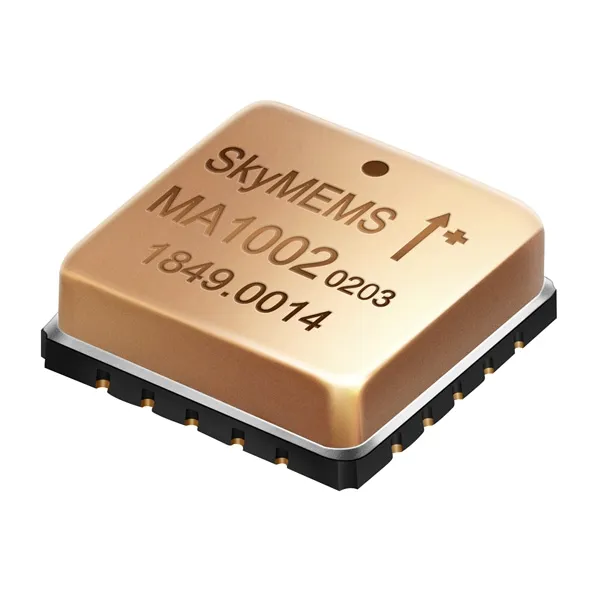

mems accelerometer MA1000 1

MA1000

High-performance closed-loop capacitive accelerometer, range:+-2g/3g, High stability, widely used in seismic monitor, structure health monitor, etc.

  • Range: ±2g/ ±3g, excellent bias stability: 0.05mg
  • Output: differential output/single-ended output
  • Single power supply: 4.75~5.25V
  • Bandwidth (-3dB): 1000Hz
  • Low Noise: ≤1.2μg/√Hz (@100Hz), fully calibrated
  • Embedded temp. sensor& precision reference voltage
  • Extra small LCC20 package (9.0mm x 9.0mm)
  • Wide operating temperature range: -40~+125°C

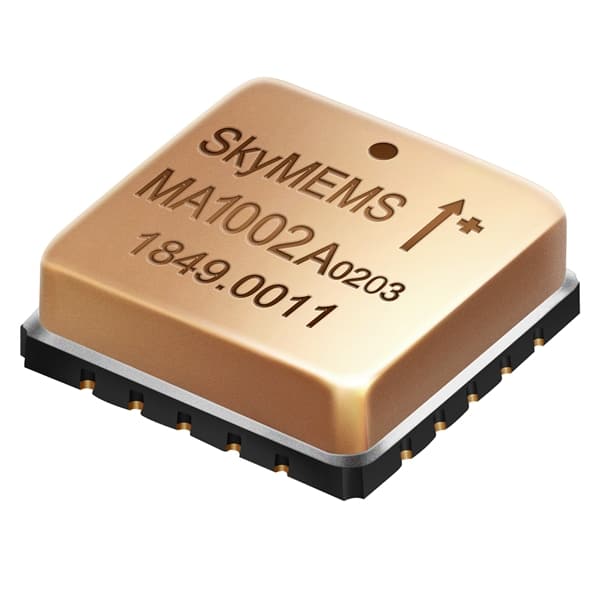

seismic accelerometer

MA1000A

High end closed-loop MEMS accelerometer chip, specially designed for vibration measurements: seismic monitor, micro-vibration monitoring, etc.

  • Range: ±2g~±30g, Excellent Bias Stability
  • Output: Differential Output / Single-Ended Output
  • Very Low Noise: 1.2μg/√Hz for ±2g Range (typical)
  • Input Power Supply: 4.75~5.25V
  • Embedded Self-Test Function and Temperature Sensor
  • Embedded Precision Reference Voltage
  • Shock Survivability: 6000g, Vibration Resistance
  • Wide Operating Temperature Range: -40~+125°C
MAS3012 Triaxial MEMS Capacitive Accelerometer

MAS3012 Triaxial MEMS Capacitive Accelerometer

– Closed Loop Structure MEMS Capacitive Accelerometer

– Range:±2g, Excellent Bias Stability

– Dynamic Range: ≥110dB,

– Bandwidth: ≥1KHz (Typical Value, -3dB)

– Low Noise: ≤1.0μgrms/√Hz,Non-linearity: 0.1%FS (Full Range)

– Extremely Reliable in Harsh Environment

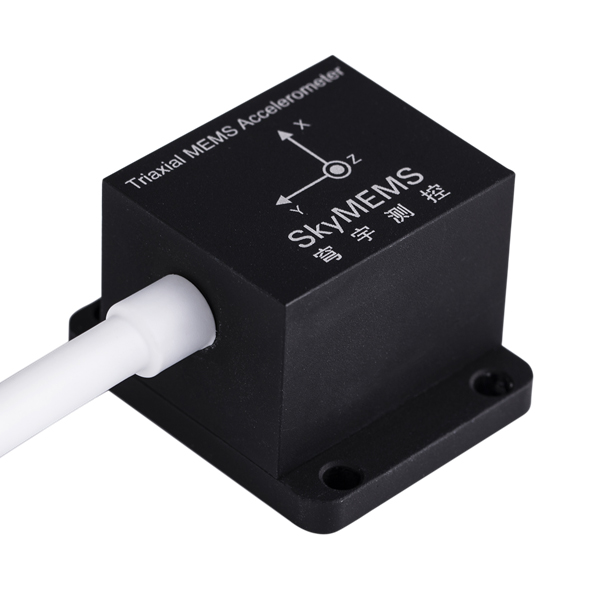

MAS3002 Triaxial MEMS Capacitive Accelerometer

MAS3002 Triaxial MEMS Capacitive Accelerometer

– Triaxial MEMS Capacitive Accelerometer

– Range:±2g, Excellent Bias Stability

– Output: Differential Output / Single-Ended Output

– Dynamic Range: ≥100dB, Bandwidth (-3dB): 200Hz

– Low Noise: ≤2.5μgrms/√Hz

– Non-linearity: 0.1%FS (Full Range)

– Extremely Reliable in Harsh Environment

– Wide Operating Temperature Range: -40~+85°C

MAS1012 Single Axis MEMS Capacitive Accelerometer

MAS1012 Single Axis MEMS Capacitive Accelerometer

– Closed Loop Structure MEMS Capacitive Accelerometer

– Range:±2g, Excellent Bias Stability

– Dynamic Range: ≥110dB

– Bandwidth: ≥1KHz (Typical Value, -3dB)

– Low Noise: ≤1.0μgrms/√Hz

– Non-linearity: 0.1%FS (Full Range)

– Extremely Reliable in Harsh Environment

– Wide Operating Temperature Range: -40~+85ºC

MAS100X-1

MAS1002 Single Axis MEMS Capacitive Accelerometer

– Single Axis MEMS Capacitive Accelerometer

– Range:±2g, Excellent Bias Stability

– Output: Differential Output / Single-Ended Output

– Dynamic Range: ≥100dB, Bandwidth (-3dB): 200Hz

– Low Noise: ≤2.5μgrms/√Hz

– Non-linearity: 0.1%FS (Full Range)

– Extremely Reliable in Harsh Environment

– Wide Operating Temperature Range: -40~+85°C

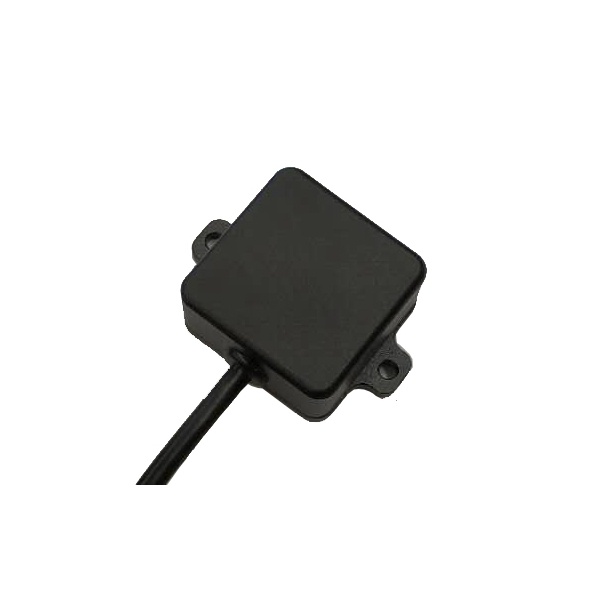

3-axis-digital-MEMS-accelerometer-DMA08

DMA08 Series Low Cost 3 Axis Digital MEMS Accelerometers

– Low Cost 3 Axis Digital MEMS Accelerometers

– Range:±8g, Bias Stability: < 5mg, Resolution: 0.5mg

– Multiple Interfaces: RS232 or RS485 Modbus

– Non-linearity: ≤ 0.2%FS

– Up to 200Hz Data Refreshing Rate (can support 1kHz)

– Wider Input Voltage: 5~30VDC

– High Reliability in Harsh Environment

– Extremely Reliable in Harsh Environment

– Wide Operating Temperature Range: -40~+85ºC

seismic accelerometer

MA1000A High Performance MEMS Capacitive Accelerometer

  • Range:±2g~±30g, Excellent Bias Stability
  • Output: Differential Output / Single-Ended Output
  • Very Low Noise: 0.9μg/√Hz for ±2g Range (typ)
  • Embedded Self-Test Function and Temperature Sensor
  • Shock Survivability: 6000g, Vibration Resistance
  • Wide Operating Temperature Range: -40~+125°C

REQUEST A QUOTE
