High-Precision MEMS Inertial Sensors & Navigation Systems

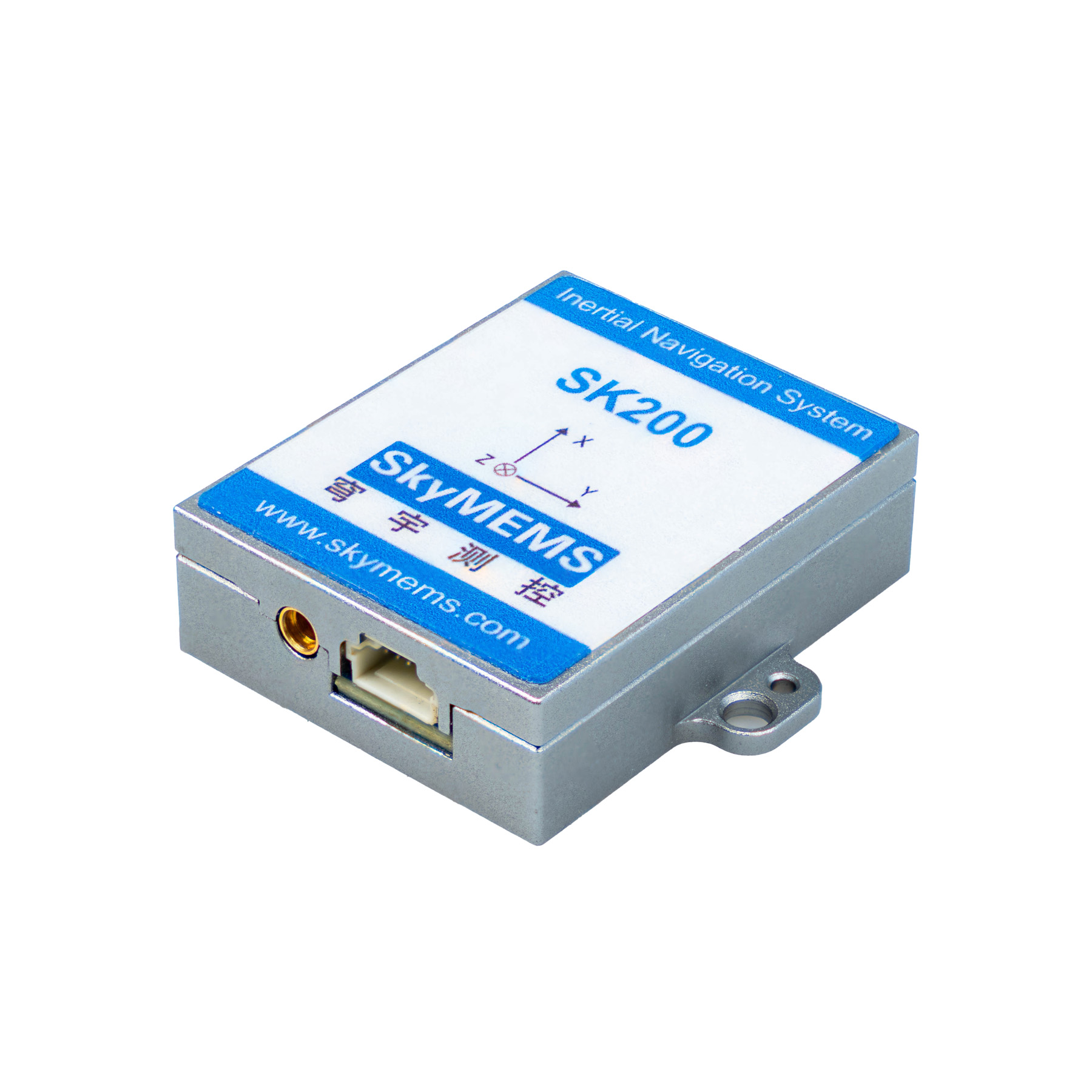

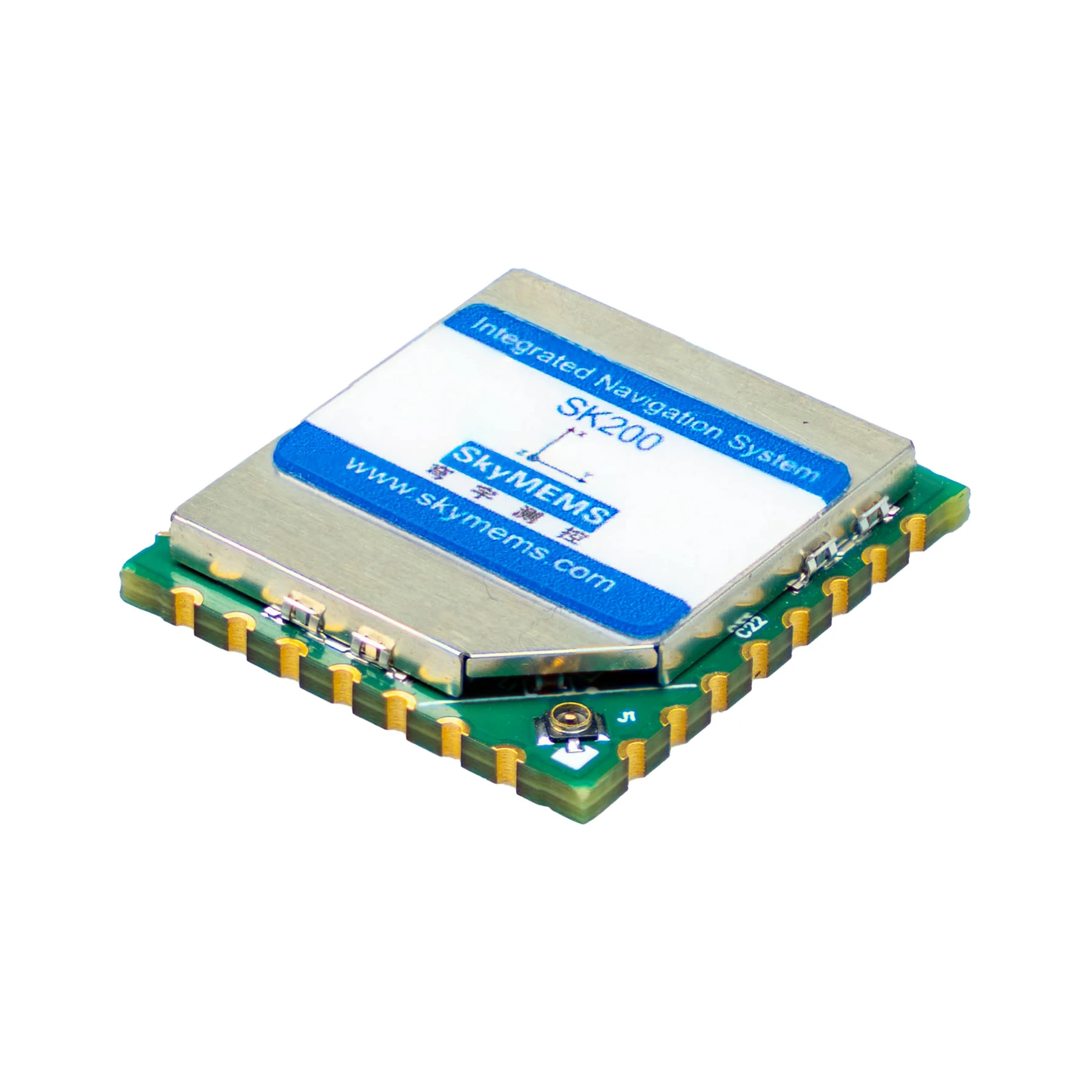

SK200 High Performance GNSS – Aided Integrated Navigation System

– High Accuracy: Velocity < 0.05m/s

Attitude (Dynamic): Heading 0.2°, Pitch and Roll 0.1°(1σ)

Horizontal Position < 1m, Vertical Position < 1.5m (RMS)

– Bias Instability (Allan): Gyro 3°/h, Accel 80ug

– Real-time Gyro and Accel Bias Tracking and Compensation

– Data Output Rate: INS 100Hz, IMU 800Hz

– Full Temperature Range Sensor Calibration

– Superior SWaP Performance: 24×22×3.8 mm, < 4g, <445mW

– Working Temperature: -40~+85°C

GINS1000 High Performance GNSS – Aided Integrated Navigation System

– Multi-constellation, Full-frequency GNSS Receiver

– High Tracking Sensitivity for Complicated Environment

– High Accuracy: Yaw up to 0.1°, Pitch/Roll: 0.08° (rms), Velocity ≤ 0.03m/s, Position ≤ 2cm (rms, RTK)

– Supports external RTK correction input, greater flexibility

– High Reliability, Strong Vibration and Shock Resistance

– Multiple Interfaces: RS232, RS422

– Adjustable Bandwidth and Protocol ODM Supported

High Performance rugged GNSS aided inertial system, widely used in unmanned aerial vehicle (UAV), autonomous vehicle, etc.

• GPS/BDS/GLONASS/Galileo/QZSS Systems, Full-Frequency GNSS Receiver
• High Tracking Sensitivity for Complicated Environment
• High Accuracy: yaw up to 0.1°, Pitch/Roll: 0.08° (rms), Velocity <0.03m/s, Position < 2cm (rms, RTK)
• High Reliability, Strong Vibration and Shock Resistance
• Multiple Interfaces: RS232 / RS422
• Adjustable Bandwidth and Protocol ODM Supported

• High Precision 6 DoF Mini IMU with Full Calibration
• Fully Similar as ADIS16460, Better Performance
• Range (Typical): Gyro ±400°/s,  Accelerometer ±8g
• Bias Instability (Allan): Gyro 3°/h,  Accelerometer 50μg
• Interface: SPI (2000Hz), UART (200Hz)
• Compact and Light weight, 23.3 × 22.4 × 7.5  mm,  < 15 grams
• Wide Working Temperature: -40°C～+85°C

• High Precision 6 DoF Mini IMU with Full Calibration
• Range (Typical) : Gyro ±500°/s, Accel ±16g
• Bias Instability (Allan) : Gyro 1.5°/h, Accel: 35μg
• Data Output Rate:  UART 1000Hz, SPI up to 1000Hz
• Power Supply:  3.3 VDC
• Compact and Light weight 23.3×22.4×7.5mm, <15g
• Wide Working Temperature: -40°C～+85°C

• Precision 6 Dof IMU with High G capable to 10000g
• Dynamic Range: Gyro ±450°/s,  Acc ±16g
• Bias Instability: Gyro 1.2°/h, Acc 50µg
• Full Temperature Range Accuracy Assured
• High Bandwidth, RS422, up to 2000Hz Data Output
• Compact and Light weight, 24.95 × 22.39 × 8.1mm,  22 grams(with wire)
• Working Temperature: -40~+85°C

• Automotive Grade 6DoF IMU Sensor,  Easy to Integrate
• Strictly Factory Calibrated at Full Temperature
• Pass 2000km All-Terrain Vehicles Tests
• Range (Typical): Gyro ±450°/s,  Acc ±16g
• Bias Instability (Allan): Gyro 1.2°/h, Acc 50µg
• High Bandwidth (Typical): 200Hz
• Compact & Light Weight 22.4 ×22.4×9mm,  20g
• Working Temperature: -40~+85°C

– Multi-constellation, Full-frequency GNSS Receiver

– High Tracking Sensitivity for Complicated Environment

– High Accuracy: Yaw up to 0.1°, Pitch/Roll:

0.08° (rms), Velocity ≤ 0.03m/s, Position ≤ 2cm (rms, RTK)

– Certified anti-jamming ensures continuous positioning

– High Reliability, Strong Vibration and Shock Resistance

– Multiple Interfaces: RS232, RS422

– Adjustable Bandwidth and Protocol ODM Supported
