Starts from the Best Quality

High Precision analog output inertial measurement unit, 3000g high overload resistance, widely applied in precision weapon, etc.

• High Precision Military 6 DoF Mini IMU
• 3 Angular Rates and 3 Linear Acceleration as well as Rotation Rate Outputs
• Data Output Rate: 100Hz
• Range: Gyro (X axis) ±20000°/s, Accel ±100g
• High Overload Resistance: 3000g
• Compact and Light weight D40*25mm, <90grams

High Overload Resistance 10000g MEMS Inertial Measurement Unit, widely applied in precision weapon, rocket, etc.

• High Stability, High Reliability, High Accuracy, High Survivability in Harsh Environment, Fully Calibrated
• Angular Range:±150°/s, Acceleration Range：±10g (Supporting Custom Design)
• Bias Stability: Gyro 30°/h, Acc 1mg (1σ)
• Overload Resistance:10000g, IP67 Protection
• Wide Temperature: -40°C～+85°C
• Compact Size: 38*35*28mm

Precision MEMS inertial measurement unit, compatible with ADIS16488A, widely applied in tactical UAS navigation, precise guided bomb, rocket, etc.

• Precision 6 DoF MEMS Inertial Measurement Unit
• Compatible with ADIS16488A Interface and Protocol
• Dynamic Range: Gyro ±450°/s, Acc ±16g
• Bias Instability: Gyro: 0.8°/h, Acc 0.03mg (Allen)
• Ability to Access with GNSS, Aerospace Reliability
• Full Temperature Range Accuracy: Built-in High
• Performance Temperature Calibration and Compensation Algorithm

High precision 6 DoF mems angular rate sensor, full calibration, widely applied in unmanned aircraft, automatic vehicles and ROVs, AGV, etc.

• High Precision 6 DoF MEMS IMU with Full Calibration
• 7 Sensor Outputs: angular rate (x3), linear acceleration (x3), and temperature; Data Output Rate: up to 1000Hz
• Range: Gyro ±500°/s, Acc ±10g, (more options)
• Bias Instability: Gyro 5°/h, Acc 0.03mg (Allan Variance)
• IP67 Protection, Voltage: 5V or 9~36VDC
• Compact and Light weight – 50 x 45 x 21 (mm), 70grams
• Wide Working Temperature: -40°C～+85°C

high performance cheap gyro sensor, providing precise 3-axis outputs of angular rate and acceleration, and temperature, at 100Hz.

• High Precision 6 DoF MEMS IMU with Full Calibration
• 7 Sensor Outputs: angular rate (x3), linear acceleration (x3), and temperature; Data Output Rate: 100Hz
• Range: Gyro ±500°/s, Acc ±8g
• Bias Stability: Gyro 3.5°/h, Acc 0.05mg (Allan Variance)
• Wide Input Power Range: 5~36VDC
• Compact and Light weight – 50 x 45 x 21 (mm), 70g
• Wide Working Temperature: -40°C～+85°C

high performance 6 dof MEMS inertial measurement unit, widely applied in unmanned aircraft, automatic vehicles, industrial robot, antenna pointing, etc.

• High Precision 6 DoF MEMS IMU with Full Calibration
• 7 Sensor Outputs: angular rate (x3), linear acceleration (x3), and temperature; Data Output Rate: 200Hz
• Range: Gyro ±500°/s or ±1000°/s , Acc ±2g~±16g
• Bias Stability: Gyro 6°/h, Acc 0.03mg (Allan Variance)
• Wide Input Power Range: 9~36VDC
• Compact and Light weight – 50 x 45 x 21 (mm), 70g
• Wide Working Temperature: -40°C～+85°C

10 DoF inertial measuring unit, compatible with ADIS16488, widely used in tactical UAS navigation, precise guided bomb, rocket, seeker, etc.

• Precision Tactical 10DoF Inertial Measurement Unit
• Compatible with ADIS16488 Interface and Protocol
• Dynamic Range: Gyro ±450°/s, Acc ±18g (±10g)
• Bias Stability: Gyro: 2°/h, Acc 0.1mg (Allan)
• Ability to Access with GNSS, Aerospace Reliability
• Full Temperature Range Accuracy: Built-in High
• Performance Temperature Calibration and Compensation Algorithm

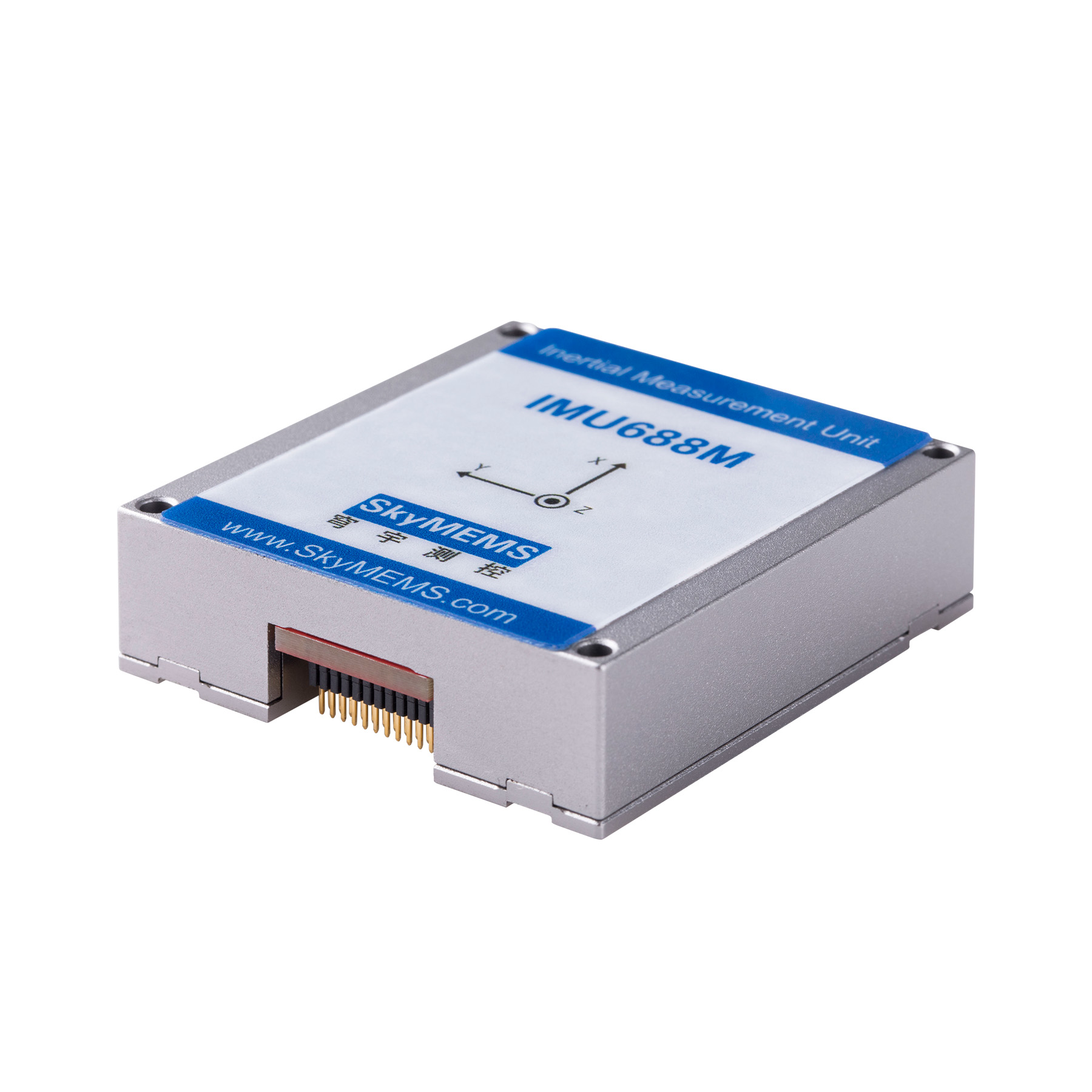

Precision IMU688 UAV IMU, compatible with ADIS16488, widely applied in tactical UAS navigation, precise guided bomb, rocket, seeker, platform stabilization, etc.

• Precision Tactical Grade 6 DoF MEMS Inertial Measurement Unit
• Compatible with ADIS16488 Interface and Protocol
• Dynamic Range: Gyro ±450°/s,  Acc ±16g
• Bias Stability: Gyro: 6°/h (GJB), Acc 0.06mg (Allan)
• Ability to Access with GNSS, Aerospcace Reliability
• Full Temperature Range Accuracy: Built-in High
• Performance Temperature Calibration andCompensation Algorithm

a rugged industrial IMU module, fully similar as ADIS16460, competitive price, widely used in unmanned rover, smart agriculture, etc.

• High Precision 6 DoF Mini IMU with Full Calibration
• Fully Similar as ADIS16460, Better Performance
• 3 Angular Rates and 3 Linear Acceleration Outputs
• Data Output Rate: 200Hz
• Range: Gyro ±400°/s, Accelerometer ±6g
• Bias Instability: Gyro 4°/h, Accelerometer ±10μg
• Compact and Light weight 23.4 x 22.4 x 7.4 (mm), <15g
• Wide Working Temperature: -40°C～+85°C

High Precision IMU20 6dof IMU, full calibration, widely used in unmanned rover, smart agriculture, AGV, platform stabilization, etc.

• High Precision 6 DoF Mini IMU with Full Calibration
• MEMS 3 Axis Accelerometers and 3 Axis Gyroscopes
• Range: Accelerometer ±6g, Gyroscope ±400dps
• Multiple Interfaces: SPI or UART
• Up to 200Hz Output Data Rate (can support max 400Hz)
• High Reliability in Harsh Environment
• Wide Operating Temperature Range: -40~+85ºC
• Small Size: 15mm * 15mm * 5 mm

•  High Precision Military 6 DoF Mini IMU
•  3 Angular Rates and 3 Linear Acceleration as well as Rotation Rate Outputs
•  Data Output Rate: 100Hz
•  Range: Gyro (X axis) ±20000°/s, Accel ±100g
•  High Overload Resistance: 3000g
•  Compact and Light weight D40*25mm, <90grams
• – Small Size: D40*25mm

– High Stability, High Reliability, High Accuracy

– High Survivability in Harsh Environment, Fully Calibrated

– Range: Acc ±10g, Gyro ±400°/s, Magnetic ±6gauss

– Bias stability: Gyro 80°/h, Acc 0.005g

– Overload Resistance:10000g, IP67 Protection

– Wide Temperature: -40°C～+85°C,

– Small Size: 45*40*40mm

– High Stability, High Reliability, High Accuracy, High

Survivability in Harsh Environment, Fully Calibrated

– Angular Range:±400°/s, Acceleration Range：±10g (ODM Supported)

– Bias Stability: Gyro 80°/h, Acc 0.005g

– Overload Resistance:10000g, IP67 Protection

– Compact Size: 38*35*28mm

– Wide Temperature: -40°C～+85°C

– Precision 6 DoF MEMS Inertial Measurement Unit

– Compatible with ADIS16488A interface and protocol

– Dynamic Range: gyro ±450°/s,  acc ±16g (ODM supported)

– Acc Bias Instability: 0.03mg, Gyro Bias Instability: 3°/h (Allen)

– Ability to Access with GNSS, Aerospcace Level Reliability

– Full Temperature Range Calibration and Compensation

– Compact size: 47*44*15mm

– High Precision 6 DoF Mini IMU with Full Calibration

– Fully Compatible with ADIS16460, Better Performance

– 3 Angular Rates and 3 Linear Acceleration Outputs

– Data Output Rate: 200Hz

– Range: Gyro ±400°/s, Accelerometer ±6g

– Bias Instability: Gyro 4°/h, Accelerometer ±10μg

– Compact and Light weight 23.4 x 22.4 x 7.4 (mm), <15g

– Wide Working Temperature: -40°C～+85°C

– Super High Performance Digital Fiber Optic Gyro – Higher Accuracy, Lower Noise and Greater Efficiency – Zero Bias Stability ≤ 0 .01 °/h (Normal …
