In an era of smart machines, drones, and self-governing controls, accurate sensing and movement monitoring become key for system output and safety. Small devices that play a big role in this change — able to measure and tell a system’s direction, speed, and acceleration at the same time. Of many choices, the SkyMEMS IMU288 Small 6DoF MEMS IMU is a great, high-performing, cheap solution that works well for many applications.
6DoF MEMS IMU: What Is It and Why Should You Care?
A 6 Degrees of Freedom (6DoF) IMU is essentially a module sensor, which gives information about:
- Angular velocity on three axes (Roll, Pitch, Yaw)
- Linear acceleration in three axes directions (X, Y, Z)
With this information, systems can precisely determine their movement and orientation at places where there is no GPS signal. This is critically important for applications in drones, robotics, underwater vehicles, and self-driving cars.
The IMU288 is a MEMS-based (Micro-Electro-Mechanical Systems) IMU, integrating a high-precision gyro and accelerometer in a miniaturized form factor. Because of MEMS technology, it achieves high performance with ultra-compact size, low power consumption, and cost efficiency.

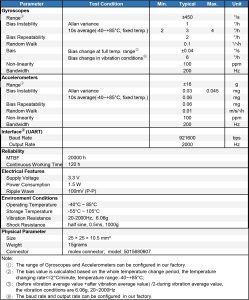

Key Performance Specs of IMU288
Not only is the IMU288 compact, but also designed to meet very rigorous demands for industrial and tactical-grade applications. Some of its core specs are:
- Gyro Dynamic Range: ±450°/s
- Accel Dynamic Range: ±16g
- Bias Instability (Allan Variance):
- Gyroscope: 1°/h
- Accelerometer: 30 μg
- Data Output Rate: Up to 2000 Hz
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 25 × 25 × 10.5 mm
- Weight: Only 15 grams
- Interface: UART Serial Communication
It has a built-in high-performance temperature compensation algorithm that ensures stability and accuracy in the full range of operating temperatures. Reliable data output under harsh environmental conditions.
Advanced design, compact build, proven components
SkyMEMS uses widely known MEMS parts, strong packaging materials, and advanced tuning methods to make the IMU288. Its light, tough design makes it good for small spaces and moving uses like drones, machines that do work automatically, handheld gadgets, and smart tools for defense.
Not like cheaper sensors used by consumers͏͏, IMU288 comes fully tuned from the factory using precise reference tools. The assembly includes strong glues͏, anti-shake designs as well as EMI shields which keep signal quality and physical strength in tough conditions

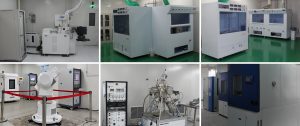

Manufacturing Excellence: 12-Step Quality Assurance
To meet the requirements of industrial, defense, and aerospace customers, SkyMEMS executes a 12-step, very rigorous quality control process. It includes:
- Screening and matching of components
- Vibration and thermal shock tests
- Calibration over the full temperature range
- Bias stability check
- Long-term aging & reliability testing
Each unit is subject to very careful testing with the aid of highly precise instruments to ensure that it will meet tactical-grade performance standards. The result is an IMU that offers precision, stability, and ruggedness — qualities that are not often found together in the miniature IMU segment.
Competitive Price with ODM Customization Support
SkyMEMS adopts a lean manufacturing model and mass production, which allows cost reduction without compromising quality. As a result, the IMU288 offers one of the most competitive price-to-performance ratios on the market.
SkyMEMS offers wide ODM customization, allowing customers to tailor the IMU288 to particular needs like:
- Other communication protocols (e.g., SPI, CAN)
- Housing and mounting options
- Extended dynamic range
- GPS or magnetometer integration
This makes the IMU288 flexible for both R&D use and final system integration in small batches or large-scale deployment.
Proven in more than 200 applications worldwide
Today, the IMU288 is used in more than 200 projects all over the world. The systems it powers are within:
Unmanned Aerial Vehicles (UAVs)
The drone of any size gets precise orientation data during flight from IMU288. It supports payload control and stabilization in-flight for drones of all sizes.
Autonomous Ground Vehicles (AGVs/UGVs)
Underground, tunnel, or GPS-denied environment requires supporting equipment for reliable dead-reckoning navigation besides LIDAR or odometry sensor fusion.
Gimbals and Platform Stabilization
Camera systems, radar turrets, and antennas get real-time help from the IMU288 for dynamic steadying and jitter fixing.
Defense and Aerospace Uses
Its tactical-level accuracy and trustworthiness make IMU288 good for use in guided weapons, aiming systems, small satellites, and more.
Industrial Machines
In factory automation or storage warehouse robots, IMU288 allows safe, smooth, and exact motion control right at the moment.
Full Technical Help and Delivery All Over the World
SkyMEMS not only produces advanced sensors but also shares the journey of integration and deployment with its customers. The dedicated engineering team offers:
- Pre-sales consulting and product choice guidance
- Integration support for both hardware and software
- Communication protocol configuration
- Firmware customization upon request
- Rapid troubleshooting and technical guidance
SkyMEMS shares a 24/7 Technical Support Team with all remote assistance and engineering feedback to ensure that expert help is always available when needed.
Why Choose IMU288?
The IMU288 Miniature 6DoF MEMS IMU is an ideal balance of:
- Miniature design for modern embedded systems
- High-precision inertial sensing comparable to much larger units
- Wide operating conditions, including full industrial temperature range
- ODM flexibility and excellent cost-effectiveness
- Field-proven reliability in commercial and tactical applications
Whether you are making next-gen self-driving cars or building precise steadying platforms, IMU288 is your reliable motion sensing mate.
