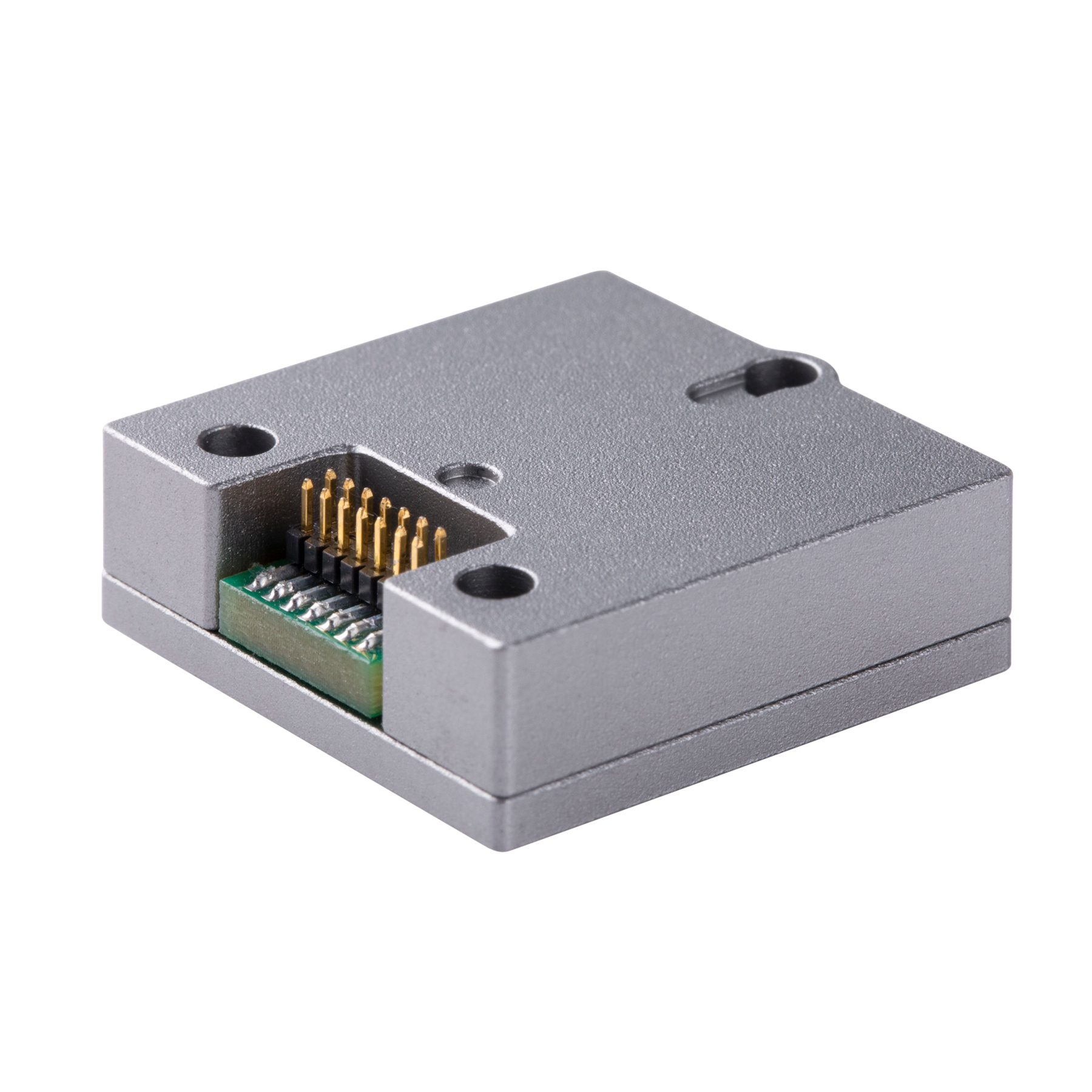

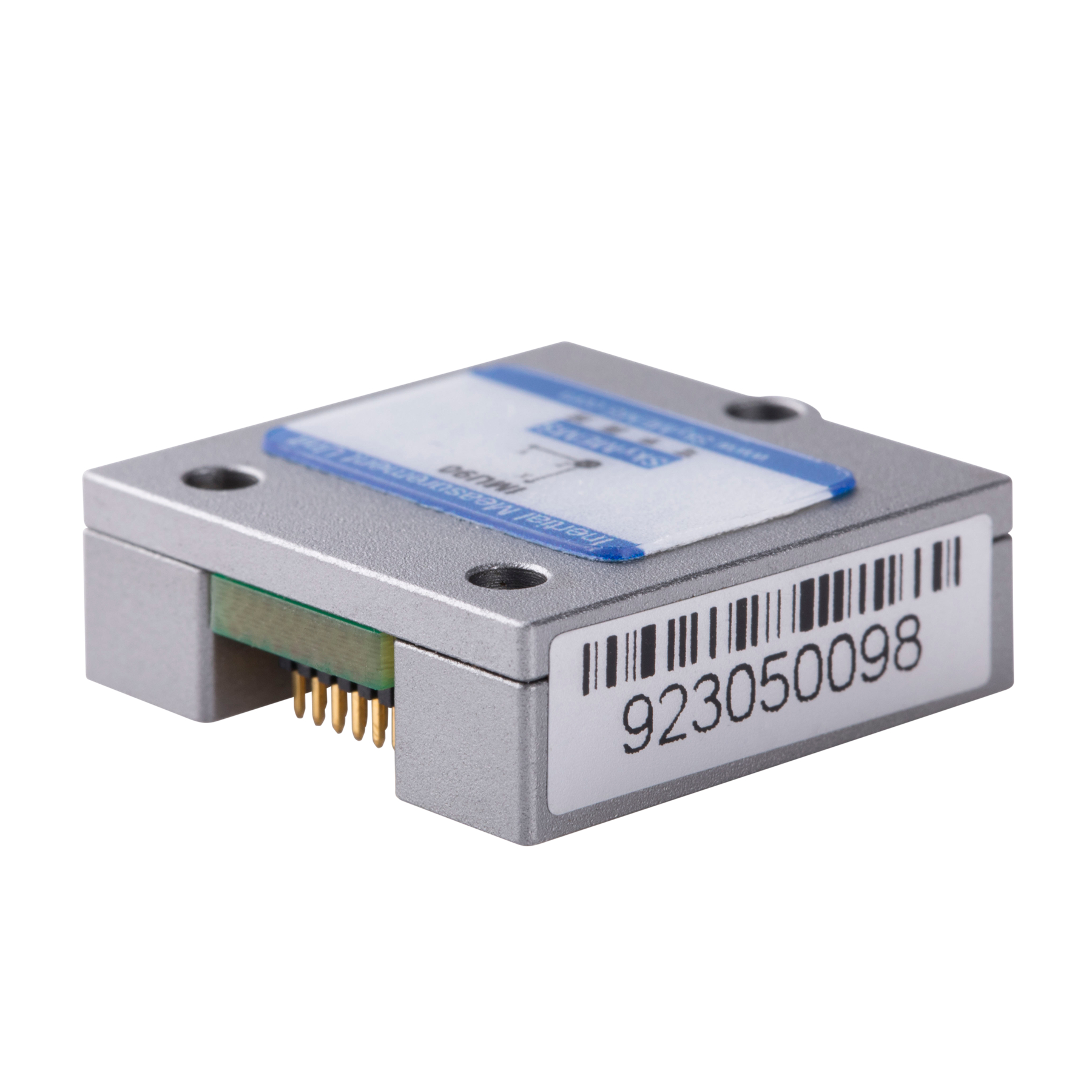

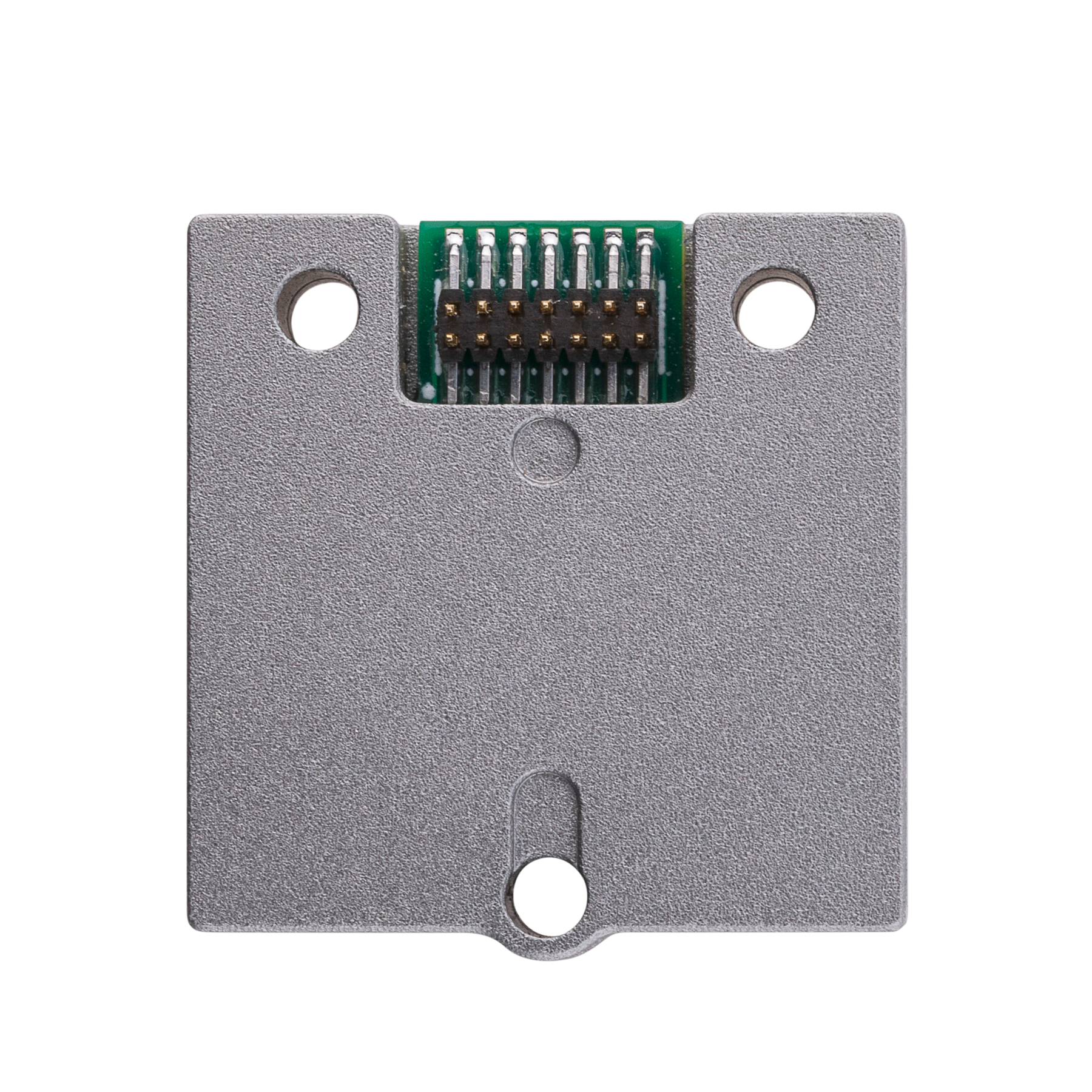

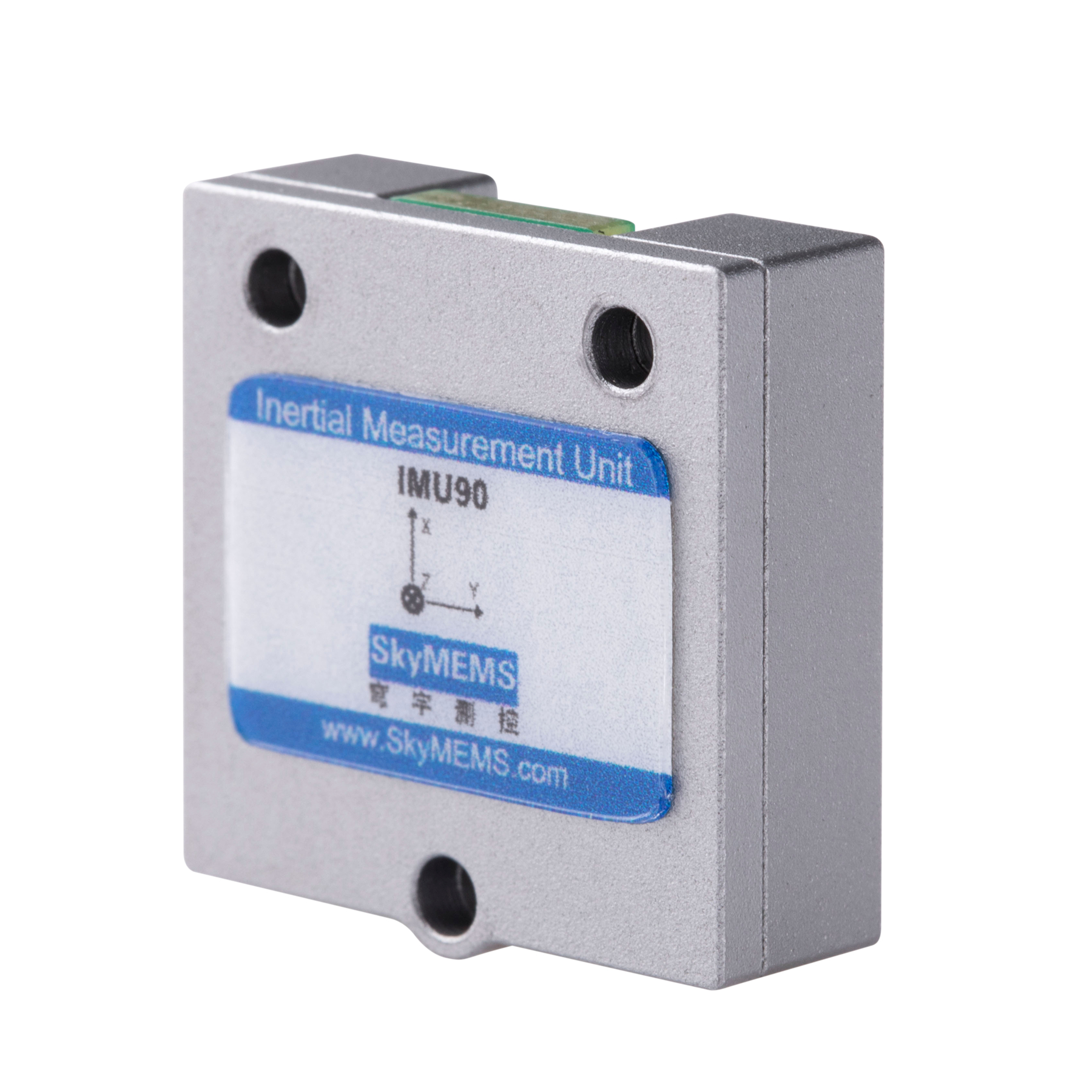

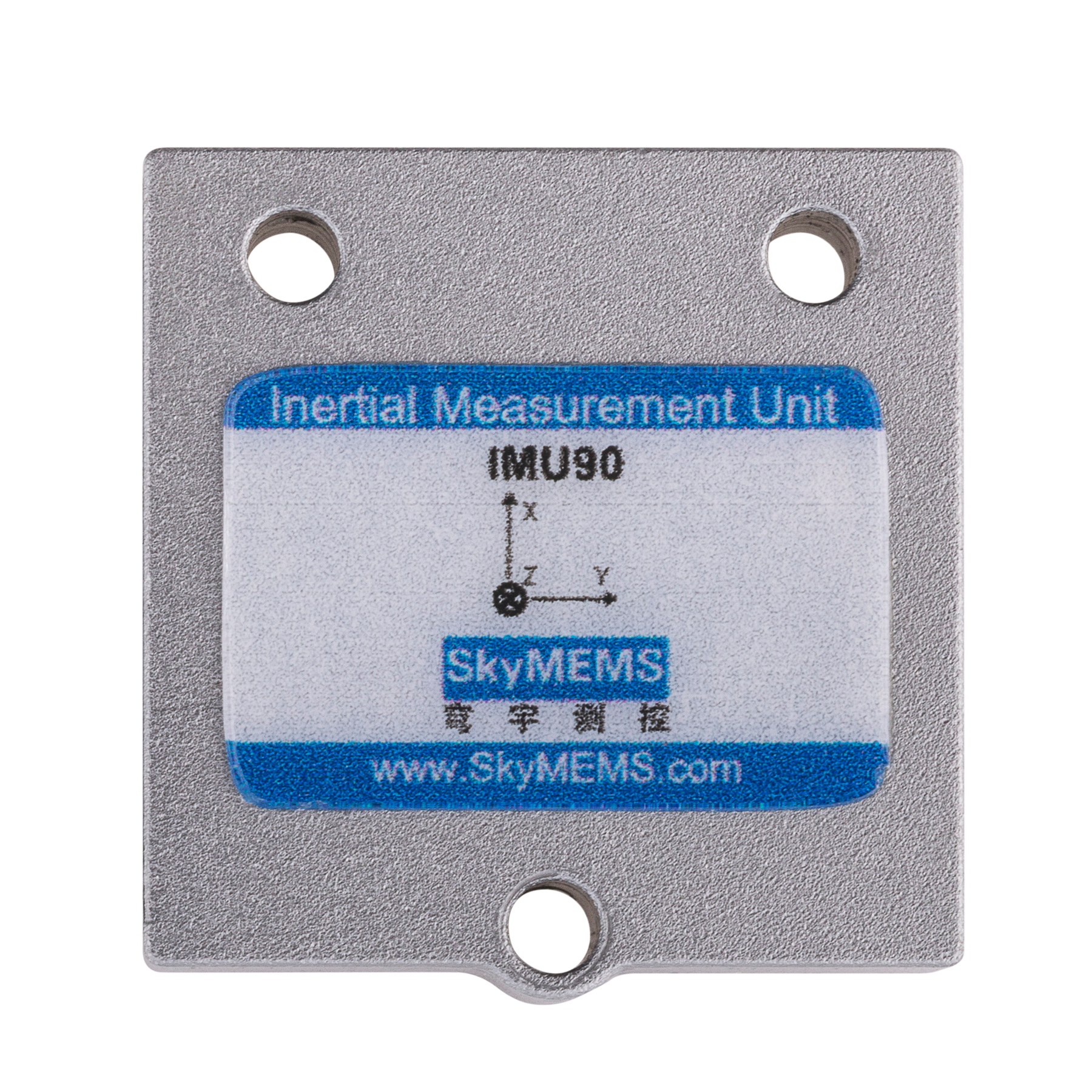

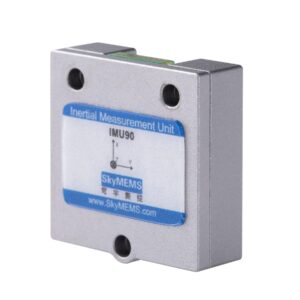

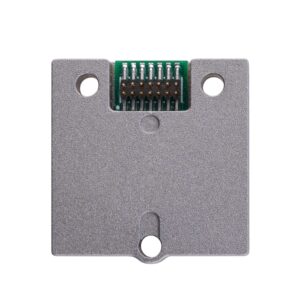

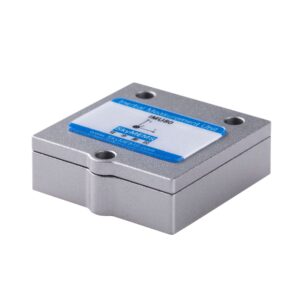

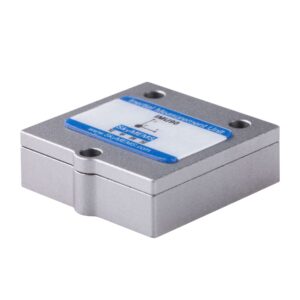

IMU90 High Performance Inertial Measurement Unit is a rugged industrial inertial navigation system providing precise yaw, pitch, roll as well as 6-axis outputs of angular rate and acceleration at 1000Hz. IMU90 adopts MEMS-based inertial sensors and extended Kalman filter algorithm, which provides super cost-effective solution for customers.
IMU90 Inertial Measurement Unit enjoys small size and light weight, and it is housed in an ultra-durable and compact aluminum housing, it enjoys high reliability in harsh environment, it has been widely applied in dynamic control systems and attitude systems including Unmanned Aircraft and ROVs, Smart Agriculture, Machine Control, Platform Stabilization, AGV, robotics, etc.
Technical Specifications
Parameter
Test Condition
Min.
Typical
Max.
Unit
Gyroscopes
Range①
±500
°/s
Sensitivity
16-bit data format
0.02
°/s/LSB
32-bit data format
3.0518×10-7
°/s/LSB
Bias Instability
Allan variance
1
1.5
2
°/h
Initial Bias Error
0.01
0.03
0.1
°/s
Random Walk
0.1
0.12
0.15
°/√h
Scale Factor Accuracy
0.1
%
Non-linearity
Full scale (FS)
0.01
%FS
Resolution
0.005
°/s
Bandwidth
150
Hz
Accelerometers
Range①
±16
g
Sensitivity
16-bit data format
0.0005
g/LSB
32-bit data format
7.6294×10-9
g/LSB
Bias Instability
Allan variance
25
35
45
ug
Initial Bias Error
3
4
5
mg
Random Walk
0.01
0.025
0.04
m/s/√h
Scale Factor Accuracy
0.1
%
Non-linearity
Full scale (FS)
0.01
%FS
Resolution
0.05
mg
Bandwidth
150
Hz
Interface②
UART③
Baud Rate
115200
bps
Output Rate
200
Hz
SPI
Serial Clock Frequency
10
MHz
Output Rate
1000
Hz
Electrical Features
Supply Voltage
3.3 V
Power Consumption
< 0.15 W
Environment Conditions
Operating Temperature
-40°C ~ 85°C
Storage Temperature
-55°C ~ 100°C
Housing Material
aluminum
Physical Parameter
Size
23.3 × 22.4 × 7.5 mm
Weight
< 15 grams
Connector
7×2 pins
Note:
g = 9.80665 m/s2；
①：The range of Gyroscopes and Accelerometers can be configured in our factory.
②：SPI or CAN communication can be selected in our factory.
③：ODR = 500Hz（Baud Rate=230400bps）or ODR = 1000Hz（Baud Rate=460800bps）can be configured via UART command
Typical Application
IMU90 Inertial Measurement Unit is a high performance 6 DoF MEMS-based inertial sensors, which has been widely used in the following fields:
– Unmanned Aircraft and ROVs – Smart Agriculture
– Robotics Control – AGV
IMU90 Inertial Measurement Unit widely used in Unmanned Aircraft
UAV is unmanned aerial vehicle, commonly known as a drone, is an aircraft without a human pilot aboard. The flight of UAVs may operate with various degrees of autonomy: either under remote control by a human operator or autonomously by onboard computers.
SkyMEMS IMU90 Inertial Measurement Unit is an industrial level IMU module, it can provide continuous acceleration and gyro angle for the UAV, which has been widely used in small UAV flight control.
IMU90 Inertial Measurement Unit widely used in smart agriculture
Smart agriculture has changed the way farmers work their land. Real-time location information also allows farmers to maximize field utilization by avoiding missed or overlapping planting and harvesting efforts while minimizing time and fuel usage through optimized travel. Such systems can also provide semi-autonomous piloting of farm machinery to reduce driver fatigue and allow efficient operation even in low visibility conditions such as dust, fog, rain, and darkness. Currently more than 50% of farmland, great and small in extent, now utilizes smart agriculture methods with adoption continually increasing.
Because they can accurately measure the movement of objects in three dimensions, IMU modules are essential to modern society. They are utilized in many more applications than just the automatic control and autonomous driving on tractors and other agricultural machinery used for precision agriculture. Examples include orientation measurement during autonomous driving, drone orientation control, camera and antenna vibration detection and control, and controlling the angle and attitude of blades and arms on construction and mining equipment. The high-precision detection of tiny changes in movement, which are too small for the human eye to detect, makes IMUs vital to high-precision data measurement and control of machinery.
SkyMEMS’s IMU modules use high-performance MEMS sensors that features excellent stability, low power consumption and low noise characteristics.. And their linearity characteristics enable high-precision measurement of various kinds of movement over a wide range from slow to fast. This allows them to be used in a broad array of smart agriculture applications.
IMU90 Inertial Measurement Unit widely used in robotics control system
IMU90 Inertial Measurement Unit can work in dynamic environment, and provide accurate angle and acceleration information, which is widely used in robotics control system.
Product Advantages
Why Selecting IMU90 Inertial Measurement Unit?
IMU90 Inertial Measurement Unit is designed and produced by SkyMEMS, it enjoys high performance and accuracy, and high reliability with competitive price. It is a popular inertial measurement unit sensor in the market, which has the main following advantages:
1. High Accuracy, High Performance and Powerful Functions
IMU90 Inertial Measurement Unit is a precision 6 DoF MEMS inertial measurement unit, which enjoys excellent technical advantages:
Precision 6 DoF Mini MEMS IMU with Full Calibration
Range (Typical): Gyro ±500°/s, Acc ±16g
Bias Instability (Allan): Gyro 1.5°/h, Accel 35ug
Data Output Rate: UART, 1000Hz; SPI, 1000Hz
Power Supply: 3.3 VDC
Compact and Light weight, 23.3 × 22.4 × 7.5 mm, < 15 grams
Wide Working Temperature: -40°C～+85°C
IMU90 Inertial Measurement Unit adopts big brand components, high-class glue encapsulation, advanced production craft, and fully calibrated, which assured that our products have real actual precise and perfect performance.
2. Aerospace Level Reliability, 12-step Strictest Quality Control

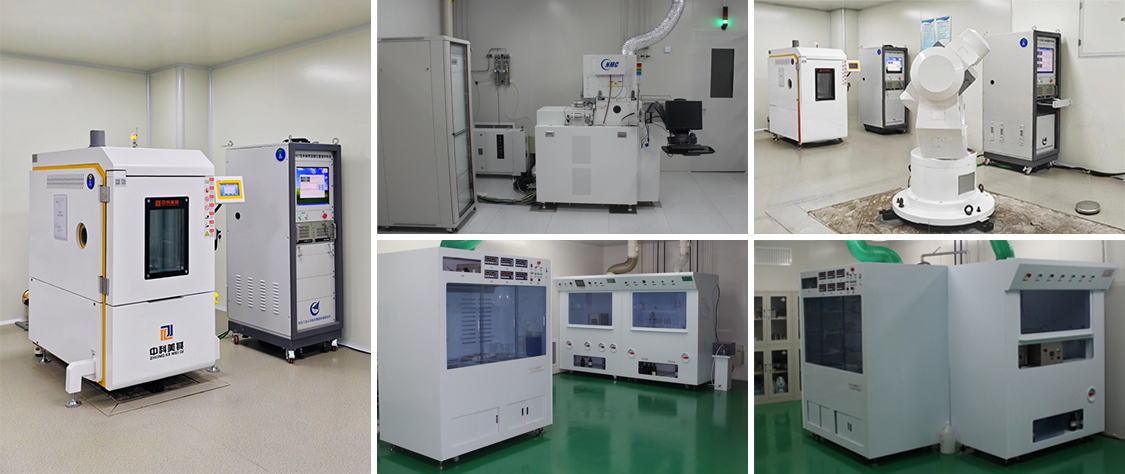

We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.
3. Competitive Price, ODM supported
With strict cost control and massive production, we can provide the most competitive cost-effective prices, and we have abundant ODM service experience for customers around the world, that is why we can build up long term win-win cooperation with our customers.
4. Successful Applications in Tens of Fields, 1000+ Customers are Using
We are continuously focusing on MEMS measurement & control technologies, and have developed the most advanced inertial measurement unit IMU90. and IMU90 has been widely used in UAS navigation & control, smart agriculture, platform stabilization, movement control system, robotics control, antenna pointing, etc. and now more than 1000 customers are using our IMU around the world.
5. World-class Production Line, Fast Delivery
We have the world class production line to assure that the production procedures are scientific, precise, and normative, which also can assure our products to be fast delivered.
6. Service with Heart, Professional Technical Support
We have the professional technical support engineer team, which can provide 24-hour technical support and excellent after-sale service.
Serving customers with heart is the principle of SkyMEMS, Customer demand is the fundamental driving force of our development.
We treat our customers with heart, customers’ satisfaction is the direction and target of SkyMEMS. Through continuously technology innovation and service upgrading, we will realize win-win cooperation with customers.
FAQ
Q: What is the Working Principle of IMU sensor?
A: IMUs operate by use of reference data, bias values from an initial starting point, and calculate changes to these values using its integrated sensors. A central processing unit calculates directional information; position, speed, orientation, and direction of movement, at a given time in space using the IMU. The sensors suffer from orientation drift as they calculate these variables using a process known as dead-reckoning and are subject to accumulative errors.
