With the rapid development of aerospace, autonomous driving, drones and other fields, the demand for precise attitude and heading control is also increasing. In these applications, the Attitude and Heading Reference System (AHRS) plays a vital role as a key navigation component.
Core Technology and Working Principle of AHRS
Before explaining AHRS, we first need to understand its basic composition and working principle. The main task of AHRS is to provide real-time attitude (including roll angle roll, pitch angle pitch and yaw angle yaw) information, which is essential for the control systems of aircraft, drones, ships, vehicles, etc.
AHRS is usually composed of three types of core sensors: gyroscope, accelerometer and magnetometer. These sensors cooperate with each other to obtain motion and angle data on three axes (X, Y, Z axis). Among them, the gyroscope measures the angular velocity of the carrier, the accelerometer senses the acceleration of the carrier, and the magnetometer is used to correct the attitude information to ensure accuracy.
Unlike traditional mechanical gyroscopes, AHRS uses micro-electromechanical systems (MEMS) technology, which makes the system not only more compact, but also significantly improves accuracy and reliability. MEMS technology is built on tiny sensors, which makes AHRS more advantageous in size and weight, and is very suitable for high-precision, limited-volume applications.
Difference between AHRS and IMU
Although both AHRS and inertial measurement units (IMUs) are used to provide attitude and heading data, their functions and working methods are different. IMU calculates attitude and heading information by collecting acceleration and angular velocity data in all directions and passing these data to external devices for processing. In short, IMU only provides sensor data, and subsequent data processing requires other computing devices.
AHRS has a built-in processing unit that can directly calculate attitude and heading information and provide usable results. This means that AHRS is not just a data collector, it also has real-time data processing capabilities, which can provide immediately available attitude information without further processing by external devices. Therefore, AHRS is more efficient, more responsive, and more suitable for dynamic control systems that require instant feedback.
Technical advantages of SkyMEMS attitude and heading reference system

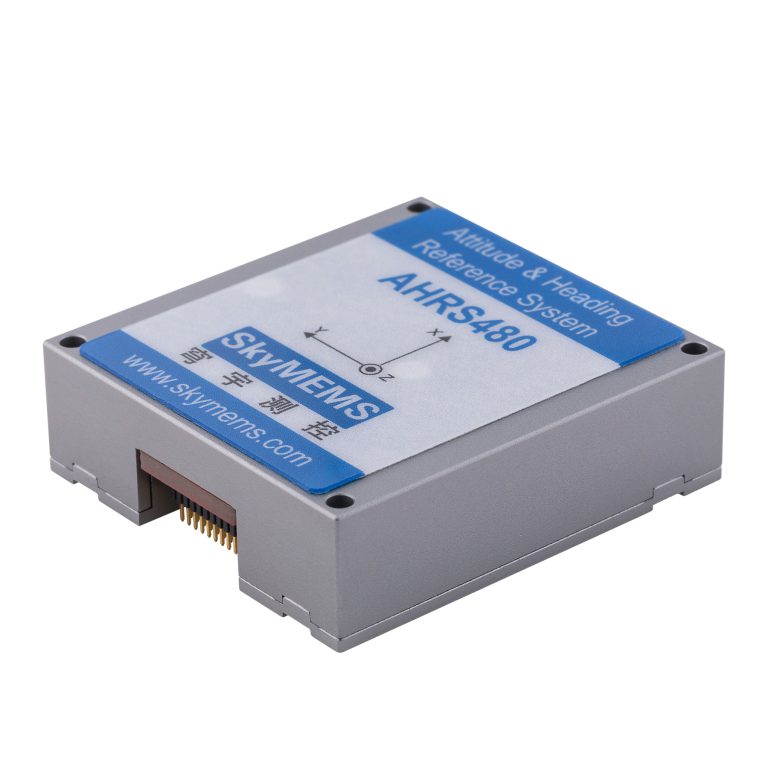

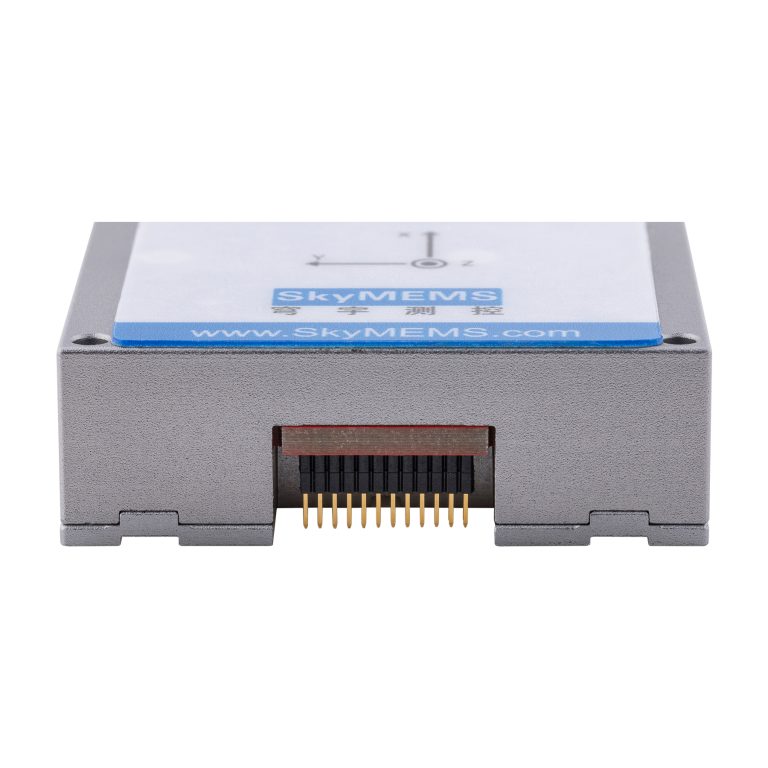

The AHRS system developed by SkyMEMS has been widely used in many fields for its excellent performance. The system integrates advanced sensors and algorithms to accurately measure the three-axis attitude angle (yaw, pitch, roll). The core features of the SkyMEMS AHRS system include:
High-precision three-axis angular velocity measurement: The three-axis angular velocity data is obtained through the gyroscope to accurately calculate the attitude angle. The accelerometer and magnetometer continuously correct the calculation results to ensure the accuracy of the data.
Dynamic error compensation: Through the Kalman filter and complementary filter, SkyMEMS AHRS can correct system errors in real time to ensure high stability in dynamic environments. Even under extreme temperature and environmental conditions, the system can always maintain stable and accurate performance.
Full temperature operating range: SkyMEMS AHRS can work stably in the temperature range of -45°C to +85°C, which makes it widely used in precise control in extreme environments such as aviation and aerospace.
Miniaturization and low power consumption: SkyMEMS AHRS system is small and lightweight, which is very suitable for applications with strict space and weight requirements, such as drones, aircraft, etc. At the same time, it also has the advantage of low power consumption, which prolongs the service life of the system.
Wide application fields of AHRS
As the technology continues to mature, AHRS has been widely used in many industries and fields. The following are some typical application scenarios:
UAVs and unmanned aerial vehicles: The application of AHRS in drones and unmanned aerial vehicles is particularly important. The flight stability and precise control of drones rely on real-time attitude data. AHRS ensures that drones maintain stable flight in complex environments by providing high-precision attitude and heading information. In addition, AHRS can also support autonomous flight missions of drones, such as path planning, automatic obstacle avoidance, etc.
Aerospace: In traditional aircraft and modern aircraft, AHRS is widely used in flight control systems. It can provide real-time attitude information of the aircraft to help pilots and automation systems to make heading corrections and flight stability control.
Ships and navigation: For ships and offshore platforms, the precise attitude data provided by AHRS is particularly important in harsh sea conditions. It can help the ship control system monitor and adjust the hull attitude in real time, thereby ensuring the safety and stability of navigation.
Ground vehicles and autonomous driving: AHRS is also used in ground transportation, especially in the field of autonomous driving. By providing accurate vehicle attitude data, AHRS can help the autonomous driving system better understand the surrounding environment and make more accurate decisions.
Military and aerospace navigation: In the military field, AHRS systems are often used in conjunction with inertial navigation systems for systems with high precision requirements such as missiles and rockets to provide accurate positioning and heading data to ensure accurate strikes on targets.
Future development trends
With the continuous development of MEMS technology, artificial intelligence and big data analysis, the application prospects of AHRS are very broad. In the future, AHRS will not only be an attitude measurement system, but also an intelligent system with comprehensive environmental perception and self-adjustment. The following are some trends in future development:
Intelligence and adaptive adjustment: The future AHRS will be able to make adaptive adjustments based on environmental changes, such as dynamically optimizing attitude control through machine learning algorithms to improve the intelligence level of the system.
Multi-sensor fusion: With the advancement of sensor technology, future AHRS will likely integrate more types of sensor data, such as temperature, humidity, air pressure, etc., thereby improving the accuracy and applicability of the system.
Higher integration and lower power consumption: With the development of miniaturization technology, AHRS systems will be further miniaturized to adapt to more applications with strict space and weight requirements, such as drones and autonomous vehicles.
SkyMEMS Advancing AHRS Technology
As a high-precision and high-reliability navigation technology, attitude and heading reference system (AHRS) has been widely used in aviation, aerospace, autonomous driving, drones and other fields. With the continuous advancement of MEMS technology, AHRS will become more intelligent and precise, providing a more stable flight and control experience for various carriers. Technology companies such as SkyMEMS will continue to promote the development of AHRS technology, continuously provide customers with higher performance solutions, and help all walks of life achieve more accurate and intelligent control systems.
