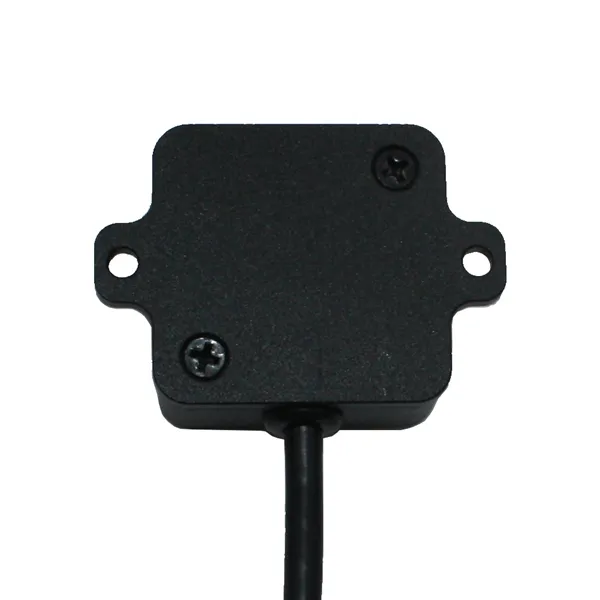

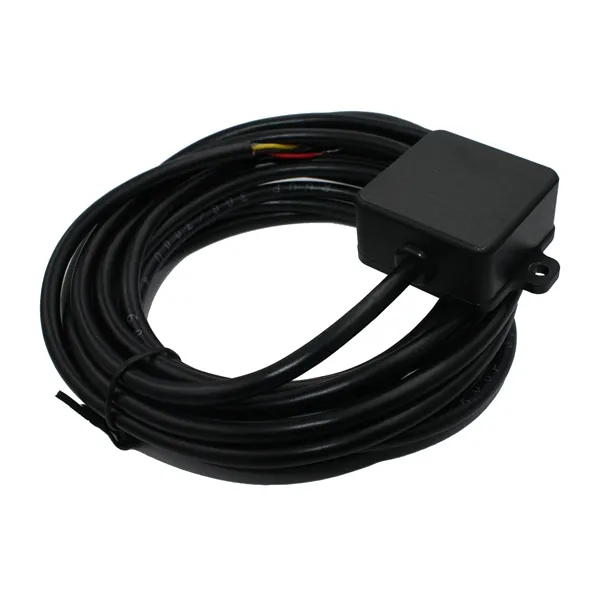

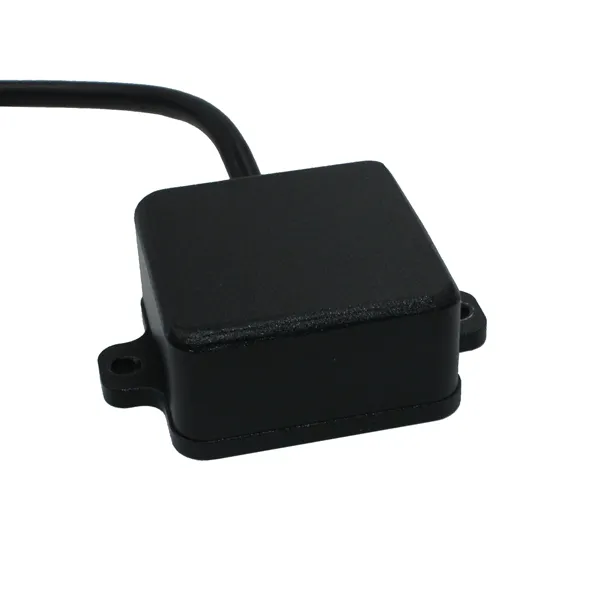

DMA08

Low cost 3 axis digital MEMS accelerometers with ±8g range, widely used in motor monitor and vibration monitoring.

  • Low Cost 3 Axis Digital MEMS Accelerometers
  • Range: ±8g, Bias Stability: < 5mg, Resolution: 0.5mg
  • Multiple Interfaces: RS232 or RS485 Modbus
  • Non-linearity: ≤ 0.2%FS
  • Up to 200Hz Data Refreshing Rate (can support 1kHz)
  • Wider Input Voltage: 5~30VDC
  • High Reliability in Harsh Environment
  • Wide Operating Temperature Range: -40~+85ºC

Brief Introduction

DMA08 series low cost 3 axis digital MEMS accelerometers are based on MEMS technologies, which adopt advanced signal processing, A/D conversion, digital filter, temperature compensation and installation error compensation, then output the accurate 3-axis acceleration data. the measurement range is ±8g.

DMA08 series digital MEMS accelerometers has passed the strictest tests, it enjoys high performance in noise, bias stability, non-linearity, repeatability, temperature drift, shock proof, etc., DMA08 is an ideal option for motor monitor, vibration monitoring, test platform of vibration and shocking, structure health monitoring, etc.

Technical Specifications

Parameter            ValueCommentsEnvironment ConditionsElectrical Features

Min Typical Max
Range: X, Y, Z -8g +8g
Bias Instability 5μg 10μg 15μg
Bias Stability at Full Temperature Range 3mg 5mg 10mg
Resolution 0.5mg
Non-linearity 0.2%FS
Cross-axis Sensitivity 0.5%FS
Random Walk 0.03m/s/√hr 0.05m/s/√hr 0.1m/s/√hr
Bandwidth X, Y axis: 684Hz, Z axis: 353Hz
Working Temperature -40~+85°C
Storage Temperature -55~+100°C
Housing Material  aluminum black oxidation
Input Power Supply 5~30VDC
Power Consumption <3W
Interface RS232 RS485 modbus optional
Output Frequency 2~200Hz settable
Physical Parameter
Size 50 x 36 x 16mm
Weight <23grams

Typical Application

DMA08 series low cost 3 axis digital MEMS accelerometer is a competitive accelerometer sensor, DMA08 assures confident and accurate vibration measurements in rugged environments, which has been widely used in the following fields:

– Motor Monitor

– Vibration Monitoring

– Test Platform of Vibration and Shocking

– Structure Health Monitoring

DMA08 series low cost 3 axis digital MEMS accelerometers widely used in Motor Monitor

SkyMEMS accelerometer sensors are based on MEMS accelerometers, which offer high performances in terms of size, power, reliability, long-term stability, signal to noise and robustness.

SkyMEMS accelerometer has been widely used in motor monitor, they are used to monitor several types of mechanical motions such as acceleration and vibration.

DMA08 Series Low Cost 3 Axis Digital MEMS Accelerometers widely used in Vibration Monitoring

SkyMEMS accelerometers provides low noise and high data output frequency accelerometers, it can accurately measure the vibration changes, which are widely used in vibration monitoring.

DMA08 Series Low Cost 3 Axis Digital MEMS Accelerometers widely used in Structure Health Monitoring

The development of safety systems and continuous monitoring of buildings, bridges, railways is very important to achieve these purposes. MEMS accelerometer sensors are used in structural inspection. If the high building vibration signal is abnormal, the monitoring system can get the signal and send out alarm.

SkyMEMS accelerometers can accurately measure the vibration changes, which are widely used in the structure health monitoring systems.

Product Advantages

Why Selecting DMA08 Low Cost 3 Axis Digital MEMS Accelerometers?

DMA08 Low Cost 3 Axis Digital MEMS Accelerometers are designed and produced by SkyMEMS, it enjoys high performance and accuracy, and high reliability with competitive price. It is a popular accelerometer sensor in the market, which has the main following advantages:

  1. High Accuracy, High Performance and Powerful Functions

DMA08 low cost 3 axis digital MEMS accelerometers enjoys excellent technical advantages:

– Low Cost 3 Axis Digital MEMS Accelerometers

– Range:±8g, Bias Stability: < 5mg, Resolution: 0.5mg

– Multiple Interfaces: RS232 or RS485 Modbus

– Non-linearity: ≤ 0.2%FS

– Up to 200Hz Data Refreshing Rate (can support 1kHz)

– Wider Input Voltage: 5~30VDC

– High Reliability in Harsh Environment

– Wide Operating Temperature Range: -40~+85ºC

DMA08 low cost 3 axis digital MEMS accelerometers adopts big brand components, advanced production craft, and fully calibrated, which assured that our products have real actual precise and perfect performance.

  1. Aerospace Level Reliability, 12-step Strictest Quality Control

We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.

  1. Competitive Price, ODM supported

With strict cost control and massive production, we can provide the most competitive cost effective prices, and we have abundant ODM service experience for customers around the world, that is why we can build up long term win-win cooperation with our customers.

  1. Successful Applications in 10+ Fields, 1000+ Customers are Using

We are continuously focusing on MEMS measurement & control technologies, and have developed the most cost-effective MEMS accelerometer DMA08. and DMA08 has been widely used in motor monitor, vibration monitoring, test platform of vibration and shocking, structure health monitoring, etc. and now more than 1000 customers are using our MEMS accelerometer around the world.

  1. World-class Production Line, Fast Delivery

We have the world class production line to assure that the production procedures are scientific, precise, and normative, which also can assure our products to be fast delivered.

  1. Service with Heart, Professional Technical Support

We have the professional technical support engineer team, which can provide 24-hour technical support and excellent after-sale service.

Serving customers with heart is the principle of SkyMEMS, Customer demand is the fundamental driving force of our development.

We treat our customers with heart, customers’ satisfaction is the direction and target of SkyMEMS. Through continuously technology innovation and service upgrading, we will realize win-win cooperation with customers.



FAQ

Q: What does the MEMS accelerometer actually measure?

A: An accelerometer is an electromechanical device that measures acceleration forces. These forces may be static, like the constant force of gravity pulling at our feet, or they could be dynamic – caused by moving or vibrating the accelerometer. They developed MEMS (micro electromechanical systems) accelerometers.

Q: What is MEMS accelerometer?

A: MEMS stands for micro electro mechanical system and applies to any sensor manufactured using microelectronic fabrication techniques. These techniques create mechanical sensing structures of microscopic size, typically on silicon. When coupled with microelectronic circuits, MEMS sensors can be used to measure physical parameters such as acceleration. There are two types of MEMS accelerometers: variable capacitive and piezoresistive. Variable capacitive (VC) MEMS accelerometers are lower range, high sensitivity devices used for structural monitoring and constant acceleration measurements. Piezoresistive (PR) MEMS accelerometers are higher range, low sensitivity devices used in shock and blast applications.

Q: How does a MEMS accelerometer sensor work?

A: An accelerometer is an electromechanical device that measures both static (gravity) and dynamic (motion or vibration) accelerations. The development of MEMS technology has revolutionized the original accelerometer applications, making them smaller, lower power and more accurate. MEMS accelerometers today may be found not only in industrial and mobile applications, but also in safety critical aeronautical instruments, tactical guidance systems.

Most accelerometers are Micro-Electro-Mechanical Sensors (MEMS). The basic principle of operation behind the MEMS accelerometer is the displacement of a small proof mass etched into the silicon surface of the integrated circuit and suspended by small beams.

Q: How about the delivery time?

A: for our standard model, if we have them in stock, only need 2~3days to re-test before shipping, if it is out of stock, then need around 2 weeks to arrange the production and tests. For the ODM electronic product, if needing to modify the structure, it will need around 3~4 weeks to arrange the production and tests.

Q: How to arrange the payment?

A: about the payment, please pay to our company account, the beneficiary’s name: NANJING SKY MEMS TECHNOLOGY CO., LTD.  And our email is only @skymems.com to contact with u formally. To notice this to avoid the loss.
