Starts from the Best Quality

High end closed-loop MEMS accelerometer chip, specially designed for vibration measurements: seismic monitor, micro-vibration monitoring, etc.

• Range: ±2g~±30g, Excellent Bias Stability
• Output: Differential Output / Single-Ended Output
• Very Low Noise: 1.2μg/√Hz for ±2g Range (typical)
• Input Power Supply: 4.75~5.25V
• Embedded Self-Test Function and Temperature Sensor
• Embedded Precision Reference Voltage
• Shock Survivability: 6000g, Vibration Resistance
• Wide Operating Temperature Range: -40~+125°C

– Closed Loop Structure MEMS Capacitive Accelerometer

– Range:±2g, Excellent Bias Stability

– Dynamic Range: ≥110dB

– Bandwidth: ≥1KHz (Typical Value, -3dB)

– Low Noise: ≤1.0μgrms/√Hz

– Non-linearity: 0.1%FS (Full Range)

– Extremely Reliable in Harsh Environment

– Wide Operating Temperature Range: -40~+85ºC

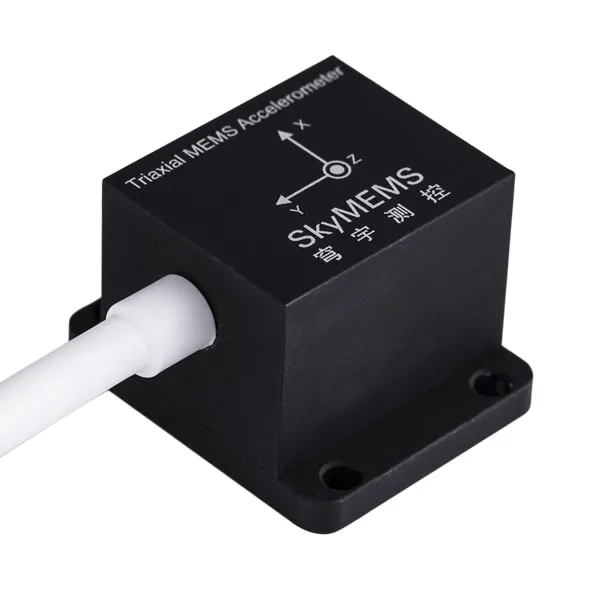

Single/Dual/Triaxial MEMS Capacitive Accelerometer Sensor, ultra-low noise: 1ug, dynamic range: 110dB, widely used in vibration monitoring, etc.

• Closed Loop Structure MEMS Capacitive Accelerometer
• Range: ±2g, ±5g, ±10g, ±30g, Excellent Bias Stability
• Dynamic Range: ≥110dB,
• Bandwidth: MAS3012-2 ≥1KHz (Typical Value, -3dB)
• Low Noise: MAS3012-2≤1.0μgrms/√Hz
• Non-linearity: 0.1%FS (Full Range)
• Extremely Reliable in Harsh Environment
• Wide Operating Temperature Range: -40~+85ºC

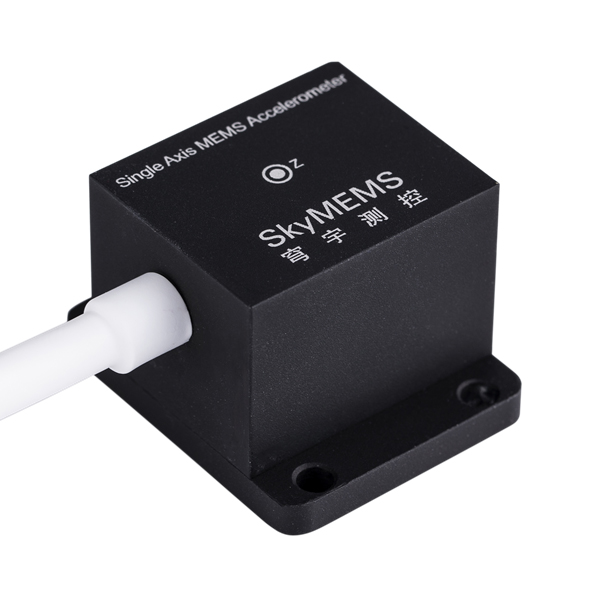

– Single Axis MEMS Capacitive Accelerometer

– Range:±2g, Excellent Bias Stability

– Output: Differential Output / Single-Ended Output

– Dynamic Range: ≥100dB, Bandwidth (-3dB): 200Hz

– Low Noise: ≤2.5μgrms/√Hz

– Non-linearity: 0.1%FS (Full Range)

– Extremely Reliable in Harsh Environment

– Wide Operating Temperature Range: -40~+85°C
