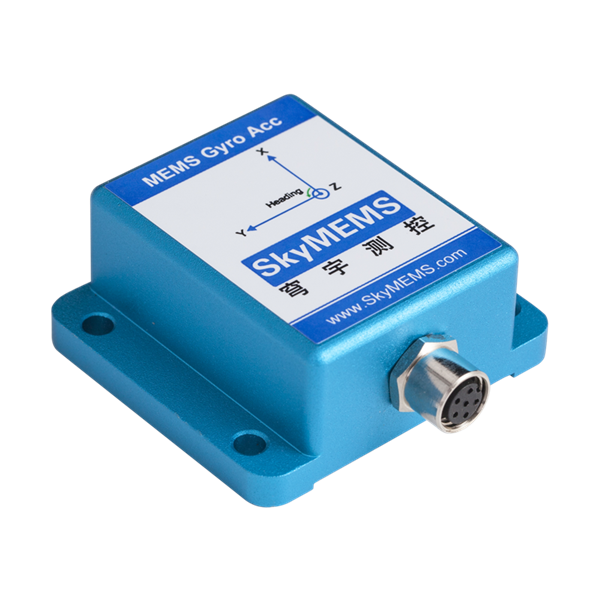

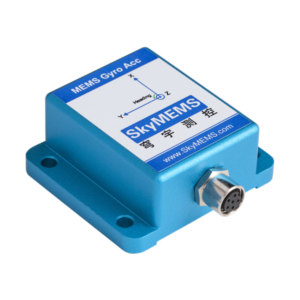

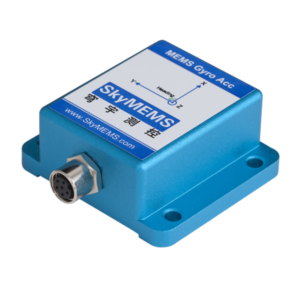

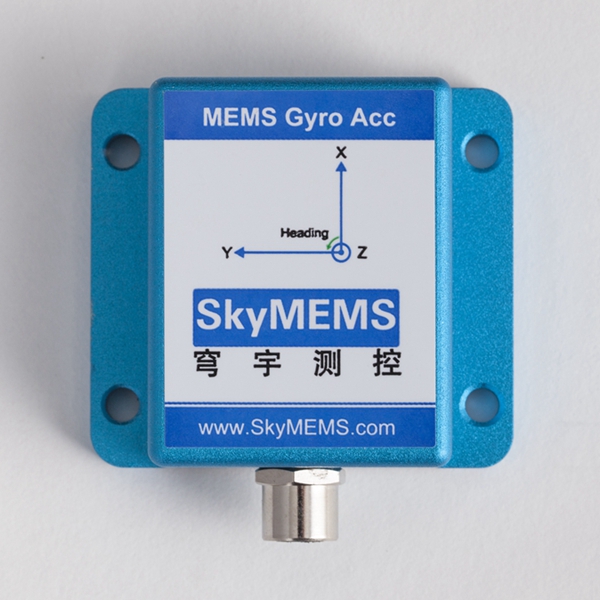

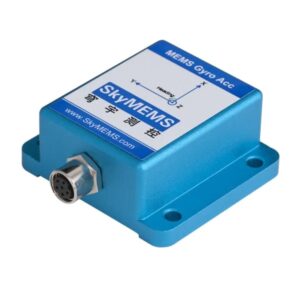

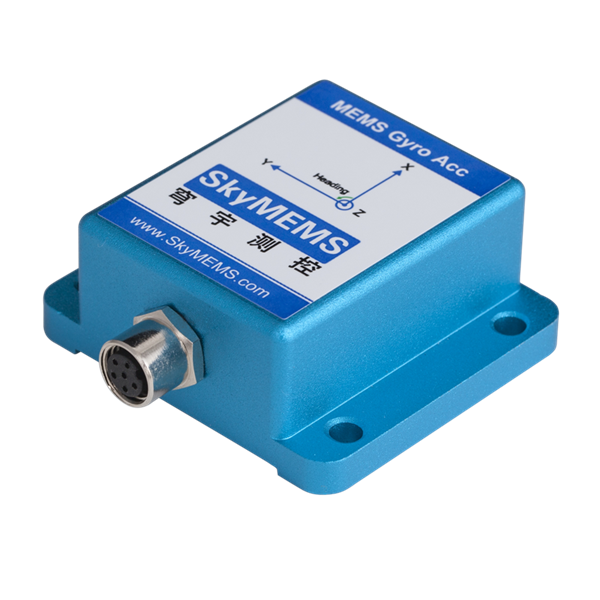

MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer

– Cost Effective Z Axis MEMS Gyro with 3 Accelerometers

– Heading: Diverging 0.5°/hour

– Range: Acc ±2g, Gyro ±300°/s,(ODM Supported)

– Wide Input Power Range: 5~24VDC

– Fully Calibrated and Error Compensation

– High Survivability in Harsh Environment, IP67

– Compact and Lightweight: 50 x 45 x 21mm, 70grams

– Wide Working Temperature: -40°C~+85°C

Brief Introduction

Technical Specifications

Typical Application

MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer is a low cost MEMS sensor which provides accurate heading direction and accelerations, it has been widely used in the following fields:
– Robotics
– Industrial Control
– Platform Stabilization
– Antenna Pointing

MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer widely used in robotics
MEMS gyros are small, inexpensive sensors that measure angular velocity. The units of angular velocity are measured in degrees per second (°/s) or revolutions per second (RPS). Angular velocity is simply a measurement of speed of rotation.
SkyMEMS MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer is cost effective MEMS gyro sensor, which is widely used to balance a robot, the MEMS gyroscope can be used to measure rotation from the balanced position and send corrections to a motor.

MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer widely used in AGV
AGV is an automated guided vehicle or automatic guided vehicle, which is a mobile robot that follows markers or wires in the floor, or uses vision or lasers. They are most often used in industrial applications to move materials around a manufacturing facility.
MEMS gyro can provide low cost solution for AGV to finding direction, MGA1000 MEMS gyro enjoys low cost, high performance, it has been widely used in AGV applications.

MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer widely used in Satellite Antenna Pointing
Stabilized antennas are key for dynamic communication – they have to remain pointed at the satellite in order to ensure a constant flow of data, with regulations stating that an accuracy better than 0.5 is essential to maintain an active transmission.
These requirements highlight the need for precise, highly accurate measurements for altitude and angular rate. This means that the antenna has to receive input from at least one orientation sensor in order to respond to changes in vehicle orientation. MGA1000 is an ideal selection for satellite antenna pointing, it has been widely used in this field applications.

Product Advantages

Why Selecting MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer?
MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer is designed and produced by SkyMEMS, it enjoys high performance and accuracy, and high reliability with competitive price.It is a popular MEMS gyroscope with 3 accelerometer in the market, which has the main following advantages:


1. High Accuracy,High Performance and Powerful Functions
MGA1000 Single Axis MEMS Gyro with Triaxial Accelerometer enjoys excellent technical advantages:
– Heading: Diverging 0.5°/hour
– Wide Input Power Range: 5~24VDC, suitable for different applications
MGA1000 adopts original big brand components, high-class glue encapsulation, advanced production craft, and fully calibrated, which assured that our products have real actual precise and perfect performance.


2. Aerospace Level Reliability, 12-step Strictest Quality Control
We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.


3. Competitive Price, ODM supported
With strict cost control and massive production, we can provide the most competitive cost effective prices, and we have abundant ODM service experience for customers around the world, that is why we can build up long term win-win cooperation with our customers.


4. Successful Applications in Tens of Fields, 1000+ Customers are Using
We are continuously focusing on MEMS measurement & control technologies, and have developed the most advanced MEMS Gyro MGA1000. and it has been widely used in Platform Stabilization, AGV, Boat and Ship, Robotics Control and Antenna Pointing, etc. and now more than 1000 customers are using our vertical gyro around the world.


5. World-class Production Line, Fast Delivery
We have the world class production line to assure that the production procedures are scientific, precise and normative, which also can assure our products to be fast delivered.


6. Service with Heart, Professional Technical Support
We have the professional technical support engineer team, which can provide 24 hour technical support and excellent after-sale service.
Serving customers with heart is the principle of SkyMEMS, Customer demand is the fundamental driving force of our development.
We treat our customers with heart, customers’ satisfaction is the direction and target of SkyMEMS. Through continuously technology innovation and service upgrading, we will realize win-win cooperation with customers.


Q: How long is the delivery time of the products?
A: Usually we have stock for every type of products, if the product that you selected we have in stock, then we only need to re-test it before leaving the factory, so the delivery time is around 1~2 days; if we don’t have them in stock, then we need to arrange the production, the delivery time will be around 2 weeks. For the customer-oriented design products, our engineers will give the approximate delivery time according to the technical requirements.

Q: If needing to do the customer-oriented design product, what procedures will be followed?
A: If you want to do the customer-oriented design product, please contact with our pre-sale technical support engineer, or enter our ODM service in, and write down the technical requirements online, our engineers will contact with u asap after we get your requirements. Then we will clarify the technical specs together, and confirm the customer requirements together, then start to do the sample developing.

Q: How about the payment conditions?
A: we accept 30% prepayment in advance, and the balance 70% payment before the delivery. For the customer-oriented design product, the payment will be discussed together.

Q: How long is the product warranty?
A: Usually, our product warranty is one year. If you want to have longer warranty period, please contact with your sales manager to buy longer warranty service. Our products enjoy very high quality, and its MTBF is more than 100000hours.

Q: How will we do if the product has the quality problem?
A: Our products have passed very strict tests before delivery, so it is very low probability to have quality problem. If our products have quality problem (not caused by man-made factors) in the warranty period, our factory will arrange the free repair. If the product can’t repair well, we will arrange to provide a new one. If the product is out of warranty time, we will provide the repair only charging the material cost.

Q: What fast express will be adopted during shipping?
A: we will select fast expresses such as DHL, UPS, FEDEX, TNT etc. according to customer’s requirements.
