high performance fiber optic gyro, bias stability at fixed temperature ≤0.1°/h (1σ), has been widely used in motion sensing, stabilization, etc.

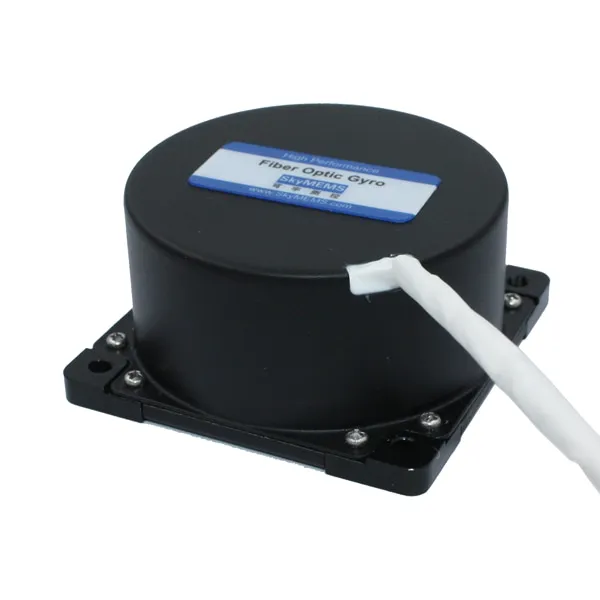

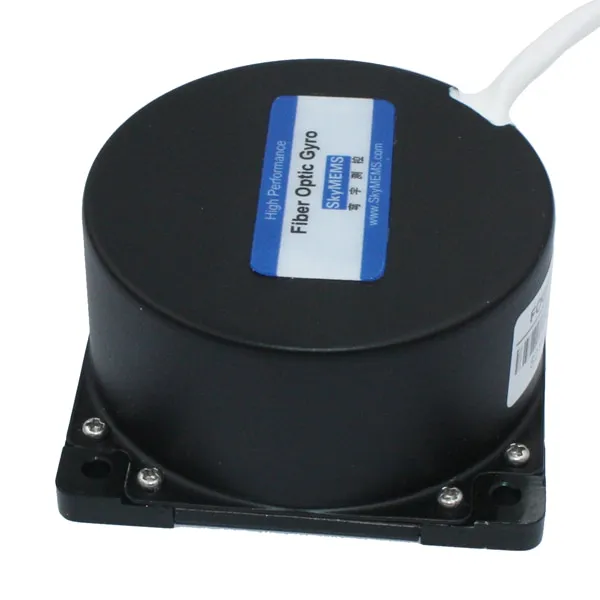

FOG60M is a high performance single-axis digital fiber optic gyroscope, which offers significant performance in such critical areas such as bias stability, bias repeatability, scale factor, scale factor linearity, and maximum input rate. FOG60M fiber optic gyro adopts advanced integrated optics and closed-loop Digital Signal Processing (DSP), and enjoys exceptional low noise, insensitivity to cross-axis error, perfect shock and vibration robustness, short startup time, small size, light weight, wide bandwidth, low power consumption, competitive price and excellent magnetic shielding advantages.
SkyMEMS’s FOGs are setting the new benchmark for tactical and navigational grade gyros for a wide variety of guidance, navigation and aeronautics applications. And FOG60M has been widely used in motion sensing, stabilization, navigation, and precision pointing applications, etc.
By providing precise motion sensing, stabilization, navigation, and pointing capabilities, FOG60M has found significant applications in a wide range of industries, including aerospace, defense, and robotics. Its magnetic shielding properties make it particularly well-suited for use in environments where electromagnetic interference (EMI) is a concern.
With SkyMEMS’s commitment to developing the latest technologies, FOG60M and other FOGs from SkyMEMS are setting new benchmarks for tactical and navigational grade gyros. As these technologies continue to evolve, we can expect even greater levels of accuracy, reliability, and performance from fiber optic gyros in the future.
|Zero Bias Stability||<=0.1°/h (2h continous test, 10s (1σ) smoothing result)|
|Zero Bias Repeatability||<=0.1°/h (6 test data calculation (1σ) result)|
|Zero Bias Stability at Full Temperature||<=0.3°/h (-40~+70°C, 10s (1σ) smoothing result)|
|Zero Bias Repeatability at Full Temperature||<=0.3°/h (-40~+70°C, 10s (1σ) smoothing result)|
|Scale Factor Non-linearity||<=50ppm, room temperature (1σ)|
|Scale Factor Unsymmetry||<=50ppm, room temperature (1σ)|
|Scale Factor Repeatability||<=50ppm, room temperature (1σ)|
|Random Walk Coefficient||<=0.01°/√h|
|Start Time||<=3minutes, the time from power-on output to reach accuracy|
|Power Supply||±5VDC±5% (maximum shock current close to 2A)|
|Power Consumption||<=3W (Room Temperture)|
|Power Consumption||<=5W (Full Temperture -40~+70°C )|

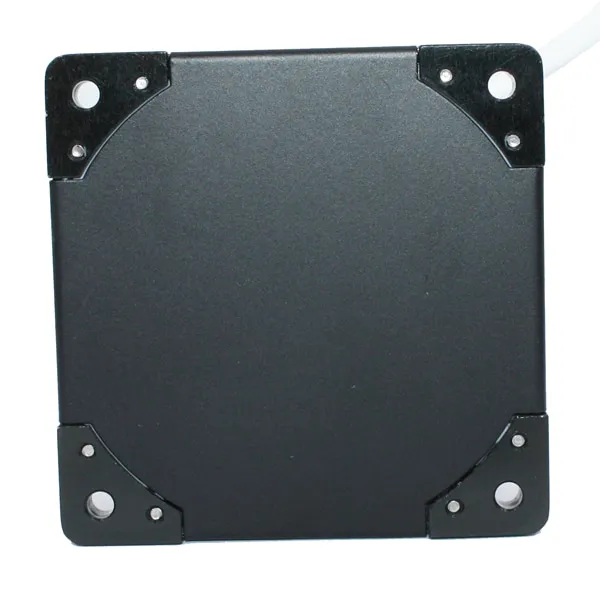

|Installation Hole Distance||50mm*50mm|
|Mounting Surface Accuracy||Flatness<=0.01mm|
FOG60M Fiber Optic Gyro enjoys competitive price, compact size, high accuracy, and super reliability, and easy to integrate into different systems, it is very suitable for tactical grade applications, which has been widely applied in the following fields:
– unmanned aircraft guidance
– underwater robotics navigation
– marine gyrocompass
– land positioning orientation,
– vehicle north finder
Tactical unmanned aircraft works long time in harsh environment, which requires higher accuracy in navigation. Fiber optic gyro is a good choice for the navigation systems of unmanned aircraft.
SkyMEMS is dedicated in the design and manufacture of fiber optic gyro systems, and its fiber gyros adopt closed-loop structure, enjoy high performance and stability, and SkyMEMS can provide customer-oriented design to provide right solution for different application, its designed and produced fiber optic gyros have been widely used in different types of unmanned aircraft.
Underwater robotics works in under water, where there is GNSS signal, so underwater robotics usually adopt inertial navigation, some underwater robotics needs to work long time in sea or river, the working environment is bad, so it requires its device need high performance.
SkyMEMS can design different size of fiber optic gyro to meet different types of underwater robotics, and the accuracy is assured. So the flexible solution can satisfy our customers’ requirements.
Now SkyMEMS optic gyroscopes have been widely used in the underwater robotics around the world.
Fiber optic gyro compass provides all motion data required for surface ship’s steering, and the fiber optic gyro compass has the ability to provide precise sea alignment. SkyMEMS fiber optic gyroscope can be integrated into fiber optic gyro compass, it has been widely applied in marine gyrocompass.
Land positioning orientation is important for military vehicles, construction machinery, and surveying equipment. Fiber optic gyro can provide accurate orientation information even in areas with poor GNSS signal or signal interference. FOG60M’s compact size and high reliability make it an ideal choice for these applications.
Vehicle north finding is another important application of fiber optic gyro. It allows vehicles to accurately determine their heading, even in areas without reliable GNSS signals. This is particularly useful for military vehicles operating in rugged terrain or urban environments where satellite signals may be blocked. SkyMEMS’s FOGs have been successfully integrated into vehicle north finding systems for various military and civilian vehicles.
FOG60M fiber optic gyro is designed and produced by SkyMEMS, it enjoys high performance and real 0.1° /h (1σ, fixed temperature) bias stability, and high reliability. It is a competitive high accuracy closed-loop fiber gyro sensor in the market, which has the main following advantages:
FOG60M fiber optic gyro is designed and produced by SkyMEMS, it enjoys excellent technical advantages:
– Measuring Range: -600°/s~+600°/s
– Bias Stability at Fixed Temperature ≤0.1°/h (1σ)
– Bias Repeatability at Full Temperature ≤0.3°/h (1σ)
– Scale Factor Non-linearity ≤50ppm
– Bandwidth ≥200Hz
– Working Temperature: -40~+70ºC
FOG60M fiber optic gyro adopts big brand components, advanced production craft, fully calibrated, advanced SkyMEMS algorithm, which assured that our products have real actual precise and perfect performance.
We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.
With strict cost control and massive production, we can provide the most competitive cost effective prices, and we have abundant ODM service experience for customers around the world, the customer-oriented service includes providing special specification parameters, size, shape, interface, etc. which make it convenient for customers to optimize their system performance, that is why we can build up long term win-win cooperation with our customers.
We are continuously focusing on inertial technologies, fiber optic gyros is one of our important products, we have developed the most advanced and reliable fiber optic gyro series. and FOG60M optic gyro is a middle-high accuracy fiber optic gyro, which has been widely used in tactical applications, such as unmanned aircraft guidance, underwater robotics navigation, marine gyrocompass, land positioning orientation, and vehicle north finder, etc. and now more than 100 customers are using our fiber optic gyros around the world.
We have the world class production line to assure that the production procedures are scientific, precise and normative, which also can assure our products to be fast delivered.
We have the professional technical support engineer team, which can provide 24-hour technical support and excellent after-sale service.
Serving customers with heart is the principle of SkyMEMS, Customer demand is the fundamental driving force of our development.
We treat our customers with heart, customers’ satisfaction is the direction and target of SkyMEMS. Through continuously technology innovation and service upgrading, we will realize win-win cooperation with customers.
Q: What preparation work should do when testing our fiber optic module?
A: 1) During tests and using, it is better to add one metal base or heat dissipation
Power supply: it is better to use laboratory power supply (which can display the current) during tests, then can judge the module’s status easily, when integrating the module into the system, DCDC power module can be selected, and the DCDC module select the one that has filter, if the dcdc module doesn’t have the filter, then please add one filter.
When use laptop or PC to collect the data from our fiber optic module, please select the right data collecting card, the data collecting card should has photoelectric isolation ability. For more details, please contact with our sales.
Q: What input voltage should be provided for our fiber optic gyro?
A: ±5VDC±5%, and the current should ≥1A, so the impulse current can reach 1.5A at the moment of fiber optic gyro startup, this is very important, if the current is low, the fiber optic gyro may failed to start to work, if not work normally, the output data from FOG will be abnormal. And 15W power module (at least 10W) is recommended, for more details, please contact with us, we also can recommend the power module we used.
Q: What data type of the SkyMEMS fiber optic gyro?
A: it is integer data, this raw data divide by scale factor, the result is the angular rate (degree/s). the scale factor will be provided in the test report, every fiber optic gyro’s scale factor is different.
Q: Whether the fiber optic gyro lose data when outputting data at higher frequency?
A: please let us know what frequency you will use in your application, according to the frequency, and select the right baud rate, the fiber optic gyro will not lose data, and we also can provide solution based on your actual applications.
Q: How to calculate the temperature?
A: the actual temperature is the temperature data outputted by FOG divide by 16.
Q: Whether each FOG’s scale factor is different?
A: yes, right. Each FOG’s scale factor is different, but it is close for standard model, for the ODM FOG, the scale factor will change much.
Q: whether the connector and cable length can be selected?
A: yes, no problem, please let us know the connector type and cable length you want, then we can do it, and also different color cable can be selected.
Q: How about the delivery time?
A: for our standard model, if we have them in stock, only need 2~3days to re-test before shipping, if it is out of stock, then need around 2 weeks to arrange the production and tests. For the ODM FOG product, if needing to modify the structure, it will need around 3 weeks to arrange the production and tests.
Q: How to arrange the payment?
A: about the payment, please pay to our company account, the beneficiary’s name: NANJING SKY MEMS TECHNOLOGY CO., LTD. And our email is only @skymems.com to contact with u formally. To notice this to avoid the loss.
Q: what is the different between fiber optic gyro and MEMS gyros?
A: FOGs use the Sagnac effect, which utilizes counter-propagating optical beams and interferometry to measure rotation. FOGs have solid state, all fiber or hybrid fiber construction. Moderately priced, the fiber optical gyros are typically used for industrial and high tactical grade applications, and provide good price to performance value.
The MEMS gyros use the Coriolis Effect, which is based on vibrating mass deflection resulting from rotation. MEMS can be quartz or silicon based in construction and their benefits are low cost, small size/weight. MEMS are typically used in consumer to industrial grade applications.
The FOGs and MEMS gyros have their own advantages, and SkyMEMS can provide both, and can fully consider the application requirements, and provide the right solution for your applications.
