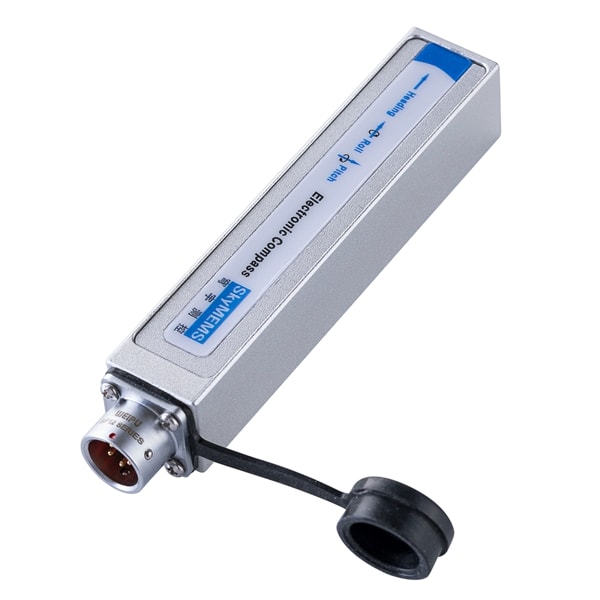

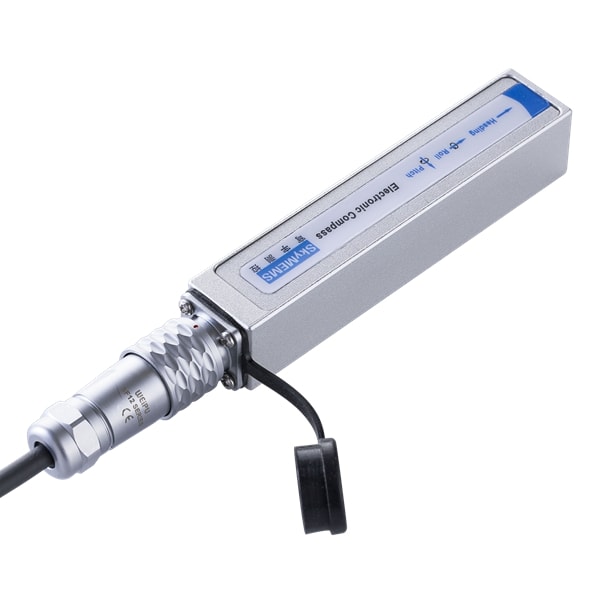

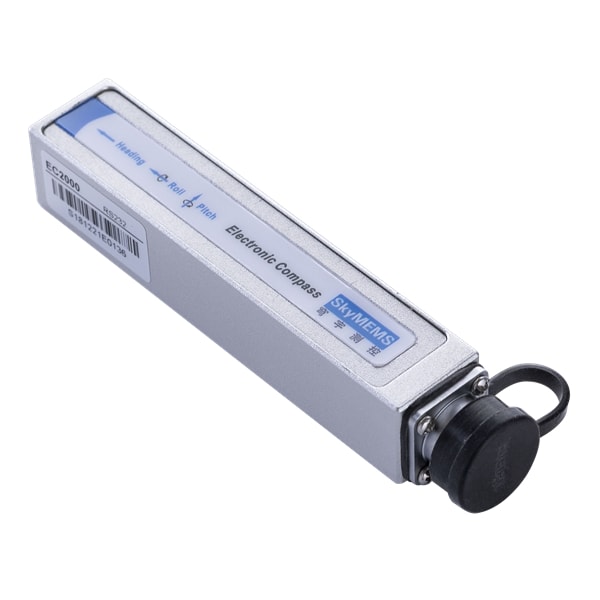

EC2000 High Accuracy 3D Electronic Compass

  • 3D Angle Output (Heading, Pitch, Roll)
  • Hard/Soft Magnetic Compensation, Tilt Compensation
  • Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)
  • Pitch and Roll Accuracy:±0.1° (25°C, Full Range)
  • Wider Input Voltage: 5~24VDC (up to 36VDC)
  • Interface: RS232 (default) or RS485

Brief Introduction

EC2000 digital compass is a high-performance, low-power consumption, tilt-compensated electronic compass module that provides industry-leading heading accuracy. EC2000 adopts hard and soft magnetic calibration algorithm, uses special calibration technology and provides high accuracy inclination signal, and it has perfect cross connect performance.

EC2000 integrates 3-axis magneto-inductive sensors, 3-axis MEMS accelerometer and central processing unit to calculate the heading data in real time and compensate the heading when it has inclination angle. EC2000 enjoys compact size, high accuracy, low power consumption, which is widely used in antnna poiting, vehicle, system integration fields.

An accurate digital compass has become an essential tool for modern travelers relying on technology for navigation. Unlike traditional compasses, it is not easily influenced by external factors, providing more reliable and precise readings. The importance of an accurate digital compass lies in its precision, versatility, reliability, and affordability. It allows travelers to navigate with confidence and accuracy, making it crucial for safety in outdoor activities. It can be used in various environments, including indoor and outdoor settings, and is less prone to errors and malfunctions compared to other navigation tools. When choosing a compass, factors such as accuracy, durability, ease of use, and additional features should be considered. Regular calibration is necessary to ensure optimal performance. By selecting the right compass and calibrating it correctly, travelers can confidently find their way in any situation.

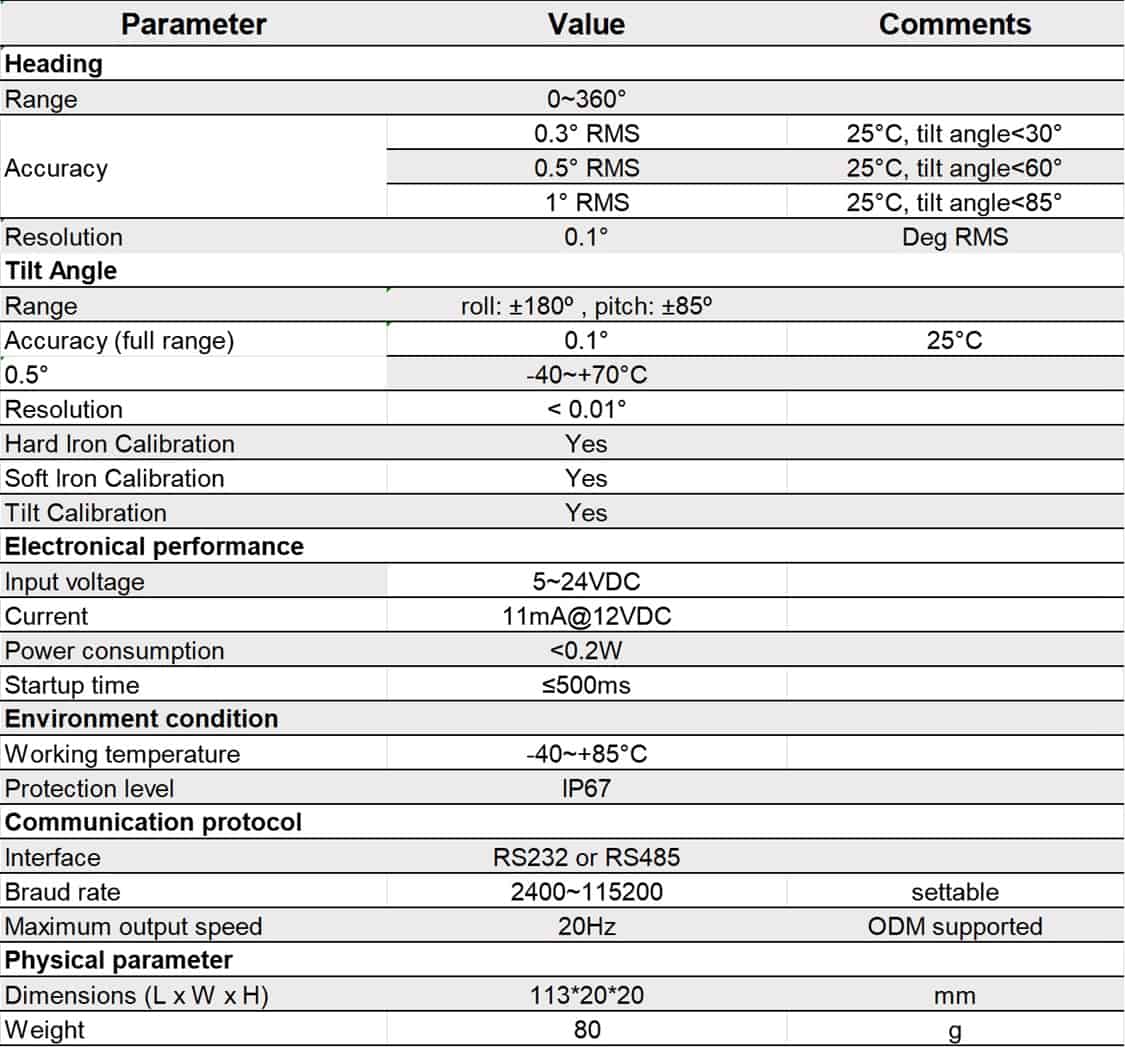

Technical Specifications

Typical Application

EC2000 High Performance 3D Electronic Compass sensor is specially designed for antenna pointing and platform system integration, it enjoys high reliability, high stability in harsh environment, which has been widely used in the following fields:
– Satellite Antenna Pointing
– Antenna Servo System
– Boat Control System
– Unmanned Aircraft
– Infrared Imager

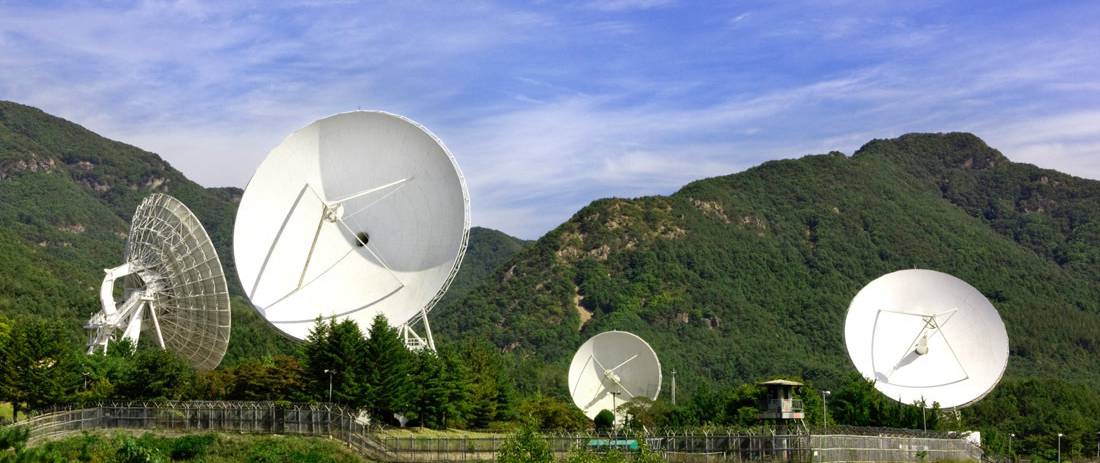

EC2000 3D electronic compass sensor widely used in satellite antenna pointing
Users of geostationary satellite based communication systems have to calculate the angles needed to point their transmitting antennas toward orbiting satellites. The satellite appears to remain in one spot in the sky. Pointing a satellite antenna at a geostationary satellite is a matter of calculating the elevation and azimuth for the ground station antenna so that it points directly at the orbital location of the satellite.
SkyMEMS EC2000 3D electronic compass sensor is able to sense both direction and pitch and roll at high accuracy, which has hard and soft magnetic compensation, and it has low power consumption, and can work in harsh environment. EC2000 has been widely used in satellite antenna pointing.

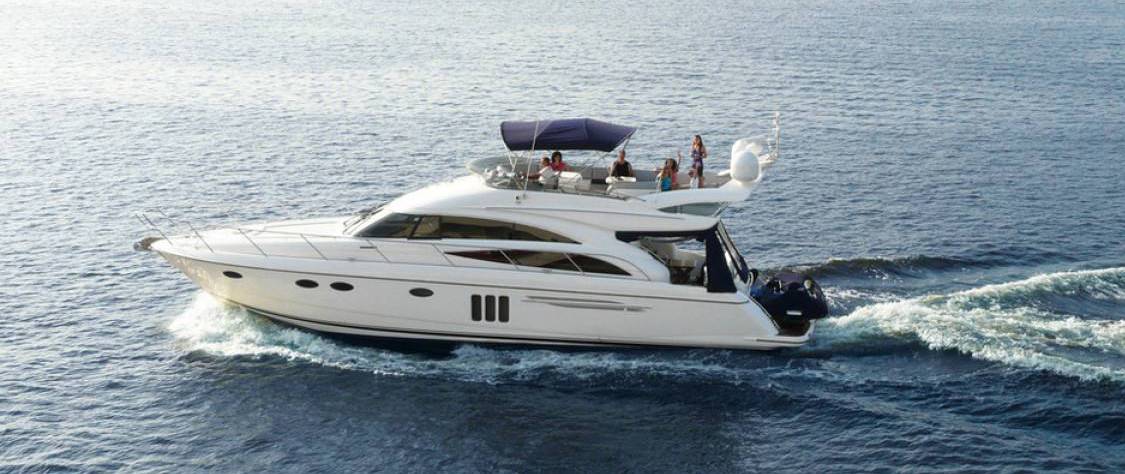

EC2000 3D electronic compass sensor widely used in boat control system
Boats and ships of all types have used compasses for centuries. Even with the development of GPS navigational gear, all seagoing vessels have at least one electronic compass as a primary or secondary means of getting from point A to point B.
SkyMEMS electronic compass EC2000 are easily integrated into marine systems on boats and ships. It enjoys high accuracy in direction and pitch and roll, and it has hard and soft magnetic compensation, and it has low power consumption, and can work in harsh environment. EC2000 has been widely used in boats and ships.


EC2000 3D electronic compass sensor widely used in infrared imager
SkyMEMS electronic compass module uses magnetic sensors with wide dynamic range and ideal linearity. It achieves high accuracy and reliability, and it is optimized for infrared imagers.

Product Advantages

Why Selecting EC2000 3D electronic compass sensor?
EC2000 3D electronic compass sensor is designed and produced by SkyMEMS, it enjoys high performance and accuracy, and high reliability. It is a popular electronic compass sensor in the market, which has the main following advantages:


1. High Accuracy, High Performance and Powerful Functions
EC2000 3D electronic compass sensor is designed and produced by SkyMEMS, it enjoys excellent technical advantages:
– Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)
– Pitch and Roll Accuracy:±0.1° (25°C, Full Range)
– Wider Input Voltage: 5~24VDC (up to 36VDC)
– Interface: RS232 (default) or RS485
– Wide Working Temperature: -40~+85oC
– Widely working temperature: -40~+85°C
EC2000 3D electronic compass sensor adopts big brand components, advanced production craft, fully calibrated, advanced SkyMEMS algorithm, which assured that our products have real actual precise and perfect performance.


2. Aerospace Level Reliability, 12-step Strictest Quality Control
We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.


3. Competitive Price, ODM supported
With strict cost control and massive production, we can provide the most competitive cost effective prices, and we have abundant ODM service experience for customers around the world, that is why we can build up long term win-win cooperation with our customers.


4. Successful Applications in Tens of Fields, 1000+ Customers are Using
We are continuously focusing on MEMS measurement & control technologies, and have developed the most advanced and reliable 3D electronic compass sensor EC2000. and EC2000 has been widely used in satellite antenna pointing, antenna servo system, boat control system, unmanned aircraft, infrared imager, etc. and now more than 1000 customers are using our fiber optic gyro around the world.


5. World-class Production Line, Fast Delivery
We have the world class production line to assure that the production procedures are scientific, precise and normative, which also can assure our products to be fast delivered.


6. Service with Heart, Professional Technical Support
We have the professional technical support engineer team, which can provide 24 hour technical support and excellent after-sale service.
Serving customers with heart is the principle of SkyMEMS, Customer demand is the fundamental driving force of our development.
We treat our customers with heart, customers’ satisfaction is the direction and target of SkyMEMS. Through continuously technology innovation and service upgrading, we will realize win-win cooperation with customers.
