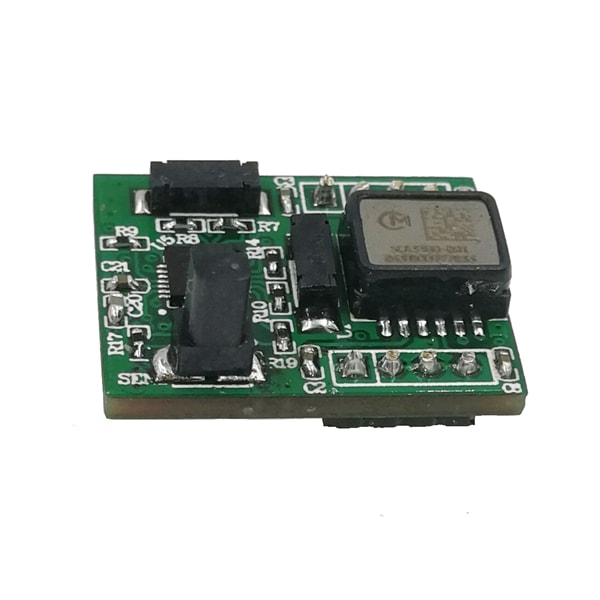

ECB200 digital compass module is a high accuracy 3D digital compass module, it adopts advanced hard and soft magnetic calibration algorithm, and it uses special calibration technology and provides high accuracy inclination information, and it has perfect cross coupling performance.

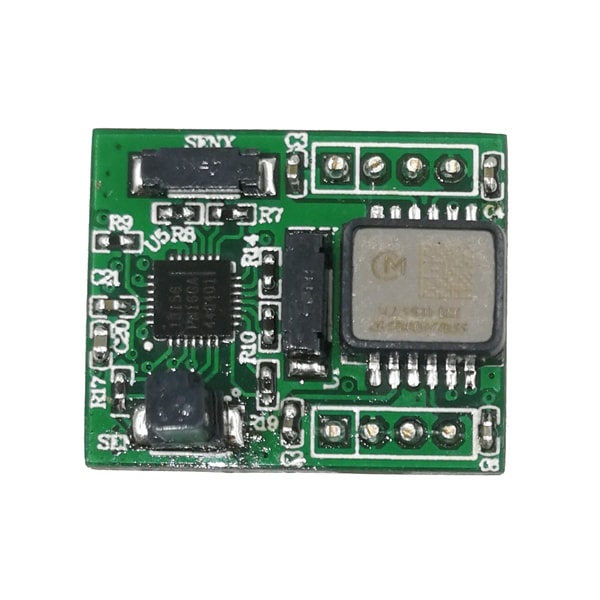

ECB200 integrates 3-axis magneto-inductive sensors, 3-axis MEMS accelerometer and central processing unit to calculate the heading data in real time and compensate the heading when it has inclination angle. ECB200 enjoys compact size, high accuracy, low power consumption, which is widely used in antnna poiting, vehicle, camera, system integration fields.
ECB200 digital compass module is specially designed for thermal imagers, laser rangefinders, antenna pointing and platform system integration, it enjoys high reliability, high stability in harsh environment, which has been widely used in the following fields:
– Satellite Antenna Pointing
– Infrared Imager
– Laser Rangefinders
– Antenna Servo System
– Boat Control System
– Unmanned Aircraft

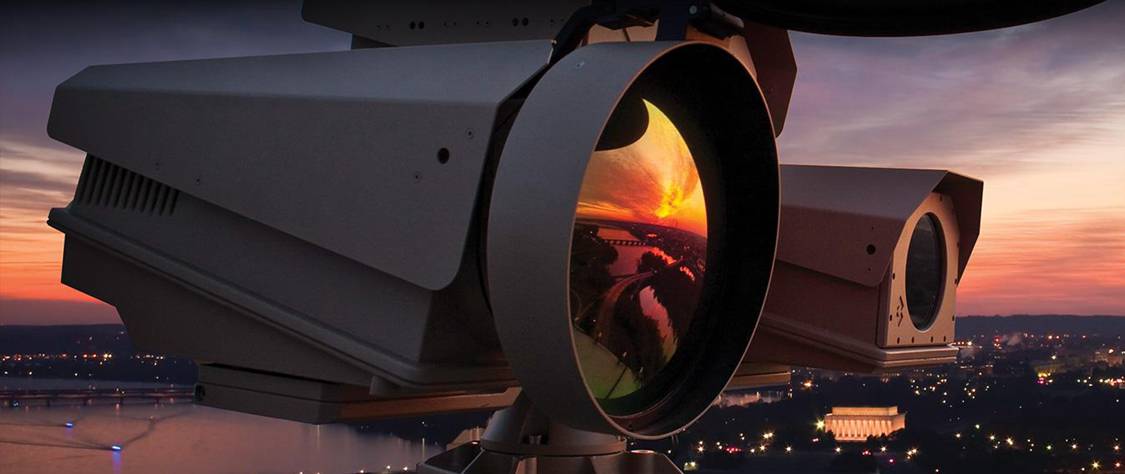

ECB200 digital compass module widely used in Infrared Imager
A thermographic camera (also called an infrared camera or thermal imaging camera) is a device that forms an image using infrared radiation, similar to a common camera that forms an image using visible light. With compass module, which can help the infrared imager provide accurate heading and attitude.
SkyMEMS electronic compass module enjoys super small size, which is easily integrated into the infrared imager, and it achieves high accuracy and reliability, and it is optimized for infrared imagers.
ECB200 digital compass module widely used in Laser Rangefinders
A laser rangefinder is a rangefinder that uses a laser beam to determine the distance to an object. The most common form of laser rangefinder operates on the time of flight principle by sending a laser pulse in a narrow beam towards the object and measuring the time taken by the pulse to be reflected off the target and returned to the sender. To get better performance, the laser rangefinders usually have internal GPS, compass and inclinometer.
SkyMEMS ECB200 digital compass module is very small size, and it is easily integrated into the laser rangefinder. It enjoys high accuracy in direction and pitch and roll, and it has hard and soft magnetic compensation, and it has low power consumption, and can work in harsh environment.

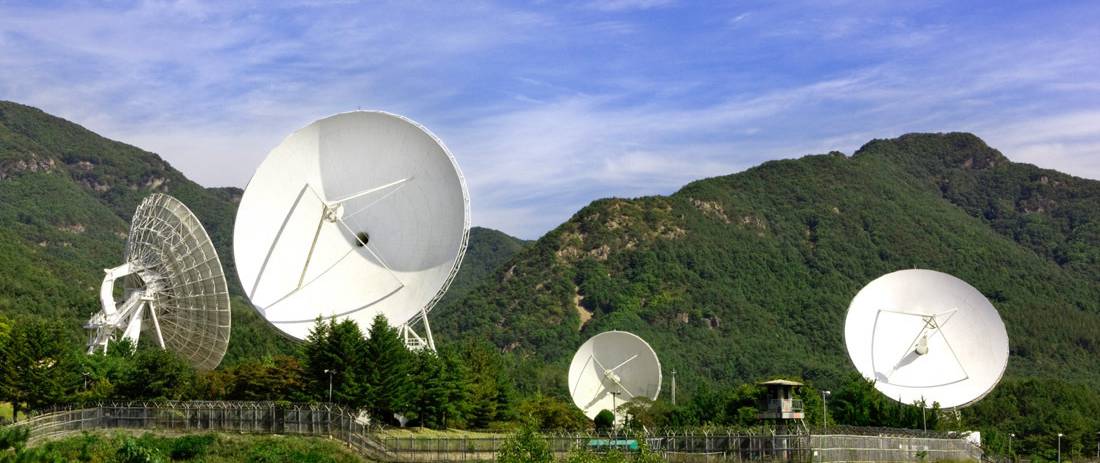

ECB200 digital compass module widely used in antenna pointing
SkyMEMS ECB200 digital compass module is able to sense both direction and pitch and roll at high accuracy, which has hard and soft magnetic compensation, and it has low power consumption, and can work in harsh environment. Furthermore, ECB200 enjoys very small size, which is easily integrated into the antenna system, it has been widely used in satellite antenna pointing.
Why Selecting ECB200 digital compass module?
ECB200 High Accuracy 3D Digital Compass Module is designed and produced by SkyMEMS, it enjoys very small size, high performance and accuracy, and high reliability. It is a popular electronic compass module in the market, which has the main following advantages:
1. Smallest Size, High Accuracy, High Performance and Powerful Functions

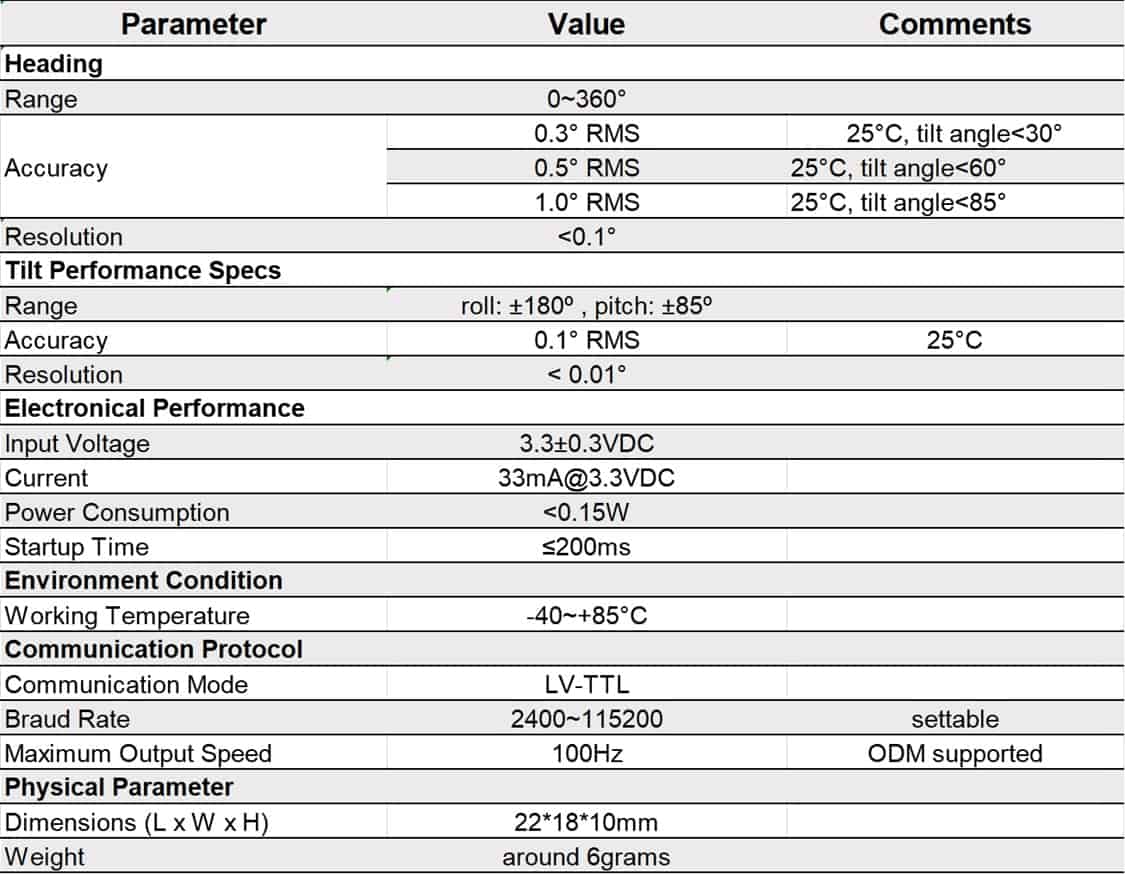

ECB200 High Accuracy 3D Digital Compass Module is designed and produced by SkyMEMS, it enjoys excellent technical advantages:
– 3D Angle (Heading, Pitch, Roll) Output
– Hard/Soft Magnetic Compensation, Tilt Compensation
– Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)
– Pitch and Roll Accuracy: ±0.1° (25°C, Full Range)
– Support Local Second Calibration
– Power Supply: 3.3±0.3VDC, Interface: LV-TTL
– Widely Working Temperature: -40~+85°C
– Small Size: 22*18*10mm
ECB200 High Accuracy 3D Digital Compass Module adopts big brand components, advanced production craft, fully calibrated, advanced SkyMEMS algorithm, which assured that our products have real actual precise and perfect performance.

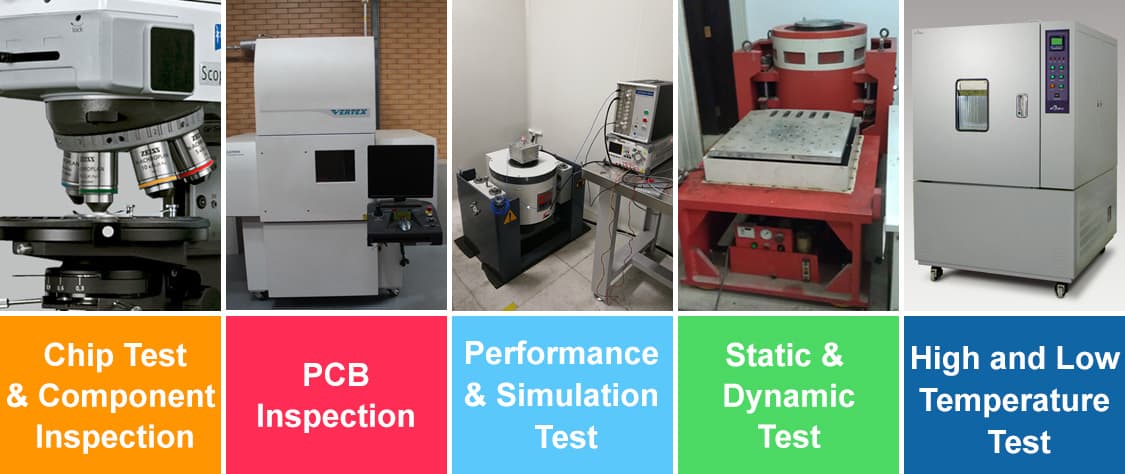

2. Aerospace Level Reliability, 12-step Strictest Quality Control
We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.
3. Competitive Price, ODM supported
With strict cost control and massive production, we can provide the most competitive cost effective prices, and we have abundant ODM service experience for customers around the world, that is why we can build up long term win-win cooperation with our customers.
4. Successful Applications in Tens of Fields, 1000+ Customers are Using
We are continuously focusing on MEMS measurement & control technologies, and have developed smallest and the most advanced and reliable 3D electronic compass module ECB200. and ECB200 has been widely used in satellite antenna pointing, antenna servo system, boat control system, thermal imagers, laser rangefinders, etc. and now more than 1000 customers are using our digital compass around the world.

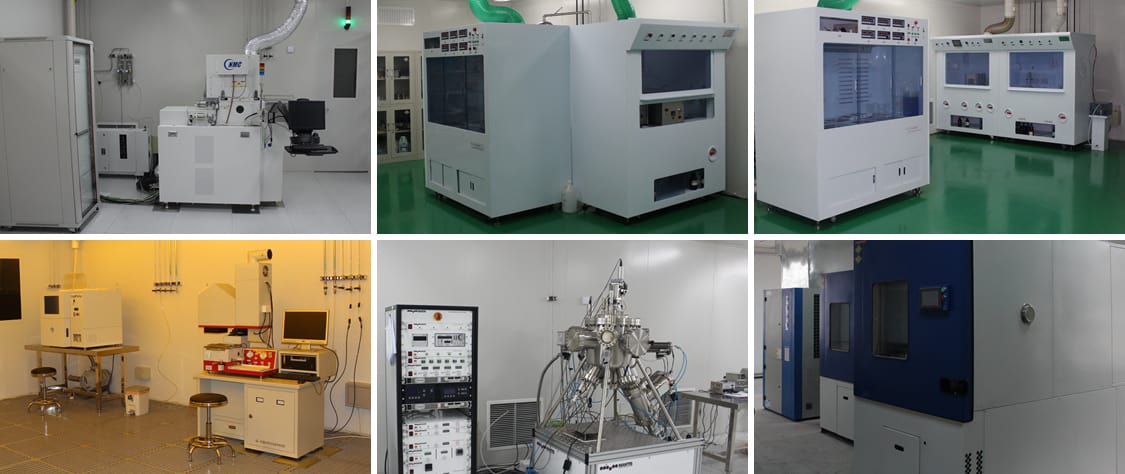

5. World-class Production Line, Fast Delivery
We have the world class production line to assure that the production procedures are scientific, precise and normative, which also can assure our products to be fast delivered.
6. Service with Heart, Professional Technical Support
We have the professional technical support engineer team, which can provide 24 hour technical support and excellent after-sale service.
Serving customers with heart is the principle of SkyMEMS, Customer demand is the fundamental driving force of our development.
We treat our customers with heart, customers’ satisfaction is the direction and target of SkyMEMS. Through continuously technology innovation and service upgrading, we will realize win-win cooperation with customers.
Q: How long is the delivery time of the products?
A: Usually we have stock for every type of products, if the product that you selected we have in stock, then we only need to re-test it before leaving the factory, so the delivery time is around 1~2 days; if we don’t have them in stock, then we need to arrange the production, the delivery time will be around 2 weeks. For the customer-oriented design products, our engineers will give the approximate delivery time according to the technical requirements.
Q: If needing to do the customer-oriented design product, what procedures will be followed?
A: If you want to do the customer-oriented design product, please contact with our pre-sale technical support engineer, or enter our ODM service in www.skymems.com, and write down the technical requirements online, our engineers will contact with u asap after we get your requirements. Then we will clarify the technical specs together, and confirm the customer requirements together, then start to do the sample developing.
Q: How about the payment conditions?
A: we accept 30% prepayment in advance, and the balance 70% payment before the delivery. For the customer-oriented design product, the payment will be discussed together.
Q: How long is the product warranty?
A: Usually, our product warranty is one year. If you want to have longer warranty period, please contact with your sales manager to buy longer warranty service. Our products enjoy very high quality, and its MTBF is more than 100000hours.
Q: How will we do if the product has the quality problem?
A: Our products have passed very strict tests before delivery, so it is very low probability to have quality problem. If our products have quality problem (not caused by man-made factors) in the warranty period, our factory will arrange the free repair. If the product can’t repair well, we will arrange to provide a new one. If the product is out of warranty time, we will provide the repair only charging the material cost.
Q: What fast express will be adopted during shipping?
A: we will select fast expresses such as DHL, UPS, FEDEX, TNT etc. according to customer’s requirements.
