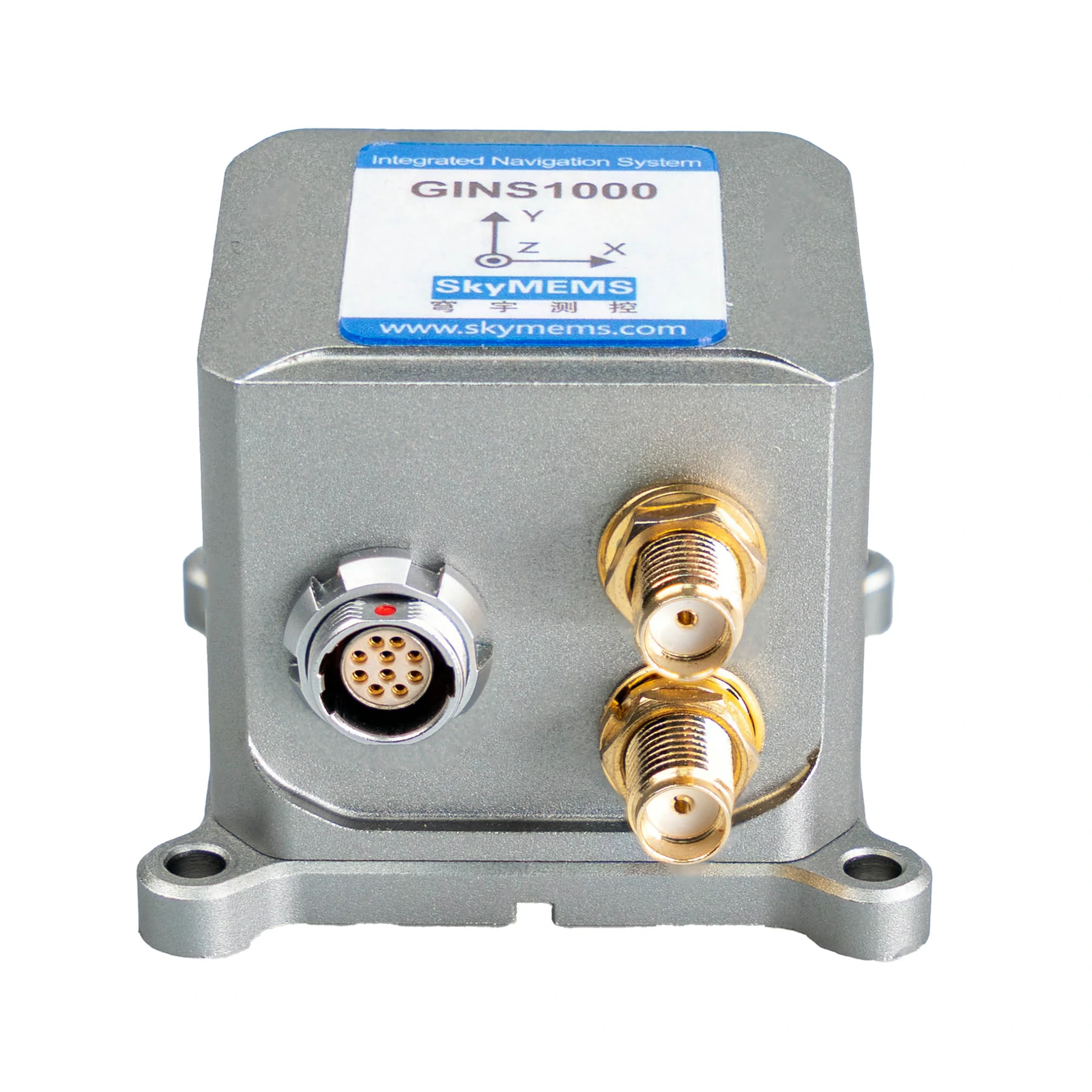

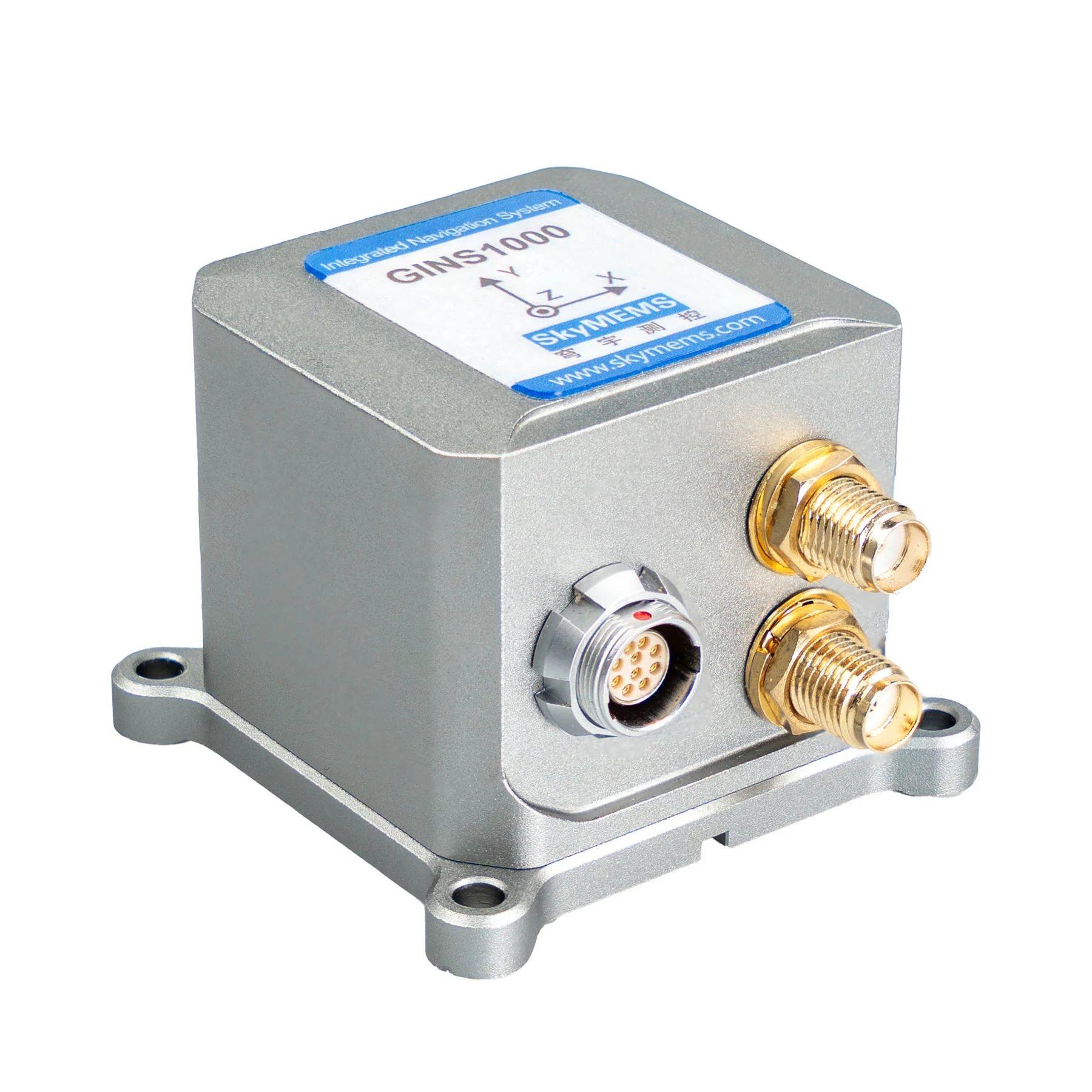

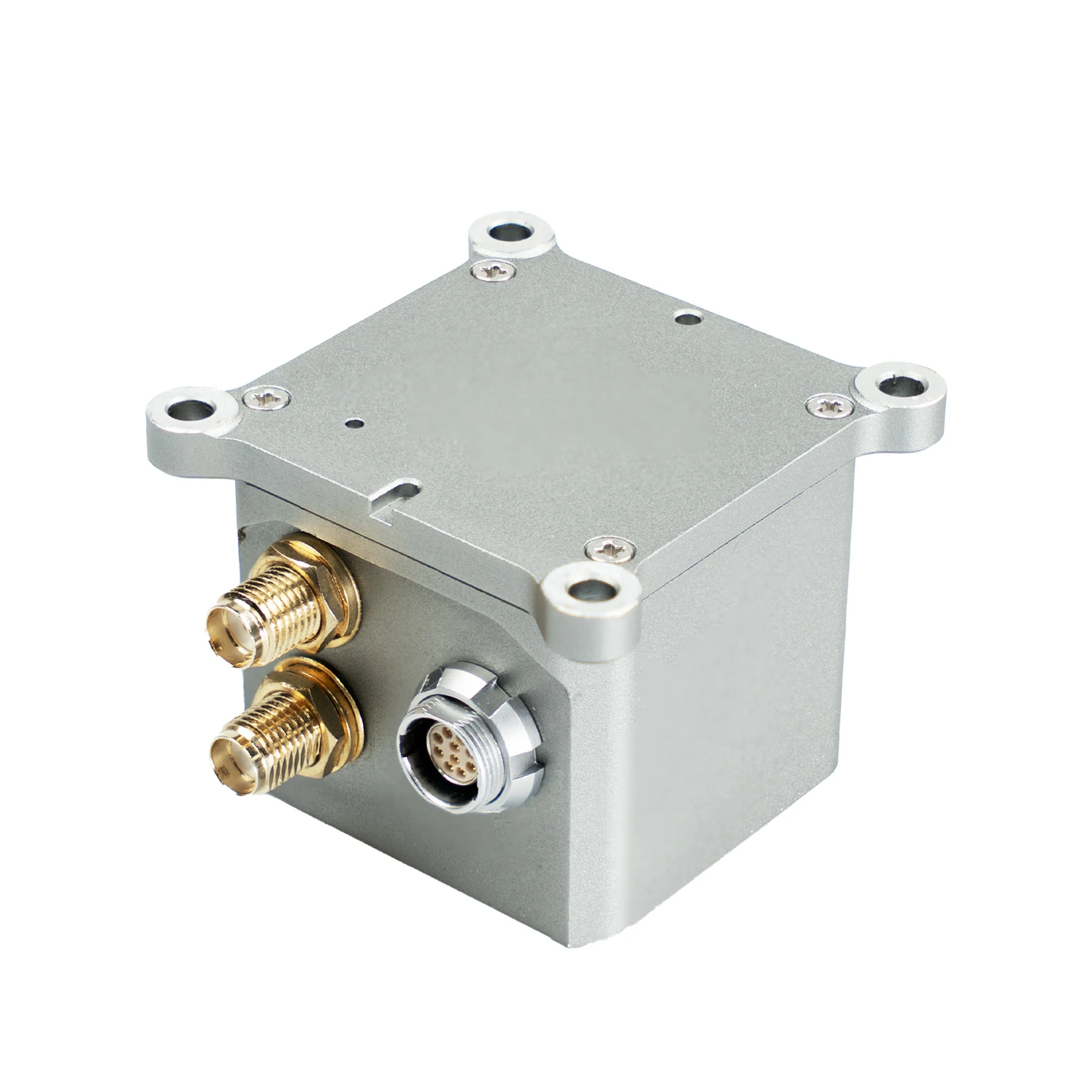

The GINS1000 High-Performance GNSS/INS Integrated Navigation System adopts high-precision MEMS inertial components and a GNSS receiver module with external RTK correction input. It leverages SkyMEMS’ proprietary integrated navigation fusion algorithm along with multiple compensation techniques, enabling high-sensitivity signal tracking and accurate positioning even in harsh environments.
The system features a compact size, lightweight design, cost-effective pricing, low power consumption, fast start-up, and high reliability. It also offers excellent adaptability to dynamic environments. Thanks to these advantages, it has been widely applied in unmanned aerial vehicles (UAVs), ground vehicles, precision agriculture, and other fields.
Technical Specifications
Parameter
Value
Unit
System Specifications
Pitch/Roll (1σ)
0.08
°
Heading (1σ)
0.1 (1m base line)
°
Position (1σ)
SPP: 1.5
m
RTK: 2+1ppm
cm
Velocity (1σ)
0.03
m/s
Heading drift@1min(GNSS-Denied)
0.15
°
Gyroscopes
Range
±450
°/s
Bias Stability
5 (10s average)
°/h
Scale factor non-linearity
100
ppm
Random Walk
0.2
°/√h
Accelerometers
Range
±16
g
Bias Instability
50 (Allan)
ug
Scale factor non-linearity
0.01
%FS
Random Walk
0.015
m/s/√h
GNSS Receiver
Frequency
BDS: B1I, B2I, B3I
GPS: L1C/A, L2P (Y)/L2C, L5
GLONASS: G1, G2
Galileo: E1, E5a, E5b
QZSS: L1, L2, L5
Position (1σ)
SPP: 1.5
m
RTK: 2+1ppm
cm
Velocity (1σ)
0.03
m/s
Heading (1σ)
0.1 (1m base line)
°
Electrical Features
Supply Voltage
5~36
V
Power Consumption
≤3
W
Physical Features
Size
46*45*35
mm
Weight
<150
g
Interface
RS422, RS232
Output Rate
100
Hz
Baud Rate
921600 (default RS422)
bps
Environment Conditions
Operating Temperature
-40 ~ +80
℃
Storage Temperature
-50 ~ +85
℃
Typical Application
Typical Applications
GINS1000 is a high-performance, surface-mount GNSS-assisted inertial navigation system (GNSS/INS) that integrates a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer, barometer, high-sensitivity GNSS receiver, and microprocessor. which has been widely used in the following fields:
– Unmanned Aerial Vehicle
– Unmanned Surface Vessel
– Precision Agriculture
– Industrial Robotics
GINS1000 GNSS/INS Integrated Navigation System widely used in UAV Navigation
UAV is unmanned aerial vehicle, commonly known as a drone, is an aircraft without a human pilot aboard. The flight of UAVs may operate with various degrees of autonomy: either under remote control by a human operator or autonomously by onboard computers.
GINS1000 GNSS/INS Integrated Navigation System is a low-cost high performance integrated navigation system, which has been widely used in unmanned UAV Navigation.
GINS1000 GNSS/INS Integrated Navigation System is a low-cost high-performance integrated navigation system, which has been widely used in construction machinery.
For construction machinery, the Integrated Navigation System can provide real-time positioning and precise attitude information (heading, roll, pitch), assist autonomous operation and path control, improve equipment stability and operational accuracy, and reduce the impact of vibration, slope, and harsh environments. Even in complex construction sites, the continuity and reliability of navigation data can still be ensured. Machine status and operation data can be transmitted to monitoring centers through communication devices to improve construction efficiency and operational safety.
GINS1000 GNSS/INS Integrated Navigation System widely used in small plane
GINS1000 GNSS/INS Integrated Navigation System is low-cost high performance integrated navigation system, which has been widely used in civil planes.
The integrated navigation system can determine the real-time position of civil planes, monitor the attitude (heading, roll, pitch) of civil planes, facilitate pilots to grasp the real-time flight status of the aircraft. The communication equipment can transmit position and attitude information to the control center, assisting the air traffic control center in monitoring the status of civil planes to ensure navigation safety.
GINS1000 GNSS/INS Integrated Navigation System widely used in Industrial Robotics
A high-precision Integrated Navigation System can accurately determine and track the position and attitude of an industrial robot. During operation, the tool’s direction and location are extremely important. Moving in a slightly wrong direction, even briefly, may cause the robot to collide with equipment or produce a defective part. The dynamic control of industrial robots requires sensors with a high dynamic response. The Integrated Navigation System provides real-time data on the robot’s dynamic attitude and position changes.
GINS1000 GNSS/INS Integrated Navigation System is designed and produced by SkyMEMS, it enjoys high performance and accuracy, and high reliability. It is a popular GNSS/INS system in the market, which has the main following advantages:
High Accuracy, High Performance and Powerful Function
SK200 GNSS/INS Integrated Navigation System is a high-performance integrated navigation system, which enjoys excellent technical advantages:
– GPS/BDS/GLONASS/Galileo Systems
– High Tracking Sensitivity for Complicated Environment
– High Accuracy: yaw up to 0.2°, Pitch/Roll: 0.1° (rms), Velocity <0.05m/s, Position < 1m
– High Reliability, Strong Vibration and Shock Resistance
– Adjustable Bandwidth and Protocol ODM Supported
SK200 GNSS/INS Integrated Navigation System adopts big brand components, advanced production craft, fully calibrated, advanced SkyMEMS algorithm, which assured that our products have real actual precise and perfect performance.
Aerospace Level Reliability, 12-step Strictest Quality Control
We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.
Competitive Price, ODM supported
With strict cost control and massive production, we can provide the most competitive cost-effective prices, and we have abundant ODM service experience for customers around the world, that is why we can build up long term win-win cooperation with our customers.
Successful Applications in many Fields, 300+ Customers are Using
We are continuously focusing on MEMS measurement & control technologies, and have developed the most advanced GNSS/INS Integrated Navigation System SK200. SK200 has been widely used in unmanned aerial vehicle, unmanned surface vessel, precision agriculture, industrial robotics, etc. and now more than 300 customers are using our GNSS/INS Integrated Navigation System around the world.
World-class Production Line, Fast Delivery
We have the world class production line to assure that the production procedures are scientific, precise, and normative, which also can assure our products to be fast delivered.
Service with Heart, Professional Technical Support
We have the professional technical support engineer team, which can provide 24-hour technical support and excellent after-sale service.
Serving customers with heart is the principle of SkyMEMS, Customer demand is the fundamental driving force of our development.
We treat our customers with heart, customers’ satisfaction is the direction and target of SkyMEMS. Through continuously technology innovation and service upgrading, we will realize win-win cooperation with customers.
