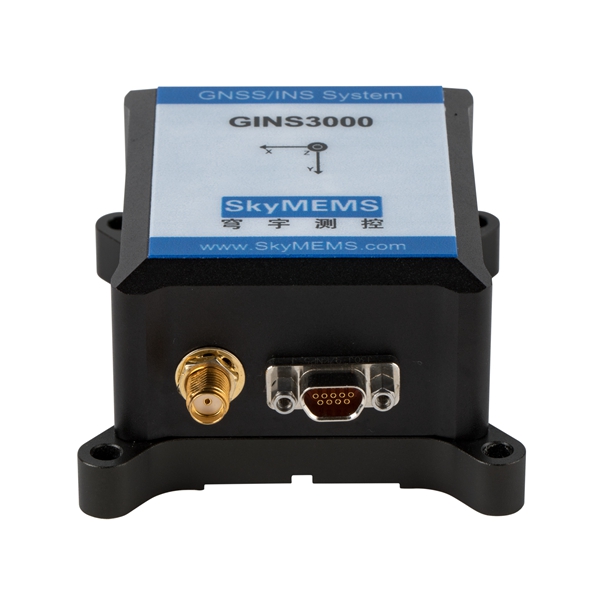

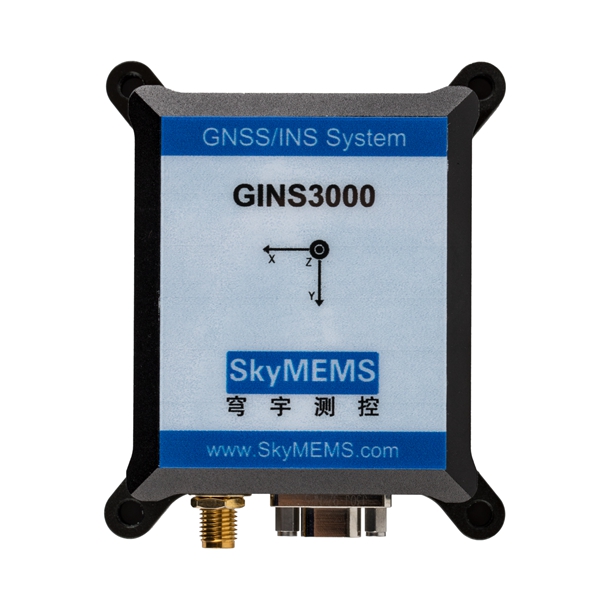

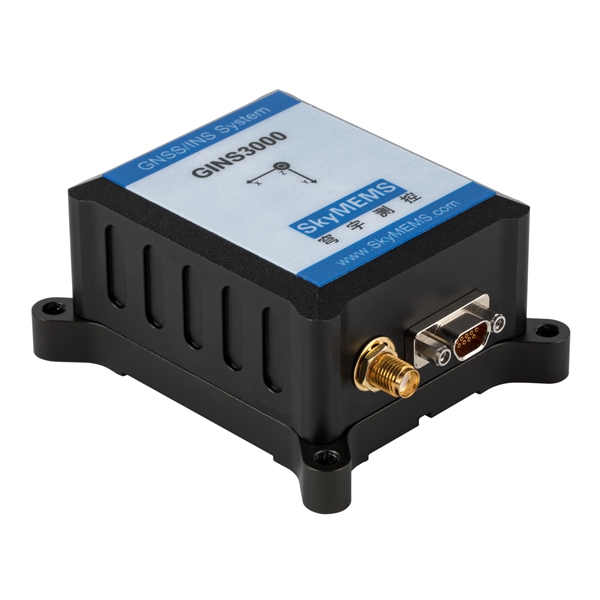

GINS3000 High Performance GNSS/INS Integrated Navigation System

– High Performance MEMS Inertial System with GPS/GLONASS Satellite Navigation System

– High Accuracy: Yaw: 0.5° (1σ), Attitude: 0.23° (1σ), Velocity <0.05~0.1m/s,

Position < 5m (L1/L2 single point), <8cm (RTK), Heave: <15cm (1σ)

– RS422 Interface, 100Hz Data Output Rate

– High Reliability, Strong Vibration Proof

– Advanced SkyMEMS Data Fusion Algorithm

Brief Introduction

GINS3000 high performance GNSS/INS integrated navigation system adopts MEMS inertial components and integrates GPS/GLONASS satellite navigation system, it adopts advanced SkyMEMS integrated navigation fusion algorithm, which can realize high sensitivity tracking and accurate positioning in harsh environment.
GINS3000 can output 3D attitude (yaw, roll and pitch) angles as well as acceleration, angular rage, magnetic strength, temperature, and heave, etc.
The system enjoys smal size, light weight, competitive price, and low power consumption, and high reliability. It has been widely used in unmanned aircraft, vehicle navigation, the surface craft, ship and so on.

Technical Specifications

– High Performance MEMS Inertial System with GPS/GLONASS Satellite Navigation System

– High Accuracy: Yaw: 0.5° (1σ), Attitude: 0.23° (1σ), Velocity <0.05~0.1m/s,

Position < 5m (L1/L2 single point), <8cm (RTK), Heave: <15cm (1σ)

– RS422 Interface, 100Hz Data Output Rate

– High Reliability, Strong Vibration Proof

– Advanced SkyMEMS Data Fusion Algorithm

Typical Application

GINS3000 GNSS/INS Integrated Navigation System is a high performance integrated navigation system, it enjoys high reliability, high stability in dynamic applications, which has been widely used in the following fields:
– Unmanned Aerial Vehicle
– Ship and Boat
– Vehicle Navigation
– Surface Craft

GINS3000 GNSS/INS Integrated Navigation System widely used in ship and boat

GINS3000 GNSS/INS Integrated Navigation System is high performance integrated navigation system, which has been widely used in  widely used in ship and boat.

GINS3000 GNSS/INS Integrated Navigation System widely used in unmanned aerial vehicle

GINS3000 GNSS/INS Integrated Navigation System is high performance integrated navigation system, which has been widely used in  widely used in unmanned aerial vehicle.

GINS3000 GNSS/INS Integrated Navigation System widely used in civil plane

GINS3000 GNSS/INS Integrated Navigation System is high performance integrated navigation system, which has been widely used in  widely used in civil planes.

Product Advantages

Why Selecting GINS3000 GNSS/INS Integrated Navigation System?
GINS3000 GNSS/INS Integrated Navigation System is designed and produced by SkyMEMS, it enjoys high performance and accuracy, and high reliability. It is a popular GNSS/INS system in the market, which has the main following advantages:



1. High Accuracy,High Performance and Powerful Functions

GINS3000 GNSS/INS Integrated Navigation System is a high performance integrated navigation system, which enjoys excellent technical advantages:
– High Performance MEMS Inertial System with GPS/GLONASS Satellite Navigation System
– High Accuracy: Yaw: 0.5° (1σ), Attitude: 0.23° (1σ),
Velocity <0.05~0.1m/s, Position < 5m (L1/L2 single
point), <8cm (RTK), Heave: <15cm (1σ)
– RS422 Interface, 100Hz Data Output Rate
– High Reliability, Strong Vibration Proof
– Advanced SkyMEMS Data Fusion Algorithm
GINS3000 GNSS/INS Integrated Navigation System adopts big brand components, advanced production craft, fully calibrated, advanced SkyMEMS algorithm, which assured that our products have real actual precise and perfect performance.



2. Aerospace Level Reliability, 12-step Strictest Quality Control

We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.



3. Competitive Price, ODM supported

With strict cost control and massive production, we can provide the most competitive cost effective prices, and we have abundant ODM service experience for customers around the world, that is why we can build up long term win-win cooperation with our customers.



4. Successful Applications in Tens of Fields, 300+ Customers are Using

We are continuously focusing on MEMS measurement & control technologies, and have developed the most advanced GNSS/INS Integrated Navigation System GINS3000 . and GINS3000 has been widely used in unmanned aerial vehicle, ship and boat, vehicle navigation, surface craft, civil plane, etc. and now more than 300 customers are using our GNSS/INS Integrated Navigation System around the world.



5. World-class Production Line, Fast Delivery

We have the world class production line to assure that the production procedures are scientific, precise and normative, which also can assure our products to be fast delivered.



6. Service with Heart, Professional Technical Support

We have the professional technical support engineer team, which can provide 24 hour technical support and excellent after-sale service.
Serving customers with heart is the principle of SkyMEMS, Customer demand is the fundamental driving force of our development.
We treat our customers with heart, customers’ satisfaction is the direction and target of SkyMEMS. Through co

FAQ

Q: How long is the delivery time of the products?
A: Usually we have stock for every type of products, if the product that you selected we have in stock, then we only need to re-test it before leaving the factory, so the delivery time is around 1~2 days; if we don’t have them in stock, then we need to arrange the production, the delivery time will be around 2 weeks. For the customer-oriented design products, our engineers will give the approximate delivery time according to the technical requirements.

Q: If needing to do the customer-oriented design product, what procedures will be followed?
A: If you want to do the customer-oriented design product, please contact with our pre-sale technical support engineer, or enter our ODM service in www.skymems.com, and write down the technical requirements online, our engineers will contact with u asap after we get your requirements. Then we will clarify the technical specs together, and confirm the customer requirements together, then start to do the sample developing.

Q: How about the payment conditions?
A: we accept 30% prepayment in advance, and the balance 70% payment before the delivery. For the customer-oriented design product, the payment will be discussed together.

Q: How long is the product warranty?
A: Usually, our product warranty is one year. If you want to have longer warranty period, please contact with your sales manager to buy longer warranty service. Our products enjoy very high quality, and its MTBF is more than 100000hours.

Q: How will we do if the product has the quality problem?
A: Our products have passed very strict tests before delivery, so it is very low probability to have quality problem. If our products have quality problem (not caused by man-made factors) in the warranty period, our factory will arrange the free repair. If the product can’t repair well, we will arrange to provide a new one. If the product is out of warranty time, we will provide the repair only charging the material cost.

Q: What fast express will be adopted during shipping?
A: we will select fast expresses such as DHL, UPS, FEDEX, TNT etc. according to customer’s requirements.
