INC1000 series inclinometer is high accuracy single or dual axis digital inclinometer with RS485 or RS232 output interfaces, it enjoys high accuracy: ±0.01° (room temperature) and has a wide range of options to cover a measurement range from ±5° to 360°. Adopting the latest MEMS technology, the product enjoys excellent performance in non-linearity, repeatability, temperature drift, noise, and shock resistance, and the product enjoys small size and low power consumption. And the inclinometer adopts big brand components and material, and the cable are qulified for continous outdoor use, and it is manufactured and calibrated in our own factory to guarantee performance and the real accuracy to the stated specification.
High accuracy digital inclinometers have revolutionized angle and slope measurements in industrial applications. These advanced devices offer unparalleled precision, outperforming traditional inclinometers. With accuracy up to 0.01 degrees compared to 0.1-0.5 degrees, they significantly improve measurement precision, making them essential in construction, mining, and aerospace. High accuracy inclinometers use sophisticated sensors and algorithms, with a wide measurement range and resistance to harsh environments. Their benefits include accurate measurements for building and aerospace industries, improved efficiency and productivity in manufacturing and mining, cost savings in oil and gas and wind energy industries, and increased safety in transportation and marine applications. Versatile and applicable in various industries, high accuracy inclinometers are recommended for industrial operators seeking accurate, reliable, and efficient measurements. Upgrade your applications today and embrace the future of measurement technology!
Adopting SkyMEMS proprietary algorithms, which reduce the non-linearity, cross errors, quadrantal error and installation error, which makes it one of the most competitive inclinometer in the world. And it enjoys high reliability and survivability in harsh environment and the working temperature is -40~85°C. It has been widely used in heavy engineering machinery, track gauge instrument, high building monitoring, bridge and dam monitoring, laser platform, etc.
INC1000 series inclinometer is high performance super accuracy MEMS-based inclinometer, which has been widely used in the following fields:
– High Speed Train Track Gauge Leveling
– Heavy Engineering Machinery
– High Building / Tower Monitoring
– Platform Stability
– Bridge / Dam Monitoring
– High Precision Laser Platform
INC1000 series inclinometer has been widely used in high speed train track gauge leveling
Railway track geometry quality has a decisive influence on the dynamic performance of the vehicle, and railway operating safety and passenger comfort depend to a large extent on the smoothness of the railway track, especially for high-speed railways. Our inclinometer has been widely used in the high speed train track gauge leveling applications.
SkyMEMS is dedicated in the design and manufacture of inclinometer sensors for measuring angles and have developed different series of inclinometers with different output interfaces.
We have many types of inclinometers with competitive price and performance levels suited forhigh speed train track gauge leveling applications.
INC1000 series inclinometer has been widely used in bridge and dam monitoring
Deflection of a bridge span under designed loads is an important parameter for bridge safety evaluation. However, it is inconvenient to obtain the bridge deflections directly. SkyMEMS offers a simple, practical and inexpensive method of measuring static and dynamic deflections of bridge spans under loads, even for bridge spans that traverse great heights. SkyMEMS inclinomters are widely used in bridge and dam monitoring, the inclinometers are installed on the bridge and dam directly, which increases measurement efficiency greatly.
INC1000 series inclinometer has been widely used in high precision laser platform
SkyMEMS have designed and produced different accuracy series of electronic inclinometers, INC6 series inclinometers are high performance inclinometers, which have been widely used in high precision laser platform.
All of our products are designed and manufactured by SkyMEMS to ensure quality and reliability. With bulk production, our prices are extremely competitive. And we also can provide custom service for customers to satisfy special requirements.
INC1000 series inclination sensors can be used in marine survey applications, such as in the navigation and control of underwater vehicles. The high accuracy and reliability of the sensors enable them to accurately measure the attitude and position of underwater vehicles, thus helping to improve the efficiency and accuracy of marine surveys and research.
The INC1000 series inclinometer can be applied in ocean measurement field, for instance, in navigation and control of underwater vehicles. Its high accuracy and reliability enables it to measure the attitude and position of underwater vehicles accurately, which helps to improve the efficiency and accuracy of marine surveying and research.
INC1000 series inclination sensors can also be used for heading control and attitude detection of aircraft, UAVs and other vehicles. The high speed response and low noise characteristics of the sensors can provide accurate attitude information to help aircraft maintain stability and make precise attitude adjustments.
The INC1000 series inclinometer can also be used for heading control and attitude detection of airplanes, drones, and other flying vehicles. The high-speed response and low-noise characteristics of the sensor can provide accurate attitude information, helping the flying vehicle to stay stable and make precise attitude adjustments.
The INC1000 series inclination sensors can also help orient solar panels. By measuring the direction and angle of solar irradiation, the sensor can control the orientation and tracking of solar panels to maximize the absorption of sunlight and increase the output efficiency of solar cells.
The INC1000 series inclinometer can also help to orient solar panels. By measuring the direction and angle of sunlight, the sensor can control the orientation and tracking of solar panels to maximize the absorption of sunlight, improving the output efficiency of solar cells.
Why Selecting INC1000 Series 0.01° Accuracy Inclinometer?
INC1000 Series 0.01° Accuracy Inclinometer is designed and produced by SkyMEMS, it enjoys high performance and real 0.005° accuracy, and high reliability. It is a competitive high accuracy inclinometer sensor in the market, which has the main following advantages:
1. High Accuracy, High Performance and Powerful Functions
INC1000 Series 0.01° Accuracy Inclinometer is designed and produced by SkyMEMS, it enjoys excellent technical advantages:

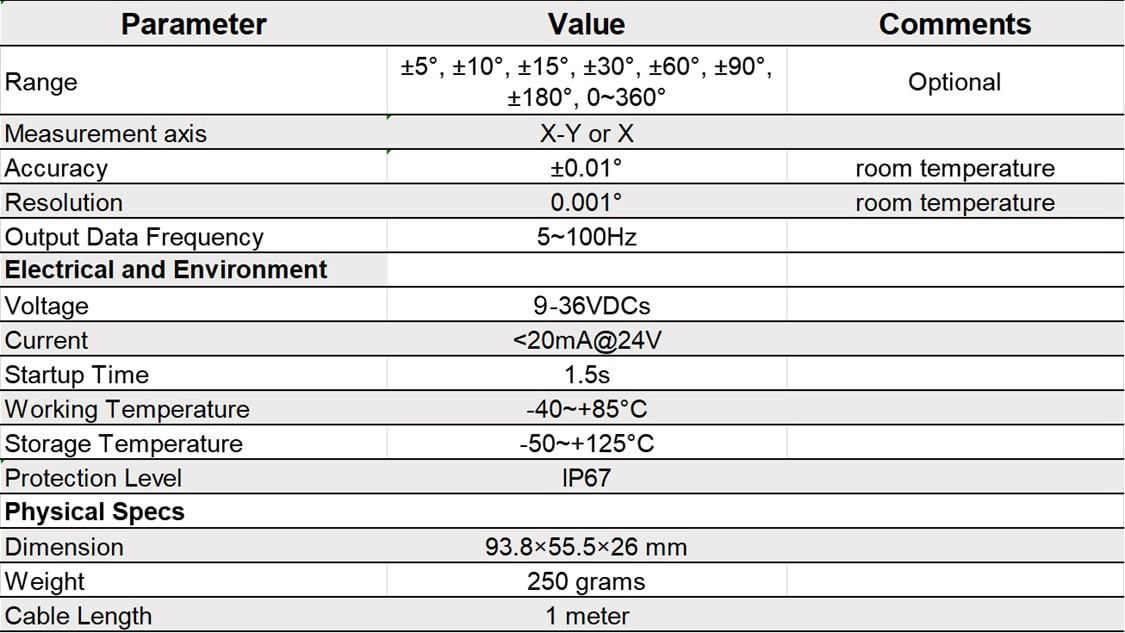

– Single/Dual Axis Measurement, Range from ±5 to 360°
– Accuracy: ±0.01°, Zero Point Drift: ±0.002o/oC
– Low Temp Drift, Optional Temperature Compensation
– Output interfaces: RS485, RS232(Optional)
– Wide Voltage Input:11~36V, IP67 Sealed
– Compact and Lightweight: 93.8×55.5×26 mm, 250grams
– Wide Working Temperature: -40°C~+85°C
INC1000 Series 0.01° Accuracy Inclinometer sensor adopts big brand components, advanced production craft, fully calibrated, advanced SkyMEMS algorithm, which assured that our products have real actual precise and perfect performance.
2. Aerospace Level Reliability, 12-step Strictest Quality Control
We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.
3. Competitive Price, ODM supported
With strict cost control and massive production, we can provide the most competitive cost effective prices, and we have abundant ODM service experience for customers around the world, that is why we can build up long term win-win cooperation with our customers.
4. Successful Applications in Tens of Fields, 1000+ Customers are Using
We are continuously focusing on MEMS measurement & control technologies, and have developed the most advanced and reliable 0.01° accuracy inclinometer INC1000 series. and INC1000 series inclinometer has been widely used in heavy engineering machinery, high speed train track gauge leveling, high building / tower monitoring, platform stability, bridge / dam monitoring, high precision laser platform, etc. and now more than 1000 customers are using our inclinometer around the world.
5. World-class Production Line, Fast Delivery
We have the world class production line to assure that the production procedures are scientific, precise and normative, which also can assure our products to be fast delivered.
6. Service with Heart, Professional Technical Support
We have the professional technical support engineer team, which can provide 24 hour technical support and excellent after-sale service.
Serving customers with heart is the principle of SkyMEMS, Customer demand is the fundamental driving force of our development.
We treat our customers with heart, customers’ satisfaction is the direction and target of SkyMEMS. Through continuously technology innovation and service upgrading, we will realize win-win cooperation with customers.
Q: How long is the delivery time of the products?
A: Usually we have stock for every type of products, if the product that you selected we have in stock, then we only need to re-test it before leaving the factory, so the delivery time is around 1~2 days; if we don’t have them in stock, then we need to arrange the production, the delivery time will be around 2 weeks. For the customer-oriented design products, our engineers will give the approximate delivery time according to the technical requirements.
Q: If needing to do the customer-oriented design product, what procedures will be followed?
A: If you want to do the customer-oriented design product, please contact with our pre-sale technical support engineer, or enter our ODM service in www.skymems.com, and write down the technical requirements online, our engineers will contact with u asap after we get your requirements. Then we will clarify the technical specs together, and confirm the customer requirements together, then start to do the sample developing.
Q: How about the payment conditions?
A: we accept 30% prepayment in advance, and the balance 70% payment before the delivery. For the customer-oriented design product, the payment will be discussed together.
Q: How long is the product warranty?
A: Usually, our product warranty is one year. If you want to have longer warranty period, please contact with your sales manager to buy longer warranty service. Our products enjoy very high quality, and its MTBF is more than 100000hours.
Q: How will we do if the product has the quality problem?
A: Our products have passed very strict tests before delivery, so it is very low probability to have quality problem. If our products have quality problem (not caused by man-made factors) in the warranty period, our factory will arrange the free repair. If the product can’t repair well, we will arrange to provide a new one. If the product is out of warranty time, we will provide the repair only charging the material cost.
Q: What fast express will be adopted during shipping?
A: we will select fast expresses such as DHL, UPS, FEDEX, TNT etc. according to customer’s requirements.
